IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Hanwha

SKU: SBP-302CM-12W

Hanwha SBP-302CM-12W 12" White Extension Pipe

12" white extension pipe with 1½" thread for Hanwha mounts
- Steel and aluminum construction withstands outdoor and indoor environments
- 1–2 inch cable opening keeps wiring hidden for clean installations
- Compatible with SBP-302CMA/B pendant mounts and white hanging systems
Special Order · Ships in 2-3 weeks

$65.00 $43.99 Save $21.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-302CMS

Hanwha SBP-302CMS Swivel Adapter for Pendant Mount

Full-rotation swivel adapter for Hanwha pendant mount cameras
- 360-degree swivel range adjusts camera angle without ceiling remount
- Weather-resistant construction rated for outdoor and industrial mounting
- Mechanical design—no power required, direct compatibility with Hanwha cameras
In stock · Ships same business day

$120.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1128FPW

Hanwha SHD-1128FPW Ceiling Flush Mount

Ceiling flush mount for Hanwha QND/XND cameras in drop-tile ceilings
- Ø160mm form factor fits standard T-bar grids without structural modification
- Aluminum enclosure with polycarbonate cover protects wiring and camera components
- Supports tile thickness 5–70mm with M25 and M20 conduit options
In stock · Ships same business day

$79.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-1408FPW

Hanwha SHD-1408FPW Ceiling Flush Mount for IP Dome Cameras

Recessed ceiling mount for 25+ Hanwha dome cameras with flush finish
- Three included trim rings adapt to different camera housings without extra purchases
- Seats directly into standard ceiling openings for clean, integrated appearance
- Compatible with XND, XNV, and HCV series Hanwha IP dome camera lines
In stock · Ships same business day

$125.00 $93.99 Save $31.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHD-3000F1

Hanwha SHD-3000F1 In-Ceiling Flush Mount

In-ceiling flush mount for 20+ Hanwha camera models
- Low-profile polycarbonate design blends into drop ceilings
- Compatible with SCD, SCV, SND, SNV, PNV, XNV series cameras
- Includes all mounting hardware and installation instructions
Special Order · Ships in 2-3 weeks

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHD-46VDE

Hanwha SHD-46VDE Flush Mount Door Mullion Lens Housing

Flush mount door frame housing for XNB-6001 camera discreet access control
- Recessed installation sits nearly plane with door mullion to minimize visual profile
- Silver satin finish blends with standard door hardware and trim finishes
- Dust and incidental contact protection rated for indoor -10°C to +55°C operation
In stock · Ships same business day

$150.00 $112.99 Save $37.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHP-1680F

Hanwha SHP-1680F In-Ceiling Flush Mount

Flush-mount ceiling housing for Hanwha XNP-6120H cameras
- 12" × 12" footprint fits standard ceiling tiles with integrated cable routing
- White finish matches typical office and retail ceilings for discreet placement
- Includes mounting hardware and installation manual for quick setup
Special Order · Ships in 2-3 weeks

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-T4680A

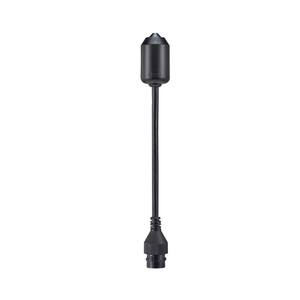

Hanwha SLA-T4680A 4.6mm Pinhole Lens Module 2MP

2MP pinhole lens module for covert surveillance in tight spaces
- 2MP 1920×1440 CMOS with 4.6mm fixed lens, 73° horizontal FOV
- 0.06 Lux minimum illumination operates in near-darkness without IR
- Compact Ø24×L49.8mm form factor with RJ12 connection to PNM-9000QB
In stock · Ships same business day

$215.00 $161.99 Save $53.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-T4680DS

Hanwha SLA-T4680DS 2MP Door Jamb Lens Module

2MP pinhole lens module for covert door jamb surveillance
- 2MP 1920×1080 resolution with 4.6mm pinhole lens for discreet entry monitoring
- 0.06Lux @ F2.5 sensitivity operates in low-light lobbies without IR assist
- 8-meter detachable cable with ±30° adjustment, XNB-6001 compatible only
In stock · Ships same business day

$270.00 $181.99 Save $88.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPB-IND12

Hanwha SPB-IND12 Smoked Dome Cover, Ivory

Smoked dome cover for Hanwha QND cameras, reduces glare indoors
- Smoked tint minimizes glare and reflections in bright lighting
- Compatible with QND-6010R, 6020R, 6030R, 7010R, 7020R, 7030R
- Ivory finish blends into indoor environments while protecting lens
Special Order · Ships in 2-3 weeks

$25.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPB-IND81V

Hanwha SPB-IND81V Smoked Dome Cover, Ivory

Smoked dome cover for Hanwha XND cameras, reduces glare and reflections
- Smoked tinted design cuts glare in variable lighting while maintaining camera discretion
- Compatible with XND-6080V, XND-6080RV, and XND-8080RV models
- Ivory finish and high-quality construction blend into indoor environments
Special Order · Ships in 2-3 weeks

$45.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPB-VAN71

Hanwha SPB-VAN71 Smoked Dome Cover

Smoked dome cover for XNV-6120/6120R with tool-free mount
- Obscures lens direction while maintaining image clarity for covert ops
- UV and weather-resistant polymer shields camera from dust and elements
- Quick-mount design installs without tools on Hanwha dome cameras
Special Order · Ships in 2-3 weeks

$80.00 $59.99 Save $20.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SPG-IND16B

Hanwha SPG-IND16B Black Cover

Matte black protective cover for Hanwha Q-mini cameras
- Snap-on design fits QND-6011, QND-6021, QND-8011, QND-8021 models
- High-quality material shields against dust, scratches, and minor impacts
- Tool-free installation blends into darker environments and modern spaces
In stock · Ships same business day

$25.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C7400

Hanwha SPP-C7400 Audio and Alarm Cable

Multi-conductor audio and alarm cable for 11 Hanwha camera models
- Dual audio transmission and alarm I/O routing in one cable run
- Pre-assembled connectors for quick installation across TNV, QNV, XNV, XND
- High-quality construction rated for indoor and outdoor surveillance setups
Special Order · Ships in 2-3 weeks

$45.00 $30.99 Save $14.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CB135B

Hikvision CB135B Wire Intake Box for Dome Camera

Weatherproof cable intake box for Hikvision dome cameras
- Aluminum alloy construction resists corrosion in outdoor environments
- Waterproof design protects connectors from moisture and debris ingress
- Compatible with DS-2CD23x5G1, DS-2CD23x7G1, and DS-2TD1217 series
In stock · Ships same business day

$24.00 $19.99 Save $4.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CPM-L

Hikvision CPM-L Ceiling Pendant Mount - Long

Long pendant mount for ceiling cameras with extended drop range
- Aluminum alloy construction resists corrosion in interior environments
- Extended length accommodates varied ceiling heights and sight lines
- Compatible with multiple pendant cap styles for flexible deployment
In stock · Ships same business day

$67.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SBP-302CM-12W 12" White Extension Pipe

Hanwha SBP-302CMS Swivel Adapter for Pendant Mount

Hanwha SHD-1128FPW Ceiling Flush Mount

Hanwha SHD-1408FPW Ceiling Flush Mount for IP Dome Cameras

Hanwha SHD-3000F1 In-Ceiling Flush Mount

Hanwha SHD-46VDE Flush Mount Door Mullion Lens Housing

Hanwha SHP-1680F In-Ceiling Flush Mount

Hanwha SLA-T4680A 4.6mm Pinhole Lens Module 2MP

Hanwha SLA-T4680DS 2MP Door Jamb Lens Module

Hanwha SPB-IND12 Smoked Dome Cover, Ivory

Hanwha SPB-IND81V Smoked Dome Cover, Ivory

Hanwha SPB-VAN71 Smoked Dome Cover

Hanwha SPG-IND16B Black Cover

Hanwha SPP-C7400 Audio and Alarm Cable

Hikvision CB135B Wire Intake Box for Dome Camera

Hikvision CPM-L Ceiling Pendant Mount - Long

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
