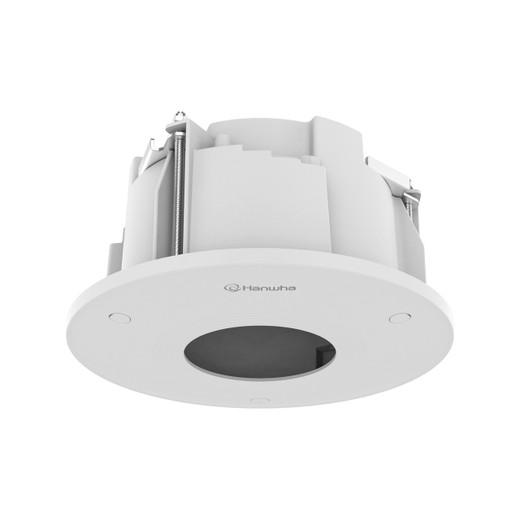

Hanwha SHD-1408FPW Ceiling Flush Mount for IP Dome Cameras
The Hanwha SHD-1408FPW is a purpose-built ceiling flush mount designed to integrate Hanwha IP dome cameras into recessed ceiling openings without surface-mounted brackets or visible hardware. This matters because visible mounts draw attention and detract from the professional appearance expected in offices, retail, and institutional settings — a real concern when camera placement is meant to be discreet rather than obvious. The SHD-1408FPW addresses this directly by seating the camera body flush against the ceiling tile or drywall opening, creating a clean, integrated look.
Key Features
- 25+ Compatible Hanwha Camera Models: Supports XND, XNV, and HCV series dome cameras — a broad range that covers most current Hanwha deployments. This eliminates the need to source separate mounts for different camera lines within the same organization, reducing procurement overhead and simplifying spares management.
- Three Included Trim Rings: The mount ships with three trim rings of different sizes, allowing rapid adaptation to camera housings and frame variations across compatible models. No additional hardware purchases needed for most deployments — you choose the correct ring for your camera model and install without delays.

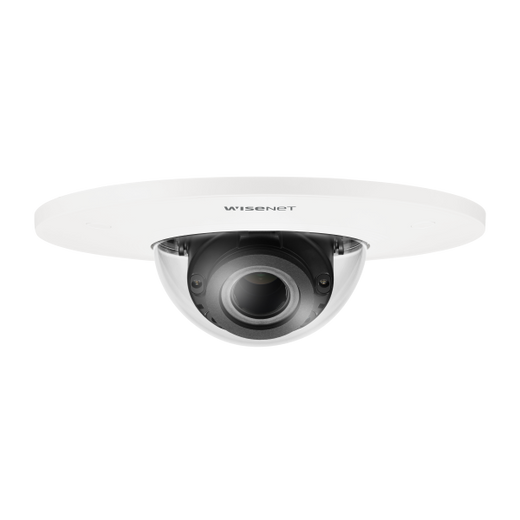

- Flush Ceiling Installation: The mount seats cameras directly into recessed ceiling openings (standard 4x4 inch grid or similar), eliminating the protruding hardware typical of pendant mounts. The result is a finished appearance that blends into the ceiling environment rather than announcing surveillance presence.
- White Finish: The neutral white color matches standard drop-ceiling materials and most ceiling paint finishes, minimizing visual contrast. In environments where aesthetics matter — corporate lobbies, retail sales floors, bank branch interiors — this detail matters to stakeholders evaluating camera deployment acceptance.
- Secure Camera Positioning: The mount provides stable mechanical support for dome camera bodies during installation and long-term operation, eliminating flex or vibration that could affect image quality or create noise from movement.
- Integration with Hanwha Catalog: Works with documented Hanwha series including XND-6080RV, XND-6080V, XND-8080RV, XNV-6010, XNV-6020R, XNV-8020R, XNV-8030R, XNV-8040R, HCV-6070R, HCV-6080R, HCV-7010R, HCV-7010RA, HCV-7020R, HCV-7020RA, HCV-7030RA, and HCV-7070R models — all without requiring field modifications or third-party adapters.
Installation & Deployment Context
Choose the SHD-1408FPW (often searched as SHD 1408FPW) when deploying Hanwha dome cameras in drop-ceiling or recessed ceiling environments where flush mounting is either required by the facility or preferred for aesthetic reasons. Typical applications include corporate office surveillance, retail showrooms, institutional buildings, bank branches, and healthcare facilities where ceiling-mounted coverage is needed but visible mounting hardware is discouraged. The three included trim rings eliminate guesswork during installation — you simply match your camera model to the correct ring size and mount directly into ceiling openings.
If you are deploying cameras in surface-mounted applications (exterior walls, corner mounts, pendant drops from exposed beams), this mount is not the right choice; consider a wall-mount or pendant bracket instead. Similarly, if your facility uses exposed grid ceilings or open construction, flush mounting is not feasible — surface mounts will be more practical.
Frequently Asked Questions
Q: Which Hanwha camera models work with the SHD-1408FPW?
A: The mount is compatible with over 25 Hanwha dome camera models across the XND, XNV, and HCV series. Specific models supported include XND-6080RV, XND-6080V, XND-8080RV, XNV-6010, XNV-6020R, XNV-8020R, XNV-8030R, XNV-8040R, HCV-6070R, HCV-6080R, HCV-7010R, HCV-7010RA, HCV-7020R, HCV-7020RA, HCV-7030RA, and HCV-7070R, among others. Three trim rings are included to accommodate different camera housing footprints.
Q: What is included with the SHD-1408FPW?
A: The mount ships with three trim rings of different sizes to accommodate various compatible camera models and ceiling opening dimensions. No additional trim ring kits are required for standard deployments.
Q: Can the SHD-1408FPW be used in outdoor or wet ceiling environments?
A: This is an indoor ceiling mount designed for standard drop-ceiling or recessed interior ceiling applications. It is not rated for outdoor, wet, or high-humidity environments. For exterior or wet-location deployments, specify an outdoor-rated wall mount or pendant bracket instead.
Q: Does the SHD-1408FPW require any special tools or expertise to install?
A: Installation into standard recessed ceiling openings is straightforward — no specialized tools are required beyond basic hand tools. Follow the included mounting template to position the mount, secure it to the ceiling structure (drywall, tile grid, or framing), and attach your camera using the correct trim ring. A technician familiar with basic ceiling work can complete installation in a few minutes per unit.
Q: Can I use the SHD-1408FPW with non-Hanwha camera brands?
A: No. The SHD-1408FPW is designed specifically for Hanwha dome camera mounting. Use of non-Hanwha cameras may result in improper fit, misalignment, or lack of mechanical support. Verify camera compatibility against the supported model list before ordering.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1408FPW is a straightforward accessory, but it solves a real problem in modern office and retail surveillance: visible ceiling hardware looks unprofessional and telegraphs camera presence to occupants. If you're rolling out cameras across a corporate campus or multi-location retail chain where stakeholders care about aesthetics, flush mounting makes the difference between an installation that blends in and one that provokes questions. The inclusion of three trim rings means you're not scrambling to source separate adapters for different camera models across your Hanwha IP camera lineup.
Technical Highlights:
- Three Trim Rings for Model Variance: Hanwha's XND, XNV, and HCV dome series have slight housing dimension differences across the product line. Rather than stocking separate mounts per model, the SHD-1408FPW includes three ring sizes that adapt the mounting interface to fit 25+ camera models. This reduces your parts inventory and speeds deployment when installing different camera types in the same facility.
- Clean White Finish Matches Standard Ceilings: Most commercial drop-ceiling grids and painted ceilings are white or light gray. The SHD-1408FPW's white finish minimizes visual contrast, so the camera sits invisibly within the ceiling plane rather than standing out as obvious surveillance hardware.
- Flush Installation Eliminates Pendant Protrusion: Pendant mounts hang 3–6 inches below the ceiling; flush mounts seat the camera body directly into the ceiling opening. For applications where sightlines matter—retail showrooms, bank lobbies, boardrooms—this detail is the difference between discreet coverage and obvious monitoring.
Deployment Considerations:
- Verify your ceiling structure supports recessed mounting: standard drop-ceiling grids or drywall ceilings work well. Exposed beam construction or solid concrete ceilings require different mounting approaches.
- The SHD-1408FPW is interior-only. Outdoor or high-humidity spaces require weather-rated mounts; this accessory will degrade if exposed to moisture or temperature extremes.
Deploy the SHD-1408FPW in corporate offices, retail locations, bank branches, and healthcare facilities where Hanwha dome cameras need to integrate seamlessly with the ceiling environment rather than announce their presence. The three included trim rings eliminate delays and compatibility guesswork across your camera model mix.
