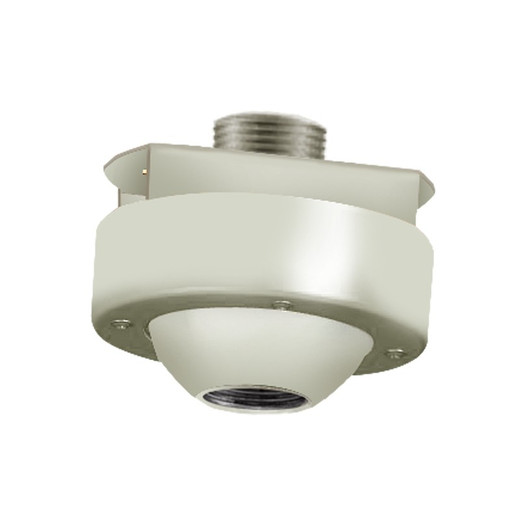

Hanwha SBP-302CMS Swivel Adapter for Pendant Mount
Overview
The Hanwha SBP-302CMS is a mechanical swivel adapter designed to extend the positioning capability of Hanwha pendant mount cameras. If your facility layout requires camera angles to shift without replacing the entire mount infrastructure — or if you need to optimize sightlines after installation — this adapter bridges that gap by adding full rotational freedom to a fixed pendant installation.
Key Features
- 360-Degree Swivel Range: Allows unlimited rotational positioning so you can adjust camera angle up or down, side to side, or rotate the entire body without returning to the ceiling to remount hardware. Saves reinstallation labor and downtime if warehouse layouts or retail zones shift.
- Purpose-Built for Hanwha Cameras: Engineered specifically for Hanwha pendant mount camera systems, ensuring mechanical fit and load-bearing compatibility without adapter wobble or misalignment that would degrade image stability.
- Durable Materials: Constructed from sturdy, weather-resistant materials that perform in outdoor, semi-outdoor, and industrial environments — important if you're mounting on a covered loading dock, warehouse exterior, or facility perimeter where temperature swings and humidity are factors.
- Maintains Pendant Mounting Advantage: Pendant mounts keep cabling and connectors hidden above drop ceilings and architectural elements, reducing cable run visibility and clutter. The SBP-302CMS preserves that clean look while adding angle flexibility.
- No Power or Intelligence Required: This is purely mechanical — no electronics, no power draw, no configuration needed. Swivel action is manual, making it fail-safe and suitable for passive surveillance zones where you may not need active repositioning.
- Simplifies Coverage Adjustments: Instead of removing the camera and remounting at a different angle, loosen the swivel, rotate to the desired position, and re-tighten. Reduces installation time and camera downtime on adjustments.
Integration & Compatibility
The SBP-302CMS is compatible exclusively with Hanwha pendant mount camera models. Before ordering, confirm your camera model is listed in the Hanwha pendant mount family. If you're retrofitting an existing pendant installation, the adapter installs between the ceiling fixture and the camera body — no modifications to existing wiring or power delivery required. The adapter does not affect electrical connections, PoE delivery, or any network functionality of the camera itself.
For larger deployments spanning multiple zones or buildings, consider how many pendant positions may need angle adjustment over the system's lifetime. The cost of swivel adapters at key positions is typically far lower than the labor to repeatedly remount fixed pendant cameras.
When to Choose a Different Approach
If your cameras are already wall-mounted or mounted on fixed brackets, the SBP-302CMS will not retrofit to those systems — it is pendant-specific. If you need motorized pan-tilt-zoom repositioning (remotely controlled via software), look instead to PTZ camera systems, though these carry higher cost and power requirements. The SBP-302CMS is ideal for installations where angle adjustment is occasional and manual, not continuous or remote.
Deployment Context
Retail and warehouse facilities with modular layouts benefit most — a swivel pendant adapter lets you shift coverage angles when merchandise displays, shelving, or checkout zones are reconfigured without rerouting cable or swapping hardware. Industrial facilities with outdoor canopy areas often use pendant mounts to keep cables concealed; adding swivel capability here ensures you can fine-tune sightlines without a second site visit. Public spaces (lobbies, corridors, parking structures) where ceiling height and geometry favor pendant routing can use the SBP-302CMS to compensate for obstructed angles caused by pillars, signage, or HVAC equipment.
Frequently Asked Questions
Q: Will the SBP-302CMS work with non-Hanwha pendant mount cameras?
A: No. The adapter is engineered for Hanwha pendant mount camera systems only. Using it with other brands risks mechanical misalignment, load-bearing failure, or camera drop.
Q: Does the swivel require power or batteries?
A: No. The SBP-302CMS is fully mechanical. Swivel action is entirely passive and manual — no power or configuration required.
Q: Can I adjust the swivel angle remotely or via software?
A: No. The adapter is passive. Angle adjustment must be done manually at the mount location. For remote pan-tilt control, you would need a motorized PTZ camera system instead.
Q: What is the maximum load the swivel can support?
A: The SBP-302CMS is rated for Hanwha pendant mount camera weights. Refer to your specific camera model's documentation for exact load specifications, or contact the manufacturer to confirm compatibility with your camera's weight and mounting configuration.
Q: Can the SBP-302CMS be installed on an existing pendant mount without removing the camera?
A: Installation requires brief camera removal and power-down to mount the adapter between the ceiling fixture and camera body. Plan a small maintenance window, typically 10–15 minutes per camera.
Q: Is outdoor use supported?
A: Yes. The SBP-302CMS is built with durable, weather-resistant materials suitable for outdoor and semi-outdoor pendant installations, including covered loading docks and canopy areas.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-302CMS swivel adapter solves a real problem on retrofit and modular deployments: fixed pendant mounts are mechanically clean but positionally rigid. Once the camera is locked in, angle adjustments mean climbing scaffolding or lifts. A 360-degree swivel mechanism eliminates that friction, and because it's fully mechanical, there's no failure mode beyond normal wear — no electronics to calibrate, no firmware updates, no cybersecurity surface.
Deployment Strengths:
- Mechanical Simplicity: No power, no electronics — swivel is manual and fail-safe. Ideal for facilities where simplicity and redundancy matter more than remote control.
- Pendant Mount Preservation: Hanwha pendant systems keep cable runs hidden and professional-looking. The SBP-302CMS adds angle freedom without breaking that aesthetic or requiring new cabling runs.
- Weather Resistance: Durable construction handles outdoor canopy and semi-outdoor mounting, common in warehouse perimeter and loading zone applications.
Watch-Outs:
- Brand Lock-In: The SBP-302CMS is Hanwha-specific. If you're mixing camera vendors across zones, you'll need brand-matched adapters for each platform — budget accordingly.
- Manual Adjustment Only: If you need frequent remote angle repositioning (e.g., tracking a threat across a facility or adjusting sightlines via VMS), a motorized PTZ system is the better choice. Swivel adapters are 'set and forget.'
- Load Verification Required: Confirm your specific Hanwha camera model's weight against the SBP-302CMS load rating before deploying. Pendant systems are overhead — load mismatches are a safety issue, not just a compatibility issue.
Best Fit: Retail environments with seasonal floor-plan changes, warehouse facilities adding or shifting zones, and industrial outdoor canopies where angle fine-tuning happens once or twice per year. The SBP-302CMS is not a PTZ substitute — it's a labor-saving mechanical fixture for installations where one-time or infrequent adjustment justifies a simple swivel over the cost and power overhead of motorized repositioning.
