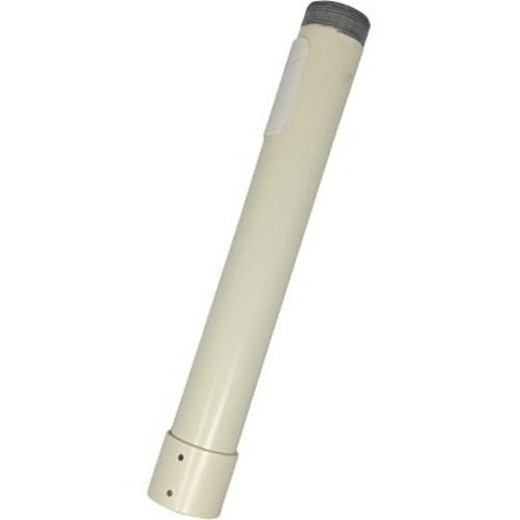

Hanwha SBP-302CM-12 Extension Pipe for Hanging Mounts
Overview
The Hanwha SBP-302CM-12 is a 12-inch extension pipe designed to expand camera placement flexibility in surveillance installations where standard mounting hardware cannot reach. Built from aluminum and steel, this accessory integrates directly with all Hanwha hanging mounts, enabling installers to position cameras at angles, heights, and distances required for comprehensive coverage in complex environments.
Extension pipes solve a common deployment challenge: structural limitations. When a camera needs to sit 12 additional inches away from a beam, soffit, or wall to clear obstacles or achieve the correct sightline, this accessory eliminates the need for custom fabrication or workaround solutions. In retail, parking structures, industrial facilities, and multi-story buildings, that 12-inch reach often makes the difference between adequate and optimal coverage.
Key Features & Deployment Benefits
- 12-Inch Length: Provides 12 inches of extended reach from mounting surface to camera — enough to clear eaves, canopies, structural elements, or overhead obstructions without requiring non-standard rigging. Eliminates mounting position compromises in tight spaces.
- Aluminum and Steel Construction: Dual-material design balances weight and structural rigidity. Aluminum reduces overall pipe mass (critical when mounting cameras on ceiling or overhead structures where weight-bearing capacity is limited), while steel reinforcement maintains load-bearing capacity under camera and bracket weight — especially important for pan-tilt-zoom (PTZ) cameras or multi-camera head assemblies that exceed 5 lbs.
- Universal Hanwha Hanging Mount Compatibility: Works with the complete Hanwha hanging mount catalog — no adapter plates, no drilling custom holes. Drop-in fit streamlines installation time and reduces field troubleshooting. This cross-compatibility means the SBP-302CM-12 is a reusable component across multiple Hanwha camera deployments.
- Weather-Resistant Materials: Aluminum does not rust in outdoor or corrosive indoor environments (chemical plants, salt-spray coastal areas, high-humidity warehouses). Steel components are typically galvanized or stainless, extending service life in harsh conditions. No coating touch-ups or annual maintenance required.
- Professional-Grade Engineering: Precision-machined connection points ensure vibration-free camera stability. Loose or corroded mount interfaces lead to drift in PTZ systems and image blur in long-focal-length lenses; tight tolerances prevent that degradation over time.
- Modular Design: Extension pipes can be stacked or combined with other Hanwha mounting accessories if greater reach is needed — allows custom configurations without procurement delays for special-order hardware.
Typical Deployment Scenarios
Retail: Mount cameras above suspended ceiling grids or drop ceilings where direct-to-beam attachment would block them. Parking Structure: Extend coverage over vehicle rows without mounting directly to overhead deck (avoids cable runs along structural surfaces). Industrial: Position thermal or box cameras away from machinery vibration sources. Warehouse: Hang PTZ cameras in aisles with tall racking, where the 12-inch extension reaches over shelf edges to monitor product or movement below. Multi-Story: Stack multiple pipes for 24+ inch reach in high-ceiling environments.
Integration & Compatibility
The SBP-302CM-12 (often searched as SBP 302CM 12) attaches directly to Hanwha hanging mount base plates. No adapters needed. Compatible with indoor and outdoor Hanwha IP cameras mounted via hanging systems — verify your specific camera model's recommended mount weight rating before deployment.
Frequently Asked Questions
Q: Can I use the SBP-302CM-12 with non-Hanwha hanging mounts?
A: No. This extension pipe is engineered for Hanwha hanging mount interfaces only. Using it with third-party mounts risks misalignment and instability.
Q: What is the maximum camera weight the SBP-302CM-12 can support?
A: Load capacity depends on your mounting surface (beam strength, fastener grade, installation technique) and the hanging mount model. Consult the hanging mount datasheet for maximum supported camera weight. The pipe itself adds minimal structural load.
Q: Is the SBP-302CM-12 suitable for outdoor installations?
A: Yes. Aluminum and steel construction withstands outdoor weathering. Ensure the hanging mount itself is rated for outdoor use, as the extension pipe is weather-resistant but not the weakest link in the chain.
Q: Can I stack multiple SBP-302CM-12 pipes for longer reach?
A: Modular design supports stacking. However, each additional pipe increases lever arm and can amplify camera sway in wind or vibration. Verify total extension does not exceed your mounting surface's load capacity or the hanging mount's rated reach limit.
Q: What fastening method connects the pipe to the hanging mount?
A: Connection uses standard Hanwha hanging mount interface — typically precision bolts or bayonet-lock style attachment. Refer to your specific hanging mount manual for assembly steps.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-302CM-12 is a straightforward but essential piece of mounting infrastructure. At 12 inches, it bridges the gap between a camera's ideal sightline and the structural reality of most installations. I've seen too many deployments where a camera sits 6 inches too close to a surface, losing coverage or fighting glare — this pipe solves that in one component.
Technical Highlights:
- Aluminum + Steel Composition: The hybrid construction keeps weight down — critical when mounting to existing beam or soffit infrastructure that may already be at or near load capacity — while steel reinforcement ensures the pipe won't flex or sag under a heavy PTZ camera or long-lens turret. Real-world benefit: no image drift or vibration artifacts after six months of thermal cycling and building movement.
- 12-Inch Standard Length: Not arbitrary. In most retail and warehouse environments, a 12-inch extension clears common obstructions (HVAC ducts, sprinkler lines, suspended grid rails) without requiring multiple units. Beyond 12 inches, you're either stacking pipes (introducing leverage problems) or custom-ordering from the manufacturer. This length hits the sweet spot for 80% of retrofit jobs.
- Universal Hanging Mount Compatibility: Any Hanwha hanging mount in your catalog will bolt directly to the SBP-302CM-12. No SKU multiplication, no adapter inventory. From a logistics perspective, this means one part number for dozens of camera models and mounting configurations.
Deployment Considerations:
- Extension pipes amplify mechanical advantage: a camera 12 inches out from the mount point creates a cantilever load roughly 2–3x higher than direct mounting. Verify your beam attachment hardware (bolts, anchors, adhesive) is rated for the calculated moment load. Many installers underestimate this and end up with slow sag over a heating season.
- Wind loading: outdoor installations in exposed areas (parking lots, rooftop perimeters) can induce sway in any extension. Aluminum and steel rigidity helps, but if your camera is a 2+ lb PTZ unit sitting 12 inches out in a 20-mph environment, you may observe slow oscillation. Consider internal vibration damping or oversizing fasteners if exposure is high.
- Access and alignment: once bolted and bracketed, the camera becomes harder to adjust. Mount and focus off the bench, not hanging 10 feet in the air. Mistakes cost labor time.
Deploy the SBP-302CM-12 when standard hanging mounts won't reach, and your structural constraints force offset positioning. It's not a universal solution — some jobs need custom fabrication or a different mounting style entirely — but for Hanwha camera systems in retail, parking, and industrial environments, this is the right part to have in stock.
