IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Axis

SKU: 5900-161

Axis T98A16-VE Outdoor Surveillance Cabinet - 5900-161

IP66/IK10 outdoor cabinet with integrated camera mount for harsh environments
- IP66 dust-tight, IK10 impact-rated enclosure protects equipment in extreme weather
- Integrated door-mount system and wall/DIN-rail brackets for quick multi-camera setup
- NEMA 4X corrosion resistance for coastal and chemically aggressive deployments
In stock · Ships same business day

$366.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5900-171

Axis T98A17-VE Surveillance Cabinet Enclosure - 5900-171

IP66/IK10 outdoor cabinet for P33-VE/-LVE camera mounting
- IP66 dust-tight, high-pressure water jet protection for coastal/harsh sites
- IK10 impact rating withstands 20-joule vandal strikes without failure
- Door-mount bracket integrates AXIS P33-VE/-LVE series cameras directly
In stock · Ships same business day

$366.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02281-001

Axis TD4601 Conduit Bracket Cable Management - 02281-001

Conduit bracket for organized cable routing in Axis camera systems
- IP66/IP67 rated, durable construction handles indoor and outdoor exposure
- Includes mounting hardware and instructions for pole, corner, and junction box
- IK11 impact rating protects cables in high-vibration or mechanical stress areas
In stock · Ships same business day

$45.35 $43.99 Save $1.36

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02588-001

Axis TM2801 M20 Camera Weathershield Kit - 02588-001

All-weather shield for M20 cameras with glare reduction
- Tool-free mount protects against rain, snow, dust, and sunlight
- Reduces glare and reflections to improve image clarity outdoors
- Durable construction designed for M20 series camera compatibility
Special Order · Ships in 2-3 weeks

$91.74 $88.99 Save $2.75

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02427-001

Axis TM5601 In-Ceiling Conduit Back Box - 02427-001

White conduit back box for Axis M5000-G ceiling mounting
- In-ceiling recessed or surface mount with stable mechanical platform
- Indoor rated; white finish blends with suspended ceiling installations
- Compatible with Axis M5000-G series IP cameras; includes installation manual
In stock · Ships same business day

$69.06 $66.99 Save $2.07

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02359-001

Axis TQ1808-VE Aluminum Surveillance Cabinet - 02359-001

Aluminum cabinet with IP66 weather sealing for outdoor surveillance gear
- IP66-rated dust and spray protection keeps equipment dry in rain and snow
- Aluminum construction resists corrosion in coastal and wet environments
- Padlock-eye latching with secure mounting for wall or pole installation
In stock · Ships same business day

$417.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02231-001

Axis TQ8809-E Wiper Kit with 4 Spare Blades - 02231-001

Lens wiper for Axis PTZ cameras—clears rain, snow, and debris
- Includes wiper unit, 4 spare blades, mounting hardware, and guide
- Quick-swap blade design minimizes downtime between replacements
- Durable outdoor-rated construction handles harsh weather conditions
Special Order · Ships in 2-3 weeks

$129.89 $125.99 Save $3.90

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02270-001

Axis TU1001-V Professional Audio Microphone - 02270-001

Compact audio input for network surveillance with 73.4 dB SNR
- Hemispherical pickup pattern captures broad audio across monitoring zones
- 20 Hz–20 kHz frequency response with 118.7 dB max SPL for loud environments
- 3.5 mm stereo connection, runs on 2–10 V DC at 0.006 W max consumption
Special Order · Ships in 2-3 weeks

$162.88 $157.99 Save $4.89

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02267-001

Axis TU6005 20m Plenum Interconnect Cable - 02267-001

20m plenum-rated cable for Axis F-Series modular camera systems
- Plenum-rated for HVAC plenums and air-return spaces; NEC compliant
- 20 meters (65 feet) spans distributed sensor and main units
- 32mm minimum bend radius routes through conduit and cable trays
In stock · Ships same business day

$217.52 $210.99 Save $6.53

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02795-021

Axis TU6009 6-PIN Connector 10-Pack - 02795-021

6-PIN connectors for Axis F91 I/O expansion, 10-pack
- Up to 4 configurable input/output channels per connector
- 6-PIN form factor designed specifically for Axis F91 main units
- Rated for indoor and outdoor use in surveillance deployments
Special Order · Ships in 2-3 weeks

$30.92 $29.99 Save $0.93

Add to Cart
The item has been added
Compare

Out of stock
Digital Watchdog

SKU: DWC-D1WMW

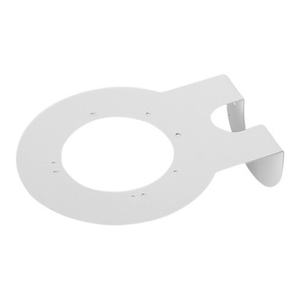

Digital Watchdog DWC-D1WMW Wall Mount Bracket White

Wall mount bracket for Digital Watchdog dome cameras in white
- Compatible with Digital Watchdog surveillance camera models
- Multiple positioning holes allow flexible angle adjustment
- Durable construction with all necessary mounting hardware included
Special Order · Ships in 2-3 weeks

$26.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-200HMW

Hanwha SBP-200HMW White Cap Adapter

White cap adapter for Hanwha cameras, indoor & outdoor rated
- Weather-resistant design handles rooftop and exterior wall installations
- White finish matches ceilings and walls for discrete multi-camera deployments
- Versatile cap adapter form factor supports ceiling, wall, and pendant mounting
In stock · Ships same business day

$49.00 $32.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-300B

Hanwha SBP-300B Wall Mount Base, Ivory

Ivory wall mount base for Hanwha SBP-300WM/WM1 cameras
- Discreet ivory finish blends into retail, office, and educational spaces
- Precision engineering eliminates wobble for stable, drift-free positioning
- Indoor/outdoor rated construction—no separate mounts needed for relocations
In stock · Ships same business day

$89.00 $66.99 Save $22.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-300HM5

Hanwha SBP-300HM5 Aluminum Hanging Mount

Aluminum ceiling mount for 8 Hanwha camera models across SNF, PNF, XNF
- Works with SNF-8010, PNF-9010R, XNF-8010R and their variants—one mount, multiple series
- Aluminum construction keeps structural load minimal on ceiling infrastructure
- Compatible with SBP-300CM, SBP-300LM, SBP-300WM brackets for flexible reconfiguration
In stock · Ships same business day

$49.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-300LM

Hanwha SBP-300LM Parapet Mount, Ivory

Parapet mount for perimeter surveillance on building edges
- Aluminum construction resists corrosion in outdoor and indoor climates
- 1 1/2" female thread supports compact to mid-sized cameras up to 3 lbs
- Ivory finish blends with modern and traditional building facades
In stock · Ships same business day

$395.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-300WM1

Hanwha SBP-300WM1 PTZ Wall Mount

3-axis wall mount for PTZ cameras—pan, tilt, rotation in one bracket
- 3-axis adjustment (pan, tilt, rotation) lets you dial viewing angles without reinstall
- Works indoors and outdoors; aluminum construction handles environmental stress
- Compatible with six Hanwha PTZ models; tool-free or minimal-tool installation
In stock · Ships same business day

$79.00 $59.99 Save $19.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Axis T98A16-VE Outdoor Surveillance Cabinet - 5900-161

Axis T98A17-VE Surveillance Cabinet Enclosure - 5900-171

Axis TD4601 Conduit Bracket Cable Management - 02281-001

Axis TM2801 M20 Camera Weathershield Kit - 02588-001

Axis TM5601 In-Ceiling Conduit Back Box - 02427-001

Axis TQ1808-VE Aluminum Surveillance Cabinet - 02359-001

Axis TQ8809-E Wiper Kit with 4 Spare Blades - 02231-001

Axis TU1001-V Professional Audio Microphone - 02270-001

Axis TU6005 20m Plenum Interconnect Cable - 02267-001

Axis TU6009 6-PIN Connector 10-Pack - 02795-021

Digital Watchdog DWC-D1WMW Wall Mount Bracket White

Hanwha SBP-200HMW White Cap Adapter

Hanwha SBP-300B Wall Mount Base, Ivory

Hanwha SBP-300HM5 Aluminum Hanging Mount

Hanwha SBP-300LM Parapet Mount, Ivory

Hanwha SBP-300WM1 PTZ Wall Mount

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
