Axis TU1001-V Professional Audio Microphone - 02270-001

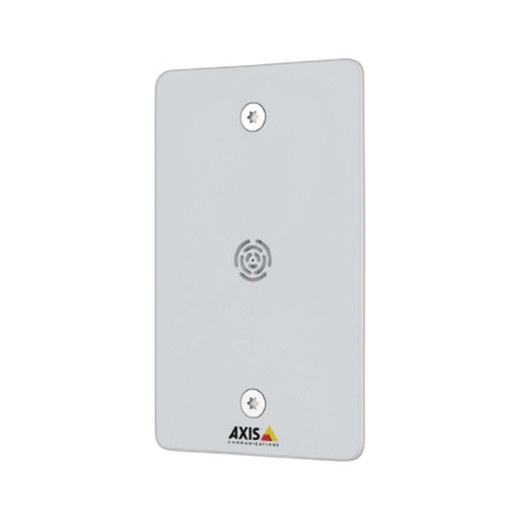

Axis TU1001-V Microphone Audio Capture Device

The Axis TU1001-V Microphone (SKU: 02270-001) is a professional-grade audio input device engineered for seamless integration with Axis network products that support microphone connectivity. Designed for security and surveillance applications requiring synchronized audio capture, this compact microphone delivers reliable sound recording across diverse operational environments.

Key Features

• Hemispherical directionality for broad audio pickup across monitoring zones
• Wide frequency response spanning 20 Hz–20 kHz for full-spectrum audio capture
• High signal-to-noise ratio of 73.4 dB A-weighted for clean audio clarity
• Maximum sound pressure level of 118.7 dB (10% THD) for loud environment tolerance
• Compact aluminum casing (NCS S 9002–B) with robust construction
• Low-power operation: 2–10 V DC, maximum 0.006 W consumption
• PVC-free, sustainable design
• Standard 3.5 mm stereo plug for easy connectivity
• Extended temperature range: –20 °C to 60 °C operating; –40 °C to 70 °C storage
• IK10 impact resistance and EMC/FCC compliance

Technical Specifications

The microphone delivers sensitivity of –30.8 dB ±3 dB (relative 1 kHz) and operates reliably across humidity levels from 0–85% RH (non-condensing). Its compact form factor—114 mm height, 70 mm width, and 14 mm depth—allows discreet mounting in surveillance installations. The included 150 mm cable with 2.9 mm diameter provides flexible positioning options. Weighing just 73 grams, it adds minimal load to mounting structures.

Applications

Ideal for retail environments, office buildings, transportation hubs, and secure facilities requiring synchronized audio and video surveillance. The hemispherical pickup pattern makes it suitable for entrance monitoring, conference room recording, and area surveillance where ambient sound documentation is critical for security investigations.

Compliance & Support

Fully compliant with EMC EN 55035, FCC Part 15 Subpart B Class B, Safety IEC/EN 62368-1, and Environmental IEC/EN 62262 standards. Backed by a 3-year warranty and supported in 12 languages. Optional AXIS Audio Extension Cable B (5 m) and Terminal Block to 3.5 mm Audio Extender available for extended installation flexibility.
