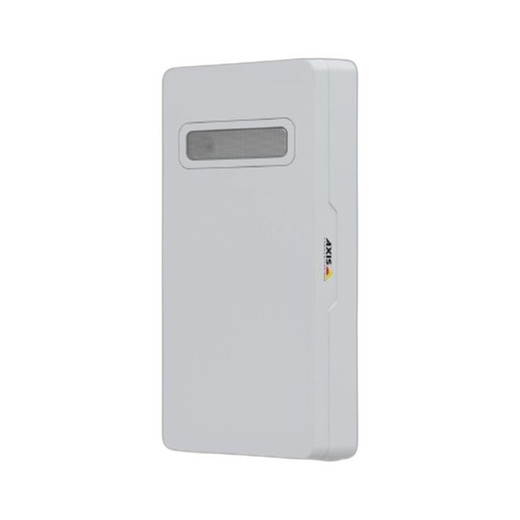

Axis TU1002-VE Professional Microphone Kit - 02082-001

Axis TU1002-VE Microphone Kit Audio Accessory

The Axis TU1002-VE Microphone Kit (02082-001) is a professional-grade audio capture solution designed for integration with Axis network audio systems, particularly the AXIS C8110 Network Audio Bridge. This compact microphone kit delivers studio-quality audio monitoring and recording for security and communication applications in demanding environments.

Key Features

• High-sensitivity microphone: -26 dB ±3 dB (1 kHz) for precise audio capture
• Wide frequency response: 20 Hz – 20 kHz for full-spectrum sound monitoring
• Maximum SPL: 112 dB with minimal distortion (3% THD)
• Excellent signal-to-noise ratio: 74 dB A-weighted for clean audio output
• Hemispherical directionality for comprehensive coverage
• Rugged IP66/IK10 rated casing for indoor and outdoor deployment
• Ultra-low power consumption: 0.006 W (2–10 VDC)
• 3.5 mm stereo plug connector for universal compatibility

Technical Specifications

• Operating temperature: -20 °C to 60 °C with 10–100% RH tolerance
• Storage range: -40 °C to 65 °C
• Compact dimensions: 228 x 108 x 47 mm (9 x 4.3 x 1.9 in)
• Weight: 980 g (2.2 lb)
• EMC, safety, and environmental certifications: EN 55035, FCC Part 15B, IEC/EN 62368-1, IP66, IK10
• PVC-free construction for environmental sustainability

Applications

Ideal for retail environments, office buildings, transportation hubs, and outdoor perimeter monitoring where professional audio documentation is essential. The TU1002-VE integrates seamlessly with Axis network audio infrastructure to provide synchronized audio-visual surveillance.

Warranty & Support

Backed by a comprehensive 5-year warranty. Available in 11 languages including English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, and Portuguese.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I spec the TU1002-VE for deployments where you need reliable outdoor audio alongside your video—parking structures, loading docks, perimeter zones where capturing conversation or incident audio matters. The IP66/IK10 rating means it handles weather and impact, and that -20 °C to 60 °C operating range covers most non-extreme climates without auxiliary heating or cooling. The hemispherical pickup pattern gives you decent area coverage from a single point, useful when you're monitoring an entryway or smaller zone rather than trying to isolate a specific speaker.

One critical watch-out: this kit pairs with the AXIS C8110 Network Audio Bridge, not directly with your cameras or NVR. You're adding a separate network audio appliance to your topology, which means additional switch ports, PoE budget considerations, and another device to manage and license in your VMS. Make sure your recording platform actually supports synchronized audio streams from the C8110 before you commit—not all NVR families handle third-party audio bridges gracefully, and you don't want discover that gap during commissioning.
