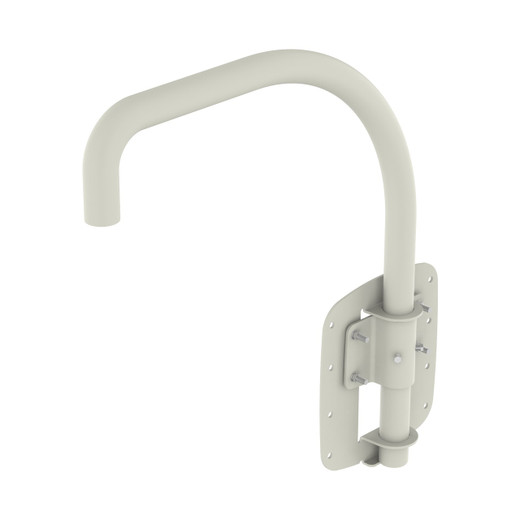

Hanwha SBP-300LM Parapet Mount, Ivory
The Hanwha SBP-300LM is a parapet-specific mounting bracket designed for elevated camera placement on building edges, ledges, and perimeter walls. It solves a common integration problem: cameras positioned at the parapet line provide better sightlines to property boundaries and entry points than standard wall or corner mounts, but only if the bracket itself is engineered for that geometry. This aluminum mount delivers that specificity without the cost of custom metalwork.
Key Features
- Parapet Mount Geometry: Engineered bracket profile positions the camera perpendicular to a parapet edge or wall ledge — critical for perimeter surveillance where you need coverage looking outward from the building face rather than down. Standard wall mounts don't handle this angle efficiently.
- Aluminum Construction with Corrosion Resistance: High-grade aluminum resists oxidation in both indoor climate-controlled spaces and outdoor environments with moderate humidity or salt spray. Aluminum won't degrade under UV exposure the way plastic mounts do, meaning you won't see bracket sag or brittleness after 3–5 years outdoors.
- Ivory Finish: Neutral color matches modern and traditional exterior paint schemes without standing out. Minimizes visual clutter on building facades — a practical choice for retail, institutional, and office environments where the security system should recede aesthetically.
- 1 1/2" Female Thread Connection: Universal 1.5-inch female thread accepts standard camera mounting stems and ball adapters. Compatible with nearly all commercial Hanwha IP cameras and third-party models using industry-standard NPT threading. No proprietary adapters needed.
- Load-Rated for Mid-Range Cameras: The aluminum structure supports typical compact and mid-sized dome and turret cameras (1–3 lbs) without deflection. Overloading with heavier PTZ heads or large environmental housings will cause bracket creep; verify your camera weight before ordering.
- Straightforward Installation: Bracket mounts directly to parapet ledge or wall edge using standard fasteners (concrete anchors or masonry bolts, depending on substrate). No special tools or assembly required. Allows simple angle adjustment during commissioning.
Integration & Compatibility
The SBP-300LM integrates with any camera system using 1.5-inch NPT female mounts — a widespread industry standard. Use it as part of a larger perimeter security architecture alongside recessed dome housings, outdoor enclosures, or integrated environmental covers. Pair it with PoE switches and NVRs to complete the surveillance chain. If your cameras use non-standard mount threads (e.g., metric or proprietary adapters), confirm thread compatibility before purchase.
For high wind zones (coastal areas, rooftop installations), consider reinforcing the bracket with secondary cable or strut supports — aluminum is rigid but not rated for sustained lateral loads from wind-driven camera movement.
What's in the Box
- 1 x Hanwha SBP-300LM Parapet Mount
Frequently Asked Questions
Q: Can the SBP-300LM (often searched as SBP 300LM) be used indoors?
A: Yes. Aluminum construction handles both indoor climate-controlled environments and outdoor exposure. If mounting indoors on ledges or partition edges, the bracket's lightweight design and corrosion resistance make it a low-maintenance choice.
Q: What camera weight limit does the SBP-300LM support?
A: The bracket is rated for compact to mid-sized cameras (approximately 1–3 lbs). Heavy PTZ heads, integrated environmental housings, or add-on thermal optics may exceed safe load limits and cause bracket sag. Verify your camera assembly weight before installation.
Q: Is the 1 1/2" female thread compatible with my camera?
A: The 1.5-inch NPT female thread is a universal standard for most commercial surveillance cameras. However, some older models or metric-based designs use different threads. Check your camera's mount specification before ordering.
Q: Can I use the SBP-300LM in high-wind or coastal environments?
A: Aluminum is corrosion-resistant but not windproof. In coastal or high-wind zones, the mount itself won't rust, but sustained lateral movement from wind-driven cameras may cause bracket creep over time. Consider secondary cable or strut reinforcement for exposed installations.
Q: What fasteners are included for mounting to the parapet?
A: The bracket itself is included; fasteners (concrete anchors, masonry bolts, or wedge anchors) must be selected based on your substrate (concrete, CMU, brick, stone). Consult a structural installer or your building documentation to choose the correct fastener type and size.
Q: Does the ivory finish chip or fade in sunlight?
A: Aluminum anodized finishes resist UV fading better than painted alternatives, though prolonged direct sun exposure may gradually lighten the ivory tone. The finish is durable but not impact-proof — dropping or striking the bracket during installation can chip paint and expose bare aluminum (which will oxidize surface). Handle with care during commissioning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-300LM is a purpose-built bracket that solves a specific installation problem: mounting cameras at the parapet line without compromising sightlines or structural integrity. The 1 1/2" female thread is standard, but the parapet geometry is not — most wall or corner mounts don't position the camera correctly for perimeter surveillance where you need the lens looking outward from the building edge rather than down or straight out.
Technical Highlights:
- Aluminum Construction: Corrosion-resistant material means you won't see bracket sag, rust bloom, or paint peeling after 3–5 years of outdoor exposure. Aluminum also runs cooler than steel in direct sun, which matters for camera longevity in thermal-bound environments.
- 1 1/2" NPT Female Thread: Accepts standard camera mounting stems without adapters. This is the rule in commercial surveillance — deviations are rare. Verify your camera's mount spec if you're pulling equipment from mixed-brand deployments.
- 1–3 lb Load Rating: Compact and mid-sized domes work fine. Heavy PTZ heads or integrated thermal housings don't — weight creep is the failure mode, not sudden collapse. Overloaded brackets deflect gradually, and you'll notice the camera angle drifting weeks or months into deployment.
Deployment Considerations:
- Fastener Selection: The bracket comes alone. You must select anchors based on substrate — concrete, CMU, brick, and stone each demand different fastener types and torque values. Undersized fasteners are a common field failure; concrete anchors rated for shear load (not just pullout) are critical on a parapet edge where wind can load the bracket laterally.
- Wind Loading in Coastal Zones: Aluminum won't corrode from salt spray, but sustained lateral movement from camera oscillation in high wind may cause bracket creep. If you're deploying in coastal or rooftop environments with consistent wind, plan for secondary cable reinforcement or strut bracing — the bracket alone isn't engineered for those loads.
Use the SBP-300LM for retail storefronts, office building perimeter coverage, educational campuses, and light-to-moderate institutional surveillance where the parapet geometry makes sense and camera weight stays under 3 lbs. It's not a heavy-duty PTZ mount, and it's not load-rated for add-on thermal or extended zoom housings — know those boundaries before commission.
