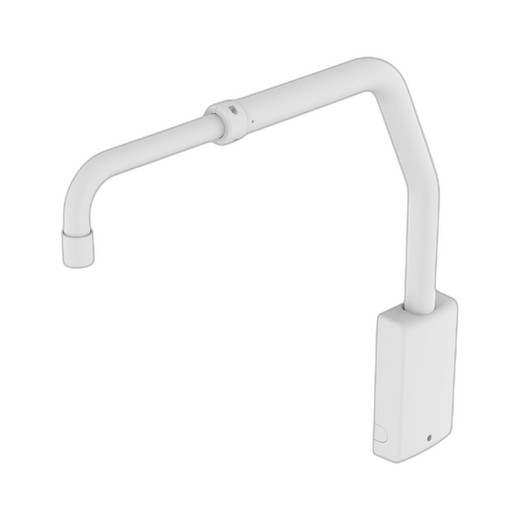

Hanwha SBP-156LMW1 Telescopic Parapet Mount
Overview
The Hanwha SBP-156LMW1 is a professional-grade telescopic parapet mount engineered for secure outdoor camera installations on parapet walls and similar architectural features. Built from high-grade aluminum with a RAL9003 white powder-coat finish, this mount delivers the height adjustment flexibility needed to position cameras at optimal angles across varying parapet wall thicknesses—a common challenge in retail, warehouse, and industrial perimeter deployments where standard fixed mounts create either blind spots or unusable viewing angles.
Key Features
- Adjustable telescopic arm (835–1098 mm / 32.9–43.2 inches): Allows you to dial in the exact mounting height during installation without swapping hardware. This flexibility reduces installation time and adapts to walls of different thicknesses without custom fabrication.
- Aluminum construction with RAL9003 white finish: Lightweight yet rigid—the mount weighs 7.26 kg (16.0 lbs)—so a single technician can position and secure it. Aluminum resists rust and UV degradation in harsh outdoor environments, preventing the corrosion failure common with steel mounts exposed to rain and salt spray.
- Compact footprint (1000 x 95 mm base): Fits tight parapet edges and minimizes visual obstruction from street level or neighboring properties. The narrow profile also reduces wind load and vibration on the camera itself.
- Compatible with Hanwha hanging adaptors: Works with the SBP-120HMW, SBP-140HMW, SBP-160HMW1, and SBP-180HMW1 models. This compatibility ecosystem means you can pair the mount with a range of Hanwha IP cameras and adapt the assembly as your surveillance needs evolve.
- Tool-free height adjustment: Telescopic design allows height changes during commissioning and maintenance without returning to the truck for hex wrenches or allen keys—saves time and reduces callbacks.
- Professional outdoor rating: Designed for demanding perimeter security, industrial facilities, retail sites, and institutional deployments where equipment must perform reliably through freeze-thaw cycles, moisture, and thermal stress.
Integration & Compatibility
The SBP-156LMW1 (often searched as SBP 156LMW1) is purpose-built for parapet mounting and integrates with Hanwha's hanging adaptor line. Before ordering, confirm your camera model's adaptor designation—if you're using a Hanwha PTZ or fixed dome outside the listed adaptor range, verify compatibility with the camera's documentation or consult pre-sales engineering to avoid mount and camera misalignment.
Pair this mount with network video recorders and outdoor IP cameras to complete a cohesive parapet surveillance system. If planning a multi-camera parapet array, review your PoE power budget and switch capacity early—parapet runs often require long cable runs that increase voltage drop, particularly on 802.3af-powered cameras.
When to Choose a Different Model
If your parapet edge is extremely narrow (under 80 mm) or you need a fixed height (no adjustment), consider a simpler fixed parapet bracket from the Hanwha range. If you're mounting on a vertical wall rather than a horizontal parapet surface, switch to a standard wall-mount or corner-bracket variant. For rooftop or pole-mounted installations, select a dedicated pole-mount or tripod system instead.
Deployment Context
Parapet mounts solve a specific but common problem: cameras positioned too low miss roofline activity and vehicle license plates; positioned too high, they waste megapixels on sky or create glare. The SBP-156LMW1's telescopic travel lets you find the sweet spot during site commissioning. This is especially valuable in retail and warehouse environments where you may not discover the optimal angle until you're standing on a ladder with a camera in hand.
Frequently Asked Questions
Q: What's the maximum camera weight this mount can support?
A: The mount's weight rating is not specified in the available documentation. Contact the manufacturer or consult the detailed datasheet before mounting cameras exceeding 2 kg, or pair it with one of the listed Hanwha adaptor models (which are pre-tested for load compatibility).
Q: Can the SBP-156LMW1 be installed with a different finish color?
A: The SBP-156LMW1 is supplied with a RAL9003 white powder-coat finish only. Custom finishes are not standard. If you require black or gray, check whether a variant model exists or contact the manufacturer about special-order options.
Q: Is the telescopic arm lockable once adjusted to the desired height?
A: Yes—the design is intended to allow secure height adjustment and positioning. Once set, the telescopic mechanism locks into place to prevent drift from wind vibration or temperature cycling. Standard installation should include verifying lock security during commissioning.
Q: What tools are required for installation?
A: The mount uses tool-free adjustment for height. Installation to the parapet will require standard fasteners (bolts, anchors, or concrete wedges, depending on your parapet material) and basic hand tools. Consult the installation guide for specific fastener types and torque specifications.
Q: Does the SBP-156LMW1 work with non-Hanwha cameras?
A: The SBP-156LMW1 is designed for Hanwha adaptors. Using it with third-party cameras requires a compatible third-party adaptor plate. Verify mechanical fit and load rating before deployment.
Q: What's the warranty on the SBP-156LMW1?
A: Specific warranty terms are not documented in the available evidence. Contact the manufacturer or specialty distributor for warranty period and coverage details.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-156LMW1 solves a real problem most installers run into: parapet walls vary in thickness, and a fixed mount either sits too high (wasting megapixels on sky) or too low (missing the license plate at street level). The telescopic adjustment range of 835–1098 mm means you can commission the camera in the field without a return trip for a different bracket.
Technical Highlights:
- Adjustable height 835–1098 mm: Approximately 263 mm of travel—enough to accommodate parapet variations and dial in the optimal viewing angle without hardware substitution.
- Aluminum construction at 7.26 kg: Light enough that one technician can position and secure it during installation, yet rigid enough to minimize camera vibration from wind or passing traffic.
- RAL9003 white finish: Resists corrosion in outdoor environments where rain, freeze-thaw cycles, and salt spray (near coastal sites) would degrade uncoated steel in 18–24 months.
Deployment Considerations:
- Verify adaptor model compatibility before ordering—the SBP-156LMW1 works only with the listed Hanwha hanging adaptors (SBP-120HMW, 140HMW, 160HMW1, 180HMW1). If your camera or adaptor model is not in that list, confirm fit with the manufacturer.
- Parapet fastening method matters: concrete parapets require concrete anchors or wedge bolts; metal parapets require through-bolts with backing plates. Do not rely on surface fasteners alone in high-wind zones—vibration will loosen them within months.
Best suited for retail perimeters, warehouse loading areas, and industrial sites where you need precise camera placement on architectural parapet edges and cannot afford a second commissioning visit. Skip this mount if you're working with a narrow edge (under 80 mm) or if you need a fixed, non-adjustable design.
