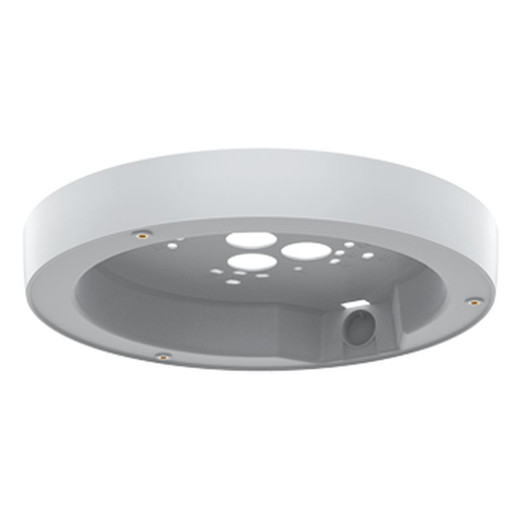

Axis 02427-001 TM5601 Conduit Back Box
Overview
The Axis 02427-001 is a conduit back box designed to mount compatible Axis IP cameras in ceiling applications. It provides a stable mechanical platform for in-ceiling camera deployment in indoor environments. The TM5601 is a mounting accessory — it does not include imaging, power, or network electronics — and serves as the structural link between the camera and your ceiling infrastructure.
Key Features
- In-Ceiling Mounting: Designed specifically for recessed or surface ceiling installation, the conduit back box anchors the camera securely without relying on drywall anchors or temporary fasteners. This matters because camera misalignment or drift over time compromises surveillance coverage — a stable back box eliminates that risk.
- Indoor-Rated Construction: Rated for indoor environmental conditions including standard temperature and humidity ranges. Not suitable for outdoor, wet, or extreme-temperature deployments — if you need outdoor coverage, a weather-rated dome or bullet housing is required instead.
- Compatible with M5000-G Series: The 02427-001 fits the Axis M5000-G IP camera line and is certified for mechanical and electrical compatibility. Always verify compatibility with your specific camera model before ordering.
- White Finish: Ships in standard white to blend with typical suspended or drop ceilings. If you require a different color for your installation, confirm finish options with the manufacturer before deployment.
- Conduit Entry: Designed to accept standard electrical conduit, enabling cable management and protection in wall or ceiling cavities. This prevents exposed wiring and meets code requirements in many commercial installations.
- Installation Manual Included: The package includes printed or PDF documentation with mounting templates and fastener specifications, reducing field troubleshooting and ensuring first-time correct installation.
Integration & Compatibility
The TM5601 back box is a mechanical accessory only. It does not perform network functions, power distribution, or video processing. To deploy it correctly, you need:
- A compatible Axis camera (Axis M5000-G series confirmed)
- Ceiling structure capable of supporting the combined weight of the camera and back box (verify load rating in the installation manual)
- Conduit, cable clips, or wall anchors appropriate for your ceiling type (drywall, concrete, metal studs — each requires different fasteners)
- Power and network cabling routed through the conduit entry or adjacent cable pathway
Consult your network video recorder or camera selection guide to confirm the complete bill of materials for your deployment.
What's in the Box
- 1x Axis TM5601 Conduit Back Box (white)
- 1x Installation Manual
Frequently Asked Questions
Q: Is the Axis 02427-001 suitable for outdoor installations?
A: No. The TM5601 is rated for indoor use only and is not weather-sealed or temperature-hardened for outdoor environments. If you need outdoor in-ceiling mounting (e.g., under an eave), consult Axis for outdoor-rated housing alternatives.
Q: What cameras does the 02427-001 (often searched as 02427 001) support?
A: The Axis 02427-001 is confirmed compatible with the Axis M5000-G series. Before purchasing, verify compatibility with your specific camera model in the product datasheet or contact the manufacturer.
Q: Can I mount the back box directly to drywall?
A: The TM5601 is designed for conduit mounting and ceiling-cavity installation. Direct drywall mounting without conduit support is not recommended and may void the installation warranty. Always follow the included installation manual.
Q: What fasteners and hardware are included?
A: The TM5601 package includes the back box and installation manual only. Fasteners (screws, anchors, clips) are environment-specific and depend on your ceiling type (drywall, concrete, metal studs). Confirm required hardware specifications in the installation manual before ordering.
Q: How much weight can the back box support?
A: Load ratings depend on ceiling construction and fastener selection. Consult the installation manual for maximum camera and back-box weight limits, and verify your ceiling structure can accommodate the total load.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02427-001 TM5601 is a straightforward mechanical back box — not glamorous, but essential for certain ceiling deployments. Its primary job is to provide a stable, code-compliant mounting surface for M5000-G series cameras in suspended or drop-ceiling environments. Get this detail right, and your cameras stay aligned; skip it or use the wrong mount, and you're managing camera drift and misalignment within months.
Technical Highlights:
- Conduit-Ready Design: The back box is engineered for standard electrical conduit entry, which matters if your building code requires cable protection in ceiling cavities or if you're coordinating with an electrical contractor. Without it, you'll be routing cable externally or improvising fastening — both add cost and look unprofessional.
- Indoor-Only Rating: The unit is not rated for outdoor, wet, or temperature-extreme environments. Verify your ceiling environment before order — even 'covered' outdoor spaces (like loading dock overhangs) can experience condensation and temperature swings that exceed the TM5601's design envelope.
- M5000-G Compatibility: Confirmed fit with Axis M5000-G series; cross-check your exact camera model in the installation manual. Axis regularly refreshes camera lines, and a model number that looks similar may not be mechanically compatible.
Deployment Considerations:
- Always verify your ceiling structure's load capacity. A drywall-anchored installation without proper conduit support is a setup for failure — the camera weight plus back box will eventually slip or sag as anchors fatigue. If ceiling cavity installation isn't feasible, ask your integrator about wall-mount or pendant alternatives.
- Fastener selection is environment-specific and not included. Drywall requires expanding anchors or toggle bolts rated for dynamic loads; concrete needs powder-actuated fasteners; metal studs require self-drilling screws. Mismatched fasteners are a common cause of misaligned cameras and call-backs.
The 02427-001 is the right choice for integrators deploying M5000-G cameras in commercial offices, retail spaces, or other indoor ceiling environments where electrical conduit and standard fastening are feasible. If your site is outdoor-exposed, has non-standard ceiling (exposed beams, angled surfaces), or requires a different camera form factor, look at Axis's full mounting accessory line or work with a systems engineer to identify the correct mounting strategy upfront.
