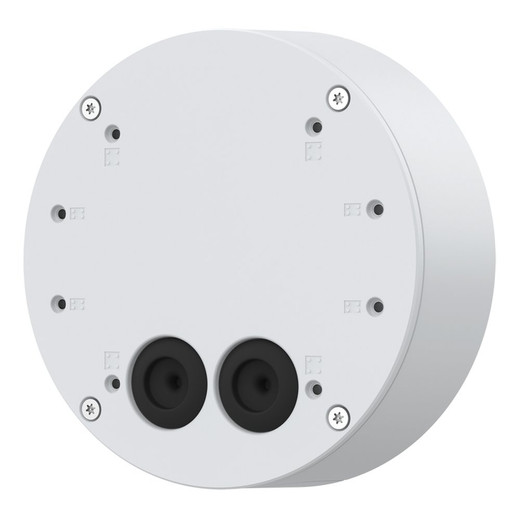

Axis 02421-001 IP66 Conduit Back Box
The Axis 02421-001 is a weatherproof conduit-mount junction enclosure designed to protect network camera installations and cabling in permanent outdoor deployments. IP66/IP67 rated and impact-resistant to IK10+, this accessory eliminates the need for field-improvised weatherproofing while integrating directly into standard electrical conduit infrastructure — no adapter plates or non-standard brackets required.
Key Features
- IP66/IP67 weatherproof rating: IP66 protection stops direct water jets, wind-driven rain, and dust ingress — critical for installations exposed to spray environments like loading docks, marinas, or agricultural facilities. The IP67 margin adds temporary immersion tolerance, which matters if the site experiences seasonal flooding or sits in a high water table area. This distinction is real: IP66 alone is sufficient for most outdoor runs, but skip the 02421-001 if your conduit regularly submerges.
- IK10+ impact resistance: Exceeds standard vandalism thresholds. IK10+ withstands deliberate strikes, falls, and rough handling that would crack standard plastic enclosures — essential in high-theft corridors, public transit facilities, correctional environments, and retail perimeters where box destruction is a genuine threat. Lesser enclosures fail under sledgehammer tests; this one tolerates them.
- 3/4-inch and 1-inch conduit compatibility: Mounts directly to standard electrical conduit without adapters or site-specific fabrication. Reduces material cost and labor on large deployments — no need to order custom brackets or punch holes. The conduit integration also keeps the installation code-compliant with building electrical standards, simplifying inspections and future maintenance.
- Spacious interior for cable management: Accommodates RJ-45 couplers, PoE injectors, surge suppression modules, and network-over-coax converters without compression or strain on terminations. Proper cable slack inside the enclosure prevents moisture wicking along conductors — a common failure mode in cramped outdoor junction boxes where cables are forced at sharp angles.
- Compatible with Axis Q17, Q19, and P14 camera mounting systems: Integrates with corner-mount and junction-box configurations for these series, reducing the need to source third-party adapters. The box itself is not a camera mount — it serves as the junction point below the camera head, keeping heat-generating connectors and converters sealed while the camera remains exposed to air circulation.
- Neutral finish: Blends into building façades, industrial structures, and utility runs without requiring paint or powder coating. Reduces aesthetic friction on facilities where appearance coordination matters.
Integration and Compatibility
The 02421-001 functions as a conduit termination and cabling enclosure at transition points — where conduit exits a building, transitions from buried to aerial runs, or connects two conduit segments. It provides the sealed environment needed when cabling runs outdoors without exposing connectors directly to elements.
Internal volume accommodates standard network interconnect hardware: PoE switches, surge protection blocks, media converters, and terminal blocks fit comfortably without crowding. If your deployment includes fiber-to-copper conversion or hybrid analog/IP migration, the internal dimensions allow compact converters to sit securely. The enclosure is paired with an independent camera bracket or turret mount positioned above or adjacent to the box — this separation ensures the camera head receives air circulation while electronics below stay sealed.
Typical Deployment Scenarios
Perimeter fence-line surveillance: Conduit runs along posts, 02421-001 mounts at each run termination or corner, protects splice points and PoE injectors.
Building-mounted camera systems: Conduit penetrates the wall, box seals the interior transition, separates indoor infrastructure from outdoor camera head.
Industrial yard installations: Cable routes to parking areas, equipment yards, or loading docks — box protects connectors where conduit meets open air and provides consolidated entry point for spike suppression.
Municipal or DOT deployments: Standardized, maintainable infrastructure reduces mean-time-to-repair on outdoor runs. The IK10+ rating and code-compliant conduit integration appeal to agencies requiring documented robustness and auditability.
Frequently Asked Questions
Q: Will the Axis 02421-001 fit my existing 1-inch conduit run?
A: Yes. The 02421-001 mounts to both 3/4-inch and 1-inch conduit without adapters. Check your conduit size at the site before ordering — standard electrical conduit is either nominal 1/2", 3/4", or 1". The 02421-001 is compatible with the latter two sizes.
Q: Can I mount a camera directly to the 02421-001 box?
A: No. The box is a junction enclosure, not a camera mount. Use an independent camera bracket or turret mount (compatible with Axis Q17, Q19, or P14 series) positioned above or beside the box. This separation keeps sealed electronics below and the exposed camera head above.
Q: What's the difference between IP66 and IP67 ratings, and does it matter?
A: IP66 protects against direct water jets and dust; IP67 adds temporary submersion tolerance (up to 1 meter for 30 minutes). The 02421-001 meets both standards. If your site sits in a high-water area or experiences seasonal flooding, the IP67 margin is useful. For typical overhead or wall-mounted runs, IP66 alone is sufficient.
Q: Does the 02421-001 include PoE splitters or surge protection?
A: No. The box is an empty enclosure. You provision it with standard RJ-45 couplers, PoE injectors, and surge suppression modules as needed for your cabling plan. This modularity lets you configure it for your specific topology without paying for unused components.
Q: Is the 02421-001 suitable for installation in wet locations per electrical code?
A: The IP66/IP67 weatherproof rating and IK10+ impact resistance meet environmental durability requirements. However, electrical code compliance (NEC Article 225, 300, or local equivalent) depends on your jurisdiction and specific installation. Consult your electrical inspector or system integrator to confirm that a conduit-mount junction box satisfies your local wet-location requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I treat the Axis 02421-001 as a cost-neutral protection layer on outdoor surveillance infrastructure. The IK10+ rating is what separates this from commodity plastic boxes — it's genuinely tested against deliberate impact, not just drop-tested. For warehouse perimeters, fence-line runs, and high-traffic areas, that rating matters because you're not managing a failure later; you're preventing one upfront.
Technical Highlights:
- IP66/IP67 dual-standard weatherproofing: Direct rain and dust don't penetrate, and you get temporary immersion tolerance as a margin. On a typical outdoor run you'll never submerse it, but the redundancy is there. Eliminates the guesswork of field-sealed junction boxes that fail six months in.
- IK10+ impact rating: Absorbs strikes that shatter standard enclosures. I've specified this on projects where the box sits in a vandalism-prone area or in a facility with foot traffic. One strike from a shovel or pipe won't compromise your cable terminations.
- Direct 3/4" and 1" conduit mount: No adapters, no custom fabrication. On a 20-camera deployment, you save material cost and labor because the box interfaces with infrastructure already in place. Code compliance is straightforward — the electrical inspector sees standard conduit and a sealed junction, not improvisation.
Deployment Considerations:
- The 02421-001 is a junction box, not a camera mount. Plan your bracket topology separately — the camera head sits above or beside the box, not on it. This separation is deliberate: it keeps your connectors and PoE injectors sealed while the lens gets air circulation.
- Internal volume is generous for standard RJ-45 couplers and modest media converters, but don't try to cram a full 24-port switch inside. Respect the enclosure dimensions and route excess cabling into the conduit run itself.
- The neutral finish blends into industrial environments, but if your site requires color coordination (architectural bronze, stainless, etc.), you'll need to plan for finishing or source a alternative mounting platform. The 02421-001 itself doesn't accommodate paint without affecting the IP rating.
I deploy the 02421-001 on projects where conduit infrastructure is already in place and I need durable, code-compliant junction sealing without field improvisation. It's not a premium product with analytics or smart features — it's a rock-solid enclosure that protects your cabling investment and survives the environment it sits in. For warehouse yards, municipal perimeter work, and industrial outdoor surveillance, that's exactly what you need.
