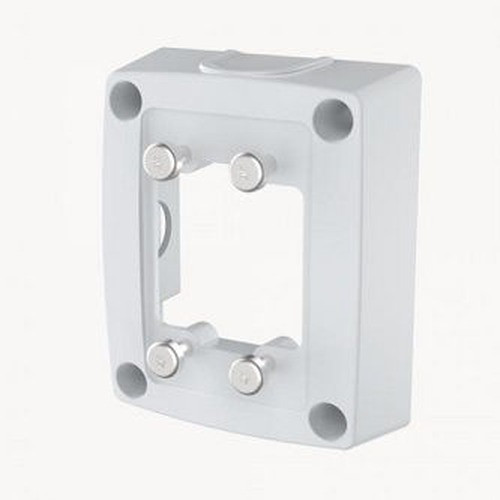

Axis 02336-001 TQ1601-E Conduit Back Box
The Axis 02336-001 is a purpose-built cable management and environmental protection accessory for professional camera installations across indoor and outdoor sites. This back box mounts behind Axis IP cameras and housing assemblies to manage conduit connections, organize cabling, and shield vulnerable connection points from weather, dust, and impact damage. Built from powder-coated aluminum with stainless steel hardware, the unit is engineered to survive corrosive and harsh environments without degradation.
Key Features
- Multiple conduit entry options: Rear cable hole plus M25 conduit ports on sides and bottom allow flexible routing for power, network, and ACI adapter cables — you're not forced into a single cable path, which matters when site layouts vary or when you're retrofitting existing infrastructure.
- IP66/IP67 environmental rating: Direct rain and high-pressure water spray won't penetrate the enclosure or corrode connections inside. IP67 capability means brief submersion is survivable, though this is not a fully submerged device — deploy it above waterline in flood-prone areas.
- IK10 impact resistance: Rated to absorb 20 joules of impact without cracking or deforming — meaningful in warehouses, loading docks, and perimeter fences where equipment gets bumped, struck, or knocked by equipment.
- Compact footprint: 130 x 158 x 50 mm (5.1 x 6.2 x 2.0 inches) and weighing just 540 g (1.19 lbs) keeps installation weight-conscious. Fits in tight ceiling or wall cavities without requiring structural reinforcement.
- 8 kg maximum load capacity: Handles typical camera housings and associated hardware. Don't overload with multiple heavy accessories or you risk mechanical failure at the mounting point.
- PVC-free aluminum construction: Powder-coated finish with stainless steel TX20 screws and fasteners. No plastic components means no brittleness in extreme cold or UV degradation over years of outdoor exposure.
Integration & Compatibility
The 02336-001 is designed to integrate with Axis camera housings and mounting platforms including the T94Q01A, T92E, T93F, P13-E, Q16-E, T92G20, and T91E61 series. The back box accepts ACI adapter connections for sensor and accessory integration. When paired with network video recorders, the organized cabling reduces troubleshooting time and simplifies maintenance workflows. Installation uses standard stainless steel fasteners and includes a comprehensive installation guide to minimize deployment hours.
Typical Deployments
Outdoor perimeter security around industrial facilities and warehouses benefits from the IK10 rating and sealed conduit entries — no exposed connections means lower failure rates from vandalism or environmental stress. Retail installations with overhead or wall-mounted cameras use the back box to hide cable runs and protect junction points from customer interference. Transportation hubs and parking structures deploy this accessory to manage cabling in high-vibration, temperature-cycling environments. The 3-year warranty covers manufacturing defects, though impact damage and corrosion from salt spray (despite stainless hardware) may not be covered — verify terms with your vendor before deployment in coastal zones.
