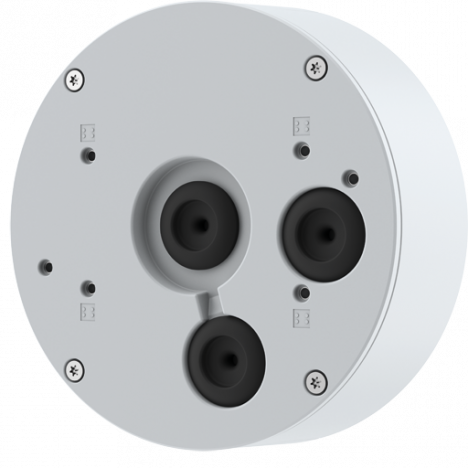

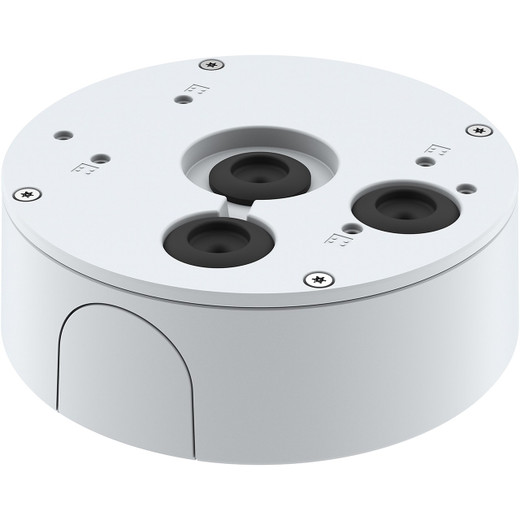

Axis 01190-001 T94S01P Conduit Back Box
The Axis 01190-001 is a rugged outdoor enclosure engineered to protect network camera connections and cabling where weather and physical tampering are real concerns. If you're deploying Axis IP cameras in perimeter security, coastal installations, or industrial sites prone to vandalism, this back box eliminates a critical vulnerability: exposed connection points. It's not glamorous infrastructure, but it's the difference between a camera that stays online and one that degrades in the field.
Key Features
- IP66/67 Sealed Compartment: Direct rain, dust jets, and spray won't compromise your cable terminations. IP66 handles powerful water jets; IP67 adds brief submersion tolerance. For most outdoor surveillance, IP66 is sufficient — upgrade only if the back box sits below grade or in tide zones.
- IK10+ Impact Rating: Withstands severe physical abuse — deliberate strikes, kicks, vehicle impact — without breaching the sealed compartment. Standard IK08 fails here; IK10+ is the threshold where vandalism and accidental damage become survivable.
- 3/4" and M25 Conduit Interfaces: Multiple connection points (front, back, and sides) accommodate flexible routing. Thread 3/4" NPT conduit (North American standard) or M25 metric fittings depending on your infrastructure. This flexibility matters when you're retrofitting existing cable runs or designing new ones around building geometry.
- Outdoor-Ready Enclosure Design: Built for permanent deployment in harsh environments. No field modifications required; conduit threads are factory-prepared and sealed against ingress.
- Axis Ecosystem Integration: Engineered to work with Axis camera mounts and connection architectures. If you're standardizing on Axis surveillance systems, this back box doesn't require workarounds or third-party adapters.
- Flexible Cable Management: Enough internal volume to route, coil, and terminate multiple camera feeds without cramping connectors or creating strain on cable entry points.
Integration & Compatibility
The 01190-001 pairs naturally with outdoor IP camera outdoor camera installations where conduit-based cable routing is mandated or preferred — either for mechanical protection, code compliance, or to match existing facility infrastructure. Works with Axis bullet, dome, and PTZ form factors that mount on conduit or pole-mount hardware. For PoE-powered cameras, ensure your PoE switch or injector delivers sufficient power budget across the run; the back box itself is passive and draws no power.
Conduit sizing: confirm your camera cable bundle (typically CAT6 + power sheath, or single hybrid cable) fits comfortably through 3/4" or M25 without sharp bends. Pre-run or fish cable before final enclosure mounting to avoid field frustration.
Deployment Scenarios
Install this back box at the base of a pole-mounted camera, at a wall penetration point, or at a junction where multiple camera feeds converge into a central conduit run. Coastal and industrial settings benefit most — salt spray and corrosive atmospheres don't compromise sealed components the way they do exposed RJ-45 connectors. Vandalism-prone sites (parking lots, perimeter fences, public infrastructure) get protection where impact resistance prevents an attacker from severing connections or accessing terminations. For IP camera deployment planning, budget this back box into every outdoor installation where cable is exposed to weather or physical access.
