Axis 02267-001 TU6005 20m Plenum Cable
Overview

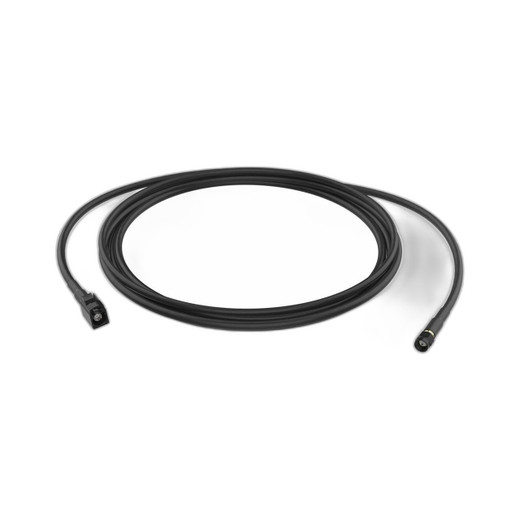

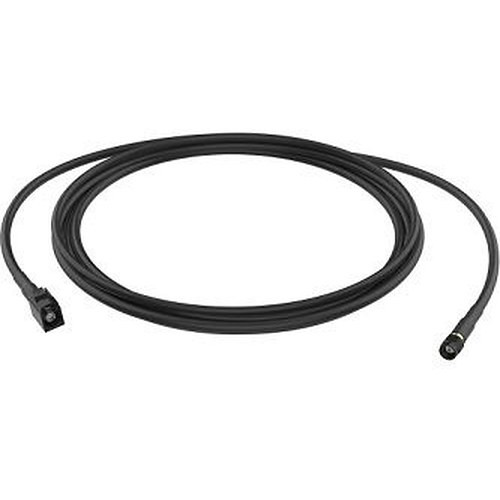

The Axis 02267-001 is a 20-meter plenum-rated interconnect cable engineered for Axis F-Series modular camera systems. This cable connects 2nd-generation modular sensor and main units—including the F91, F21, F7225-RE, and F4105-LRE—across extended distances without sacrificing signal integrity. The plenum rating removes installation restrictions in air-handling spaces, HVAC returns, and other plenum cavities where non-plenum cables create fire and smoke hazards. If your deployment spans 20 meters between a sensor unit and main processor, or between modular components in a distributed system, this cable handles the reach with compliance built in.
Key Features
- Plenum Rating (Fire-Classified): Meets NEC (National Electrical Code) plenum fire and smoke standards. Deploy in HVAC plenums, drop ceilings, and other air-return pathways without code violations. Non-plenum alternatives would require conduit or relocation—this cable eliminates that friction.
- 20-Meter Length: Spans longer cable runs between distributed modular camera units and central processing points. Reduces the need for additional repeaters or intermediate PoE injectors in many warehouse and large-facility layouts.
- 32mm Bend Radius: Tight bend radius allows routing through conduit, cable trays, and wall pathways without kinking or signal degradation. Critical in retrofit installations where you're threading cable through existing infrastructure.
- TU6005 Standard Connector: Proprietary Axis connector ensures secure mating with F-Series modular units. No adapter loss, no intermittent connections—direct, repeatable coupling across multiple connections and disconnect cycles.
- Durable Jacket Construction: Shielded design minimizes EMI ingress in installations near lighting circuits, motors, or wireless equipment. Jacket material rated for both indoor plenum and outdoor-to-indoor transitions where cables enter buildings.
- Backward-Compatible with 1st Gen F-Series: Works with earlier Axis F modular platforms, protecting your investment if you're expanding existing deployments or upgrading sensor units.
Integration & Compatibility
The 02267-001 terminates with the TU6005 connector on both ends, matching all 2nd-generation Axis modular sensor and main units. Verify your specific F-Series model before ordering—early 1st-generation variants may require adapter firmware. If you're building a modular system, pair this cable with an IEEE 802.3bt PoE switch rated for the total power draw of your sensor array. Consult your camera selection guide if you're uncertain which F-Series variant suits your sensor configuration.
What's in the Box
- 1x Axis TU6005 20m Plenum Cable (model 02267-001)
Frequently Asked Questions
Q: Is the Axis 02267-001 suitable for outdoor-to-indoor transitions?
A: The plenum jacket is UV-stabilized for brief outdoor routing (entry point to building), but this is not an outdoor-rated cable. For extended outdoor runs, use a weather-rated Axis variant. The 02267-001 shines in indoor plenum and concealed pathways.
Q: Can I use this cable with Axis F-Series cameras from the original generation?
A: Yes. The TU6005 connector is backward-compatible with 1st-generation Axis F modular units, though firmware on both devices should be current to avoid intermittent connection issues.
Q: What is the bend radius, and why does it matter?
A: The 32mm bend radius means you can route the cable through conduit or tight spaces without kinking the internal conductors. Kinking causes signal reflection and intermittent disconnects—a real headache in retrofit jobs. This spec ensures reliability in confined pathways.
Q: Do I need separate PoE power for sensors connected via a 20-meter run?
A: Power delivery depends on your main unit's capacity and the cumulative load of sensors. The cable itself has no power rating; consult Axis PoE planning documentation for your specific sensor configuration. In large modular arrays, you may need a dedicated PoE+ switch.
Q: Is this cable suitable for wall-mounted installations?
A: Yes. The plenum rating and flexible jacket work well in in-wall and above-ceiling runs typical of retail and office deployments. Verify building codes if running within walls—some jurisdictions require conduit even for plenum cable.
Q: What makes a plenum-rated cable different from a standard cable?
A: Plenum cables use fire-retardant jacket materials and low-smoke compounds. If a fire occurs, they don't release toxic fumes into air-return systems. Building codes mandate plenum rating anywhere air circulates through HVAC returns, drop ceilings, or plenums. Failure to comply can void insurance and trigger code violations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02267-001 is a straightforward but critical piece of infrastructure for modular F-Series deployments. The plenum rating is not a marketing checkbox—it's a code compliance requirement. I've seen too many retrofit jobs grind to a halt when a non-plenum cable is discovered running through a drop ceiling, forcing a complete re-pull. The 02267-001 saves that friction and keeps your installation code-clean from day one.
Technical Highlights:
- 20-Meter Reach: Eliminates the need for intermediate PoE repeaters or extenders in many modular deployments. You get clean signal and power delivery across the full cable run without regeneration loss.
- 32mm Bend Radius: Flexible enough for in-wall and conduit routing without signal degradation. Real benefit in retrofit jobs where you're threading cable through existing building infrastructure.
- TU6005 Connector Compatibility: Ensures repeatable, low-loss mating with all 2nd-gen Axis F modular units. No adapter degradation, no intermittent connection issues downstream.
Deployment Considerations:
- Verify that your building code mandates plenum rating for your installation path. If you're running above drop ceilings or through HVAC plenums, this is non-negotiable. Standard cable in those pathways violates NEC and voids insurance in a fire event.
- The 20-meter length is generous, but cumulative voltage drop is still a factor if you're daisy-chaining multiple sensors. Test PoE voltage at the last unit in the chain—if it drops below 48V, you need a higher-wattage PoE+ source or a repeater.
- If you're retrofitting an existing 1st-gen F-Series system, confirm firmware compatibility before deployment. Mixed-generation connectors can seat but occasionally cause link negotiation delays.
Deploy the 02267-001 in any F-Series modular build where the cable path crosses a plenum boundary. Warehouse distribution centers, retail environments with drop ceilings, and office buildings with HVAC ducts are ideal. Non-plenum alternatives would require conduit (cost and labor) or relocation (dead space). This cable gives you compliance and routing flexibility in one SKU.
