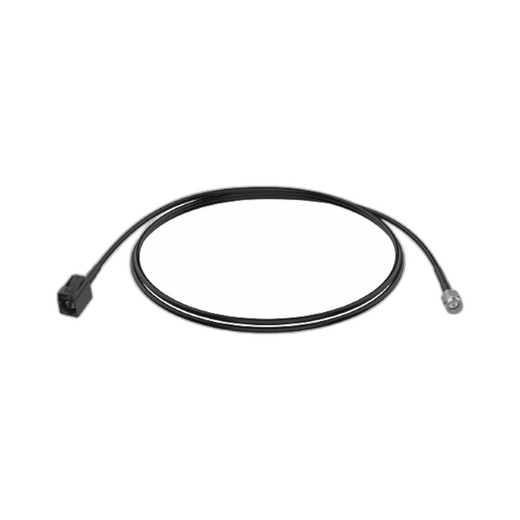

Axis 02791-001 TU6007-E 8M Cable 4-Pack
The Axis 02791-001 is a four-pack of premium 8-meter interconnect cables purpose-built for Axis F Series modular camera systems. Each cable delivers robust signal transmission in demanding surveillance and industrial installations where modular sensor architecture requires precise, durable connectivity between main units and distributed sensor heads.
Key Features
- Four 8-meter cables per pack — enough to wire a complete F Series cluster without mid-run splices. The 8-meter length bridges the distance between a central F91 main unit and remote pinhole or dome sensors mounted on warehouse racks, overhead gantries, or perimeter structures.
- SMA-to-FAKRA connector configuration — integrates directly with Axis F91 main units, AXIS F21 sensor units, AXIS F4105-LRE Dome Sensor, and AXIS F7225-RE Pinhole Sensor. No adapter kit required; insertion is keyed and color-coded to prevent cross-wiring.
- IP66 and IP67 environmental ratings — withstands direct spray and partial submersion. Outdoor warehouse and automation environments with washdown cycles or high-humidity condensation won't compromise signal path. The black polyethylene jacket resists UV and temperature cycling.
- 50-ohm impedance with 0–3 GHz frequency range — maintains signal integrity across the analog and digital RF spectrum used by F Series sensor-to-processor communication. Impedance mismatch causes reflections and data errors; 50-ohm spec ensures clean transmission over the full 8-meter run.
- 3 mm diameter with 30 mm bend radius — compact profile reduces bundle size in cable trays and conduit. The 30 mm minimum bend radius (approximately 1.2 inches) accommodates tight routing around automation frame corners and sensor cluster housings without pinching or kinking the core.
- Operating range -40°C to 75°C with 10–100% RH tolerance — deploys in freezer storage, outdoor docks, and tropical humidity environments. Condensing moisture (100% RH) is explicitly supported, critical for cold-chain or marine installations where dew forms on cable runs.
- UN ECE R118 and ULCM E164469-F5 certifications — compliance pathways for automotive mobile surveillance (R118) and industrial deployments (ULCM). Useful if your integrator must audit traceability for OEM vehicle platforms or Class I facilities.
- 124 g per cable — lightweight enough for overhead runs without sagging or requiring additional strain relief, yet heavy enough to indicate quality copper shielding and jacket material.
Integration & Compatibility
The 02791-001 is designed for modular camera architectures where F Series sensor units connect to a central processing hub. Install one cable between the F91 main unit and each remote sensor (dome, pinhole, or thermal variant). If your layout requires longer runs, standard SMA and FAKRA panel-mount adapters are available separately; this pack covers standard-distance cluster deployments up to 8 meters.
What's in the Box
- Four Axis TU6007-E 8-meter cables with SMA-to-FAKRA connectors
Frequently Asked Questions
Q: Can I use the 02791-001 with non-Axis F Series systems?
A: No. The cable is engineered specifically for the SMA-to-FAKRA pinout of the Axis F Series. Other modular camera lines (including Axis box or turret systems) use different connector standards and would require a different cable assembly.
Q: Is the 02791-001 suitable for outdoor direct-burial or conduit runs?
A: The IP66/IP67 jacket handles outdoor aerial and tray routing. For buried or submerged applications, consult the full environmental testing data — IP67 indicates temporary submersion, not permanent underwater deployment. For permanent conduit burial in wet soil, confirm with your integrator or Axis technical support.
Q: What's the warranty on these cables?
A: Three-year warranty covers manufacturing defects in the cable jacket, connectors, and core shielding.
Q: Do I need to terminate or crimp the connectors myself?
A: No. Each cable in the four-pack arrives fully assembled with SMA and FAKRA connectors factory-terminated and tested. Installation is plug-and-play.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02791-001 is a straightforward buy — four pre-assembled, factory-tested cables with correctly keyed SMA-to-FAKRA connectors. If you're building out an Axis F Series modular installation, this four-pack eliminates the temptation to hand-crimp or improvise connector termination, which is where RF signal integrity breaks down in the field.
Technical Highlights:
- 50-ohm impedance matched to F Series RF protocol: Mismatched impedance causes reflections and packet loss over longer runs. The 02791-001 maintains a clean 0–3 GHz passband across all 8 meters — no signal degradation between sensor and main unit.
- IP66/IP67 with 100% RH tolerance: The polyethylene jacket and sealed connectors handle condensing humidity without corrosion. In frozen-food warehouses or coastal automation sites, this becomes a cost-avoidance measure — failed cables mid-deployment cost labor and downtime.
- 3 mm diameter for tight bundle routing: Warehouse automation frames are cramped. A 3 mm diameter cable packs neatly in cable trays and around overhead gantry structures, reducing the footprint of the F Series cluster wiring harness.
Deployment Considerations:
- Eight meters is the standard run length: If your sensor-to-processor distance exceeds 8 meters, you'll need to plan for a remote processing module or place the F91 main unit closer. Stock a second pack if you have multiple clusters — the four-pack covers one full cluster, not a dozen scattered sensors.
- Connector keying is color-coded but easy to miss under pressure: Train your field technician to verify the connector type before insertion. Forced insertion of a mismatched connector (e.g., SMA into an F-connector port) will crack plastic tabs and cost you a sensor unit replacement.
The 02791-001 is the right choice for any Axis F Series warehouse, automation, or outdoor modular deployment where you want to eliminate field-termination risk and ensure first-install signal integrity. For a mixed-sensor cluster with multiple F91 main units, buy two packs.
