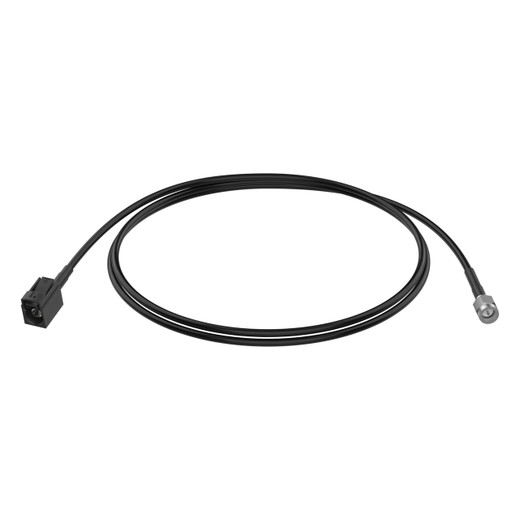

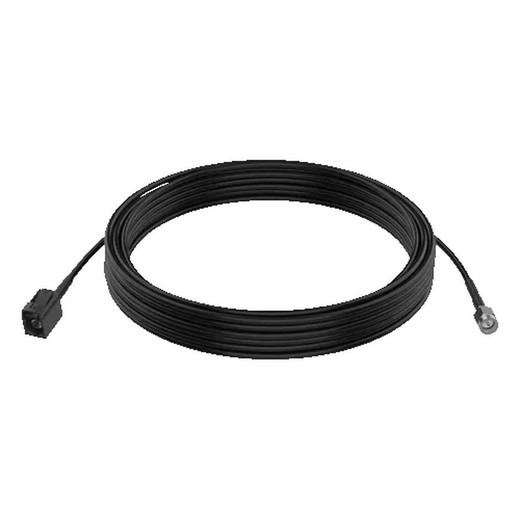

Axis 02793-001 TU6007-E 1M Cable 4-Pack
The Axis 02793-001 is a four-cable pack designed specifically for second-generation Axis F Series modular camera systems. Each cable measures exactly 1 meter and terminates in SMA FAKRA connectors rated IP66 and IP67. If you're assembling a distributed modular camera network across a warehouse, retail facility, or transportation hub, these cables are the backbone — get four units per pack to avoid mid-deployment shortages.
Key Features
- Four 1-meter cables per pack: Eliminates single-cable orders and simplifies inventory. One pack covers a small multi-camera node or provides spares for a larger installation.
- SMA FAKRA connectors with IP66 and IP67 ratings: IP66 blocks dust and direct water spray; IP67 handles brief submersion. This matters in outdoor marshalling yards, cold-storage facilities, or areas subject to wash-down — you won't see connection failures from moisture ingress.
- 50 Ohm impedance, 0–3 GHz frequency range: Impedance match prevents signal reflections and attenuation. The frequency spec means these cables handle the entire modular F Series signal bandwidth without degradation, ensuring clean video from sensor to main unit across the full 1-meter span.
- Compact 3 mm diameter with 30 mm minimum bend radius: Tight routing is possible in cable trays, conduit, and behind equipment racks. The small diameter reduces bulk in congested installations and the 30 mm bend radius means you can coil or route without kinking the cable.
- Operating range −40°C to 75°C with 10–100% RH tolerance: Humidity and temperature swings won't degrade performance. This range covers outdoor summer heat, unheated storage areas in winter, and high-humidity environments — no cable replacement between seasons.
- Each cable weighs just 22 grams: Light enough that four units add negligible weight to installation kits. Useful if you're shipping pre-configured camera nodes or managing labor-intensive outdoor deployments.
Compatibility & Integration
The Axis 02793-001 (often searched as 02793 001) works with AXIS F91 main units, AXIS F21 sensor units, AXIS F4105-LRE Dome Sensors, and AXIS F7225-RE Pinhole Sensors. If you're mixing sensor types in a single F Series network — say, a dome on the perimeter and a pinhole indoors — these cables provide standardized interconnects across the entire system. Check your modular camera Axis F Series configuration to confirm connector type before ordering.
Standards & Durability
SMA FAKRA connectors are certified to ULCM E164469-F5 and UN ECE R118 standards, ensuring mechanical and electrical compliance. Black cable construction is rated for extended lifespan in outdoor and industrial settings. The 3-year manufacturer warranty covers material defects and manufacturing faults.
When to Choose a Different Approach
If you need cables longer than 1 meter, look for alternative lengths within the same TU6007 family. If your modular camera system uses a different connector type (non-SMA FAKRA), verify compatibility with the specific F Series main unit before purchase. For full submersion or extremely high-pressure wash environments, confirm IP67 is sufficient for your use case — full submersion may require additional shielding or conduit.
Frequently Asked Questions
Q: Are these cables compatible with all Axis F Series modular cameras?
A: The Axis 02793-001 works with second-generation F Series systems using SMA FAKRA connectors, including F91 main units and F21, F4105-LRE, and F7225-RE sensor units. Verify your specific system before ordering.
Q: Can I use these cables outdoors year-round?
A: Yes. The operating range of −40°C to 75°C and IP66/IP67 ratings support outdoor deployment in most climates. In extreme cold (below −40°C), consult the manufacturer on material brittleness.
Q: What is the warranty on the Axis 02793-001?
A: Three-year manufacturer warranty covers material and manufacturing defects.
Q: Can I bend or coil these cables tightly?
A: The 30 mm minimum bend radius allows tight routing in conduit and cable trays. Avoid sharper bends, which may damage the cable or connectors.
Q: Will these cables work with older Axis F Series models?
A: These are designed for second-generation F Series systems. Older first-generation F Series may use different connector types — verify connector compatibility with your main unit before purchase.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02793-001 is a straightforward but critical component for anyone deploying modular F Series surveillance networks. It's easy to overlook cabling when scoping a project, but connector quality and environmental rating directly impact mean-time-between-failure in outdoor and harsh-environment installations. The IP66/IP67 rating on these SMA FAKRA connectors means you won't see corrosion-induced signal loss after a season of moisture exposure — a real advantage in parking structures, marshalling yards, and cold-storage facilities.
Technical Highlights:
- IP66 and IP67 connector rating: Blocks dust and water spray reliably; IP67 handles brief submersion. This eliminates a common failure point in outdoor modular camera deployments.
- 50 Ohm impedance with 0–3 GHz bandwidth: Impedance match prevents reflections across the 1-meter span. You get clean, unattenuated signal from sensor to main unit — no picture degradation due to cable loss.
- Compact 3 mm diameter, 30 mm bend radius: Routing is never a friction point. Tight conduit runs, equipment racks, and complex cable paths don't force you to upsize conduit or reroute entirely.
Deployment Considerations:
- Length lock-in: These are 1-meter fixed cables. If you need variable distances, plan your sensor-to-main-unit layout before ordering, or buy multiple packs and coil excess cable — which works but adds bulk.
- Connector type: SMA FAKRA connectors are specific to second-generation F Series. First-generation F Series or non-Axis modular systems won't accept these — verify before purchase to avoid returns.
- Bend radius compliance: The 30 mm minimum bend radius is generous for most installations, but sharp crimps or wrapping around tight poles can damage the cable jacket and connectors. Route deliberately, not haphazardly.
For warehouse automation integrators or security teams deploying distributed modular camera nodes across large outdoor footprints, the Axis 02793-001 pack-of-four approach is pragmatic — you get cables, spares, and confidence that all four units carry identical specs and warranty. Buy multiples if you're scaling across several buildings or if your installation involves future sensor additions.
