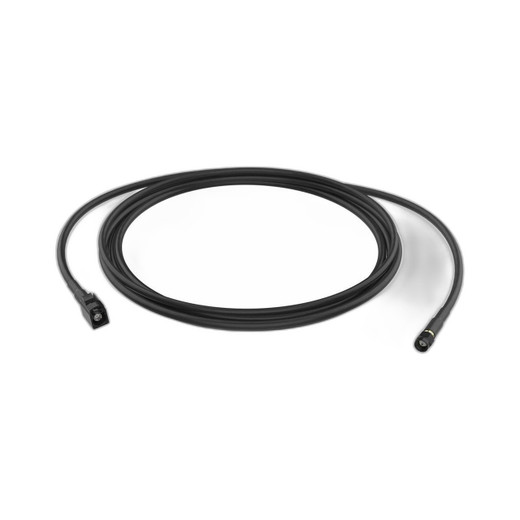

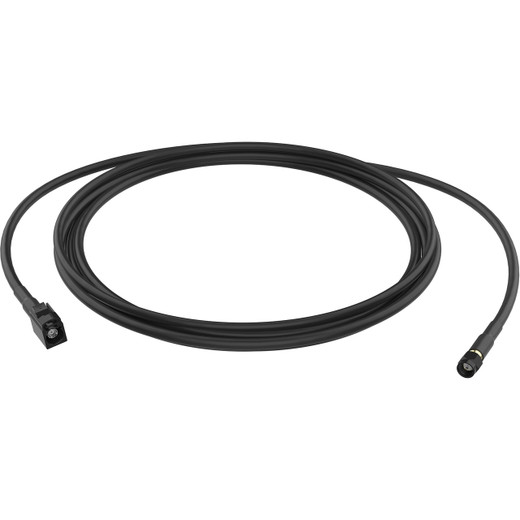

Axis 02266-001 TU6005 8m Plenum Cable
Overview
The Axis 02266-001 is a plenum-rated network cable engineered for surveillance system installations in air handling spaces, return air plenums, and other fire-code-restricted environments. Length is 8 meters, providing the reach needed to bridge camera to network infrastructure without intermediate junction boxes in many warehouse, industrial, and commercial deployments.
Plenum rating means this cable meets fire safety codes (typically UL 910 or equivalent) that mandate low-smoke, low-halogen jacket material in spaces where air circulation systems pull conditioned air. Skip standard PVC cables in these zones—they generate toxic fumes if exposed to fire. The 02266-001 handles that compliance requirement without additional conduit or raceways.
Key Features
- Plenum-Rated Jacket: Low-smoke, low-halogen construction ensures compliance with building fire codes in HVAC return paths, ceiling cavities, and other air-handling spaces. Eliminates the need for costly conduit when running cable through these restricted areas.
- 8-Meter Length: Provides substantial reach between wall-mounted cameras, dome fixtures, or network endpoints without requiring additional splices. Reduces installation time and minimizes connection points that can degrade signal integrity.
- Network-Grade Shielding: Built for stable, reliable connections in surveillance systems. Shielding reduces electromagnetic interference (EMI) from industrial equipment, fluorescent ballasts, and HVAC controllers—especially important in manufacturing and warehouse floors.
- Durable Jacket Material: Designed to withstand handling during installation, temperature fluctuations in unconditioned spaces, and long-term exposure to UV and environmental stress without cracking or degradation.
Integration & Compatibility
The TU6005 cable is engineered for use with Axis IP cameras and related network devices across the Axis surveillance portfolio. It supports standard Ethernet connectivity for power delivery and video transport, making it compatible with PoE-enabled network switches and inline power injectors. When integrating with a network video recorder or management system, verify that your NVR's camera input ports support the connector type at each end of this cable.
Consult your cable run planning and PoE power budget documentation to confirm that cable resistance over 8 meters does not significantly reduce voltage delivery to your camera. In most standard 802.3af or 802.3at deployments, an 8-meter run will not be problematic, but longer combined runs (camera to switch plus daisy-chained cables) may require higher-power PoE variants or careful amp calculations.
What's in the Box
- 1x Axis TU6005 8 m Plenum Cable
When to Choose a Different Cable
If your installation does not pass through plenum spaces or air-handling cavities, standard Ethernet cable will cost less and is sufficient. Plenum rating adds expense and is only required by code in specific HVAC-adjacent routes. For runs longer than 8 meters, consider a 15-meter or custom-length plenum variant if available in your region, or plan intermediate connection points with managed inline connectors.
Frequently Asked Questions
Q: Is the Axis 02266-001 suitable for outdoor camera runs?
A: No. Plenum cable is rated for indoor, fire-code-restricted spaces. For outdoor exposures, use UV-resistant, outdoor-rated Ethernet cable with appropriate waterproof connectors. Check with your system integrator for outdoor cable recommendations.
Q: Does the 02266-001 cable carry both power and video?
A: Yes. As a standard Ethernet cable, it supports PoE (Power over Ethernet) and IP video transport simultaneously. A single run delivers both 48VDC power and data to your camera.
Q: What is the maximum PoE current this cable can safely deliver?
A: Standard 802.3af and 802.3at PoE operate over unshielded and shielded Ethernet similarly. At 8 meters, voltage drop is minimal for standard cameras drawing under 15W. If your camera draws more than 25W, use 802.3bt (PoE++) or verify your switch's power budget and cable gauge specifications.
Q: Can I run the 02266-001 in a conduit alongside other services?
A: Yes. Plenum cable is safe to bundle with other plenum-rated cables. Avoid running alongside unshielded power lines; maintain separation or use grounded conduit to minimize EMI coupling.
Q: What building codes enforce plenum cable use?
A: National Electrical Code (NEC) Article 800 and local amendments mandate plenum-rated cable in return air plenums and certain HVAC cavities. Your building inspector or integrator can confirm whether your specific run requires it.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02266-001 (often searched as 02266 001) is a straightforward but critical compliance component. In my experience, plenum cable gets overlooked by integrators working on tight schedules, and then the building inspector flags the installation. The 8-meter length and fire-safe jacket on this cable eliminate that headache—if your route passes through a return air space or HVAC cavity, this is the cable you need.
Technical Highlights:
- Plenum-Rated (UL 910 or equivalent): Low-smoke, low-halogen jacket ensures compliance with NEC Article 800 in restricted spaces. Costs more than standard cable, but mandatory where code applies—there is no workaround.
- 8-Meter Length: Sufficient for most indoor wall-to-switch or camera-to-junction runs without intermediate splices. Longer runs risk voltage drop under high PoE loads; plan multi-cable runs carefully.
- Network-Grade Shielding: Reduces EMI ingress in industrial environments—important when routing near VFD motors, high-power lighting, or HVAC contactors that generate electrical noise.
Deployment Considerations:
- Code Verification Required: Not all cable routes require plenum cable. Verify with your Authority Having Jurisdiction (AHJ) or building inspector. Unnecessary plenum cable adds cost without benefit in non-plenum spaces.
- PoE Voltage Drop: At 8 meters with standard 24-gauge cable, voltage drop under 802.3af or 802.3at is negligible for cameras under 15W. If you're chaining multiple cables or using high-power cameras, perform a voltage drop calculation before deployment.
- Connector Type Compatibility: Verify the cable termination (RJ-45, M12, etc.) matches your camera and switch ports. The 02266-001 datasheet should specify the exact connector type—confirm before ordering.
The 02266-001 is essential for warehouse, manufacturing floor, and commercial HVAC system integrations where building code mandates plenum-rated cable in air handling spaces. In standard IT closet or non-plenum routes, save the expense and use standard Ethernet. This cable is the right choice only when the route demands it—but when it does, it's non-negotiable.
