Axis T98A17-VE Surveillance Cabinet Enclosure - 5900-171

Axis T98A17-VE Surveillance Cabinet Enclosure

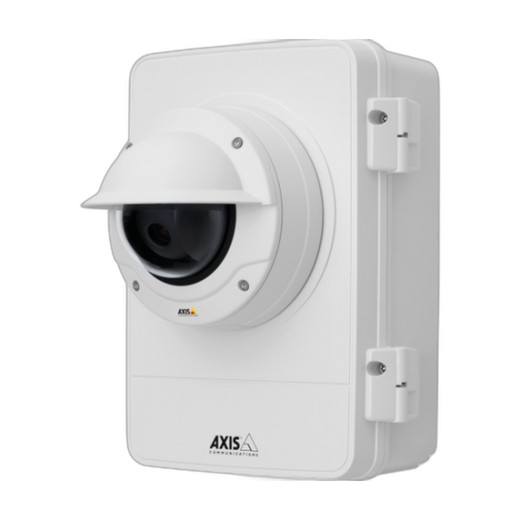

The Axis T98A17-VE Surveillance Cabinet (SKU: 5900-171) is a professional-grade outdoor enclosure engineered to protect and organize surveillance infrastructure in demanding environments. Built to withstand extreme weather, physical impact, and vandalism, this cabinet provides a secure housing solution for camera systems and associated networking equipment. The integrated door-mount design enables direct camera installation, creating a compact, integrated surveillance solution ideal for perimeter security, traffic monitoring, and outdoor facility protection.

Key Features

• IP66 & IK10 Rating: Sealed against dust and high-pressure water jets with impact resistance up to 20 joules, ensuring reliable operation in harsh outdoor conditions
• NEMA 4X Compliance: Corrosion-resistant construction suitable for coastal and chemically aggressive environments

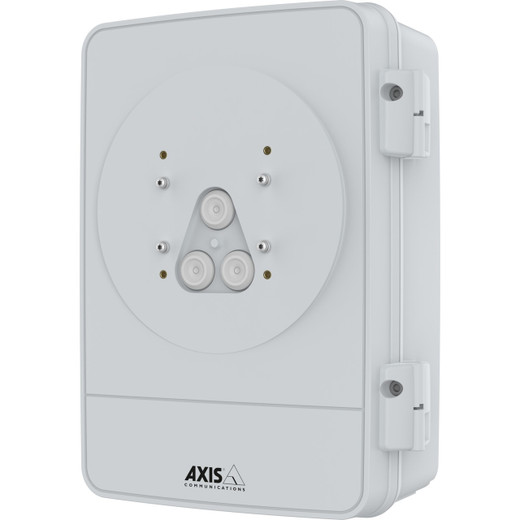

• Integrated Camera Mount: Door-mounted installation bracket supports AXIS P33-VE/-LVE series cameras for streamlined deployment
• Flexible Mounting Options: Wall mounting, DIN-rail integration, and device mounting accommodate diverse installation requirements
• Electrical Safety Cover: Included safety cover ensures code compliance and protects internal components from accidental contact

Technical Specifications

• Form Factor: Surveillance Cabinet
• IP Rating: IP66 (dust-tight, high-pressure water protection)
• Impact Rating: IK10 (20-joule impact resistance)
• Compatible Cameras: AXIS P33-VE/-LVE series
• Part Number: 5900-171

Applications

This cabinet is ideal for outdoor surveillance deployments requiring integrated, weatherproof housing. Common applications include perimeter fencing, parking lot monitoring, traffic enforcement, industrial facility security, and remote site surveillance where environmental protection and compact design are critical.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The T98A17-VE represents a practical solution for integrating Axis P33-VE/-LVE series compact box cameras into outdoor installations. The IP66/IK10 ratings ensure reliability in wet and high-impact environments, while NEMA 4X certification extends service life in corrosive settings. The door-mount design eliminates external bracket requirements, reducing installation complexity and maintaining a compact footprint.

This cabinet is particularly valuable for deployments where space is limited and direct camera mounting within the enclosure improves system aesthetics and security. Organizations seeking turnkey outdoor camera protection with minimal additional hardware will find this enclosure efficient and cost-effective.
