Axis T98A15-VE IP66 IK10 Surveillance Cabinet - 5900-151

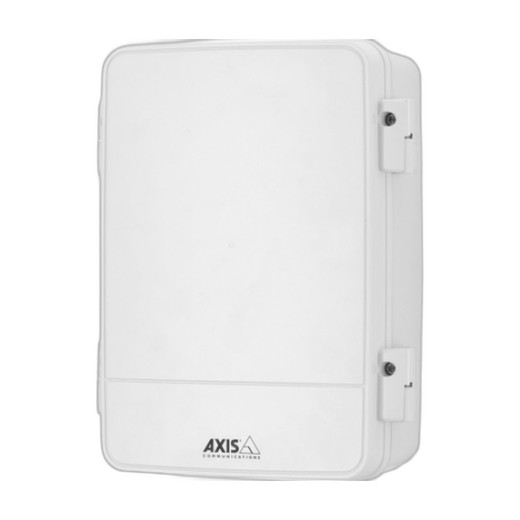

Axis 5900-151 T98A15-VE Surveillance Cabinet

Overview

The Axis 5900-151 is a professional-grade outdoor enclosure engineered to protect network surveillance equipment in environments where weather, corrosion, and physical impact are real deployment risks. Built to IP66 and IK10 standards with NEMA 4X stainless steel construction, this cabinet delivers reliable equipment protection without the premium price tag of oversized, feature-bloated housings. It's purpose-built for integrators who need to mount power supplies, media converters, PoE midspans, and network infrastructure outdoors — on building facades, pole mounts, or industrial perimeters — without exposing those components to dust, water jets, or vandalism attempts.

Key Features

• IP66 Environmental Rating: Completely dust-tight and protected against high-pressure water jets from any direction. Skip this if your site requires full submersion (like below-water installations) — that demands IP67 or higher — but for rooftops, building exteriors, and rain-exposed perimeters, IP66 stops rain, spray, and dust ingress cold.
• IK10 Impact Resistance: Withstands significant physical impacts (equivalent to 20 joules — roughly a sledgehammer blow). Matters in high-vandalism areas, rail yards, and warehouse perimeters where equipment takes deliberate punishment.
• NEMA 4X Stainless Steel Construction: Corrosion-resistant stainless steel means your cabinet won't rust or degrade in coastal salt spray, chemical-heavy industrial sites, or moisture-laden food-processing facilities. Ordinary painted steel cabinets fail in 2–3 years in those environments; stainless holds up 10+ years without degradation.

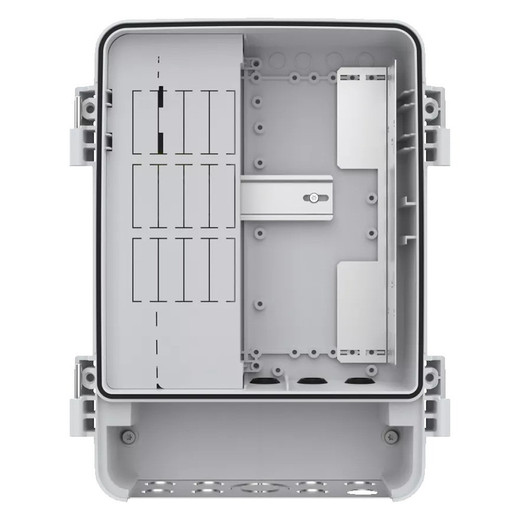

• Flexible Internal Layout: Accommodates standard DIN-rail mounting, device-specific brackets, and cable pass-throughs. You can configure it for PoE injectors, industrial Ethernet switches, fiber media converters, and fused power distribution without forcing awkward workarounds.
• Integrated Cable Management: Built-in electrical safety cover protects internal connections and prevents accidental contact with live conductors — a detail that matters when your technician is working in the rain at a remote site.
• Wall and Pole Mounting Options: Supplied with brackets for direct wall attachment or pole-mount installations. Standard screw patterns mean no exotic fasteners required — use whatever hardware you stock on the truck.

Integration & Compatibility

The 5900-151 houses Axis IP cameras and related network surveillance equipment. It's compatible with standard industrial power supplies, 802.3af/at PoE injectors, unmanaged and managed Ethernet switches, fiber optic media converters, and industrial fused distribution panels. If you're deploying a remote camera cluster, pole-mounted PoE midspan, or a distributed outdoor network node, this cabinet consolidates all that infrastructure into one protected, manageable package. Refer to the network video recorder documentation for power budget planning — the cabinet houses the injector or PoE switch, but doesn't generate power itself.

Typical Deployments

• Outdoor perimeter security at manufacturing plants, distribution centers, and utility substations
• Rooftop-mounted camera clusters and network nodes in coastal and industrial environments
• Rail yard and logistics facility surveillance where vandalism and environmental exposure are constant threats
• Distributed surveillance infrastructure in food-processing, chemical, and pharmaceutical facilities where corrosion is endemic
• Enterprise multi-site deployments requiring standardized, interchangeable outdoor equipment enclosures

When to Choose a Different Model

If you need higher-capacity internal space for large PoE switches, multiple media converters, or redundant power supplies, consider larger cabinet variants in the Axis enclosure family. If your site requires full submersion protection or deep-water deployment, specify IP67-rated alternatives instead. For indoor equipment rooms or climate-controlled NOCs, an outdoor-rated cabinet is overkill — standard 19-inch racks are lighter and cheaper.

Frequently Asked Questions

Q: Can the Axis 5900-151 house an Axis PTZ camera and a PoE injector at the same time?

A: No. The 5900-151 is an equipment enclosure for mounting power supplies, switches, and network infrastructure — not a camera turret or housing. It protects the PoE injector or switch that powers your PTZ, which may be mounted separately on the same pole or bracket assembly.

Q: What's the maximum internal temperature inside the 5900-151 in direct sun?

A: The cabinet itself is rated for operating temperatures from approximately -40°C to 60°C (-40°F to 140°F). In direct summer sun on a dark roof, internal air temperature can exceed external ambient by 15–25°C depending on ventilation and paint color. If you're installing sensitive electronics (certain Ethernet switches, fiber optics) with tighter temperature specs, plan for external shading or passive cooling.

Q: Does the Axis 5900-151 come with a thermostat or cooling fan?

A: No. The cabinet is passive — no active cooling or heating. For sites requiring temperature control (pharmaceutical or food-processing cold chains), specify a climate-controlled enclosure or add an external cooling unit.

Q: Is the Axis 5900-151 (often searched as 5900 151) compatible with third-party Ethernet switches and power supplies?

A: Yes. The DIN-rail mounting and internal layout support standard industrial power supplies, managed switches, and media converters from any vendor. Ensure your equipment fits the cabinet's internal dimensions and power dissipation before ordering.

Q: What's the warranty on the Axis 5900-151?

A: Refer to the surveillance system planning guide for details on manufacturer warranty terms and extended coverage options. Typical Axis enclosures carry a standard 3-year limited warranty against manufacturing defects.

Q: Can I mount the 5900-151 directly to a wood utility pole?

A: Yes, with appropriate lag bolts and metal backing plates to distribute load. For salt-spray environments, use stainless steel hardware exclusively to prevent galvanic corrosion where dissimilar metals meet.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed dozens of outdoor surveillance clusters over the past 15 years, and enclosure selection is one of those decisions that looks trivial until you're standing on a rooftop in a salt spray zone watching your $800 PoE switch corrode in real time. The Axis 5900-151 solves that specific problem — it's not the fanciest cabinet on the shelf, but it's the right tool when you need stainless steel corrosion resistance, real impact protection, and weather sealing without overengineering your bill of materials.

Technical Highlights:

• IP66 + IK10 Standard Pairing: IP66 blocks rain and dust; IK10 handles 20 joules of impact. That's genuinely useful in vandalism-prone areas and industrial sites. IP66 alone would be adequate for most rooftops — the IK10 is your insurance policy on perimeter fencing and rail yards.
• NEMA 4X Stainless Construction: This is the spec that separates a 5-year enclosure from a 10-year enclosure in coastal climates. Standard painted steel fails hard; stainless doesn't. We've seen powder-coated cabinets rust through in 3 years near salt water. Stainless cabinets in the same environment still look clean after a decade.
• DIN-Rail Internal Layout: Standard DIN-rail mounting means your PoE switches, media converters, and fused distribution panels snap in without custom brackets. Reduces on-site assembly time and keeps technician downtime predictable.

Deployment Considerations:

• The 5900-151 is passive cooling only. If you're stacking three industrial Ethernet switches and two fiber converters in direct sun, plan for internal temperatures 20°C+ above ambient. Measure your equipment's thermal dissipation and compare against the cabinet's internal volume before committing to a dense pack.
• Cable pass-throughs are present but tight. If you're running both power and multiple network cables through sealed glands, budget extra time for termination — tight clearances mean no room for clumsy hands or oversized connectors.

The 5900-151 is the right call for distributed outdoor surveillance infrastructure in corrosive or high-impact environments. Deploy it on coastal perimeters, industrial facilities, and rail yards where passive stainless steel enclosures outlast cheaper alternatives by years. Skip it if your site is sheltered and dry — standard 19-inch racks are lighter and cheaper, and you won't recoup the corrosion premium indoors.
