Exit Buttons
Showing Results for Exit Buttons
-
Camden
SKU: CM-1220
Camden Key Switch SPDT N/O \& N/C Momentary - CM-1220
- SPDT momentary contacts switch N/O and N/C simultaneously for multi-load door control.
- Rated 30VDC, compatible with standard electric strike and electromagnetic lock power supplies.
- One-piece stainless steel cast housing resists corrosion and vandalism at high-traffic entries.
$144.00 $88.99 Save $55.01The item has been added -
Camden
SKU: CM-1120
Camden Key Switch, SPDT N/O \& N/C Momentary
SPDT momentary key switch for HID access control at 30VDC
- SPDT N/O & N/C outputs eliminate relay overhead in single- or multi-door deployments.
- 30VDC operation integrates directly with standard access control panels—no voltage conversion needed.
- Die-cast aluminum housing with tamperproof screws resists vandalism at high-traffic entry points.
$131.00 $80.99 Save $50.01The item has been added -
Add to Cart The item has been addedCamden
SKU: CM-450R/12
Camden Mushroom Push button single gang stainless - CM-450R/12
- Recessed 1 5/8" mushroom head prevents accidental activation in high-traffic areas.
- Operates at 12–24V AC/DC, compatible with standard access control power supplies.
- Stacked NO/NC contact blocks support up to three switching outputs per block.
In stock · Ships same business day$145.00 $88.99 Save $56.01The item has been added -
Camden
SKU: CM-4000/51N
Camden N/C switch block and contact for - CM-4000/51N
- N/C configuration keeps doors locked by default, maintaining security through power loss.
- Rated 30VDC — direct drop-in with standard electric strike and mag-lock power supplies.
- TCP/IP communication supports multi-controller campus deployments without serial daisy-chaining.
$41.00 $25.99 Save $15.01The item has been added -
Camden
SKU: CM-4000/54N
Camden N/O \& N/C switch block and contact for - CM-4000/54N
- Dual N/O and N/C relay outputs let you wire failsafe and failsecure locks on one door.
- 30VDC contact block drives electric strikes and mag-locks without an external power supply.
- Expands CM-4000 through CM-8000 controllers with no extra harness or wiring adapters needed.
$52.00 $31.99 Save $20.01The item has been added -
Camden
SKU: CM-4000/50N
Camden N/O switch block and contact for - CM-4000/50N
- N/O relay holds fail-secure on strikes and maglocks when power is lost.
- Supports DESFire, MIFARE, HID iClass, SEOS, and 125kHz prox on one reader.
- TCP/IP integration enables real-time credential updates across CM-3000–8000 controllers.
$41.00 $24.99 Save $16.01The item has been added -
Camden
SKU: CM-25
Camden Narrow push plate switch vertical mounting - CM-25
- ADA-compliant low-actuation-force design suits high-traffic accessible entryways.
- Rated 3A @ 30VDC SPST N.O.; compatible with electric strikes and mag-locks.
- Mounts in a standard double gang box; stainless steel build for durability.
$153.99The item has been added -
Camden
SKU: CM-120TX

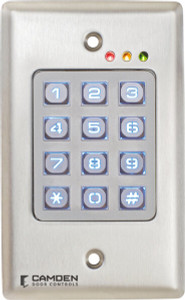

Camden Outdoor vandal resistant metal backlit keypad - CM-120TX
- Battery-operated 915 MHz wireless eliminates conduit runs in outdoor deployments.
- Supports 999 unique PIN codes with 1–8 digit variable-length entries per user.
- Stainless steel vandal-resistant faceplate installs flush in a standard single-gang box.
$375.00 $226.99 Save $148.01The item has been added -
Add to Cart The item has been addedCamden
SKU: CM-120wV2
Camden Outdoor vandal resistant metal backlit keypad - CM-120wV2
- Vandal-resistant metal housing and backlit keypad sustain outdoor exposure reliably.
- Wiegand output integrates directly with standard access control panels and door strikes.
- Supports up to 999 users and accepts HID credentials on 24VDC power.
In stock · Ships same business day$225.00 $220.99 Save $4.01The item has been added -
Camden
SKU: CM-4040
Camden Push/Pull N/C Maintained Red Only - CM-4040
- Fail-secure N/C logic locks immediately on power loss, eliminating solenoid fatigue.
- Push/pull mechanism supports both door swing orientations from a single strike unit.
$99.31 $67.99 Save $31.32The item has been added -
Camden
SKU: CM-5040
Camden Push/Pull N/C Maintained Red Only - CM-5040
- Fail-secure N/C logic stays locked on power loss, eliminating relay-chatter unlock risk.
- 30VDC operation integrates directly with standard access control power supplies.
- Push/pull mechanism supports either door swing direction without mechanical reversal.
$130.00 $79.99 Save $50.01The item has been added -
Camden
SKU: CM-4050
Camden Push/Pull N/O \& N/C Maintained Red Only - CM-4050
- Dual N/O & N/C maintained contacts eliminate external relay wiring for fail-safe or fail-secure logic.
- Rated 15A @ 30VDC continuous — verify panel strike driver sustains load without voltage sag.
- Accepts push-to-open and pull-to-open frame mounting in a compact 4.50" × 4.50" × 1.75" body.
$152.00 $93.99 Save $58.01The item has been added -
Camden
SKU: CM-5050
Camden Push/Pull N/O \& N/C Maintained Red Only - CM-5050
- Dual N/O & N/C outputs let you wire fail-safe and fail-secure from one device.
- Maintained 30VDC action holds unlocked state without relay flicker or secondary logic.
- 6A switching capacity supports direct solenoid or relay coil control at the strike.
$158.00 $96.99 Save $61.01The item has been added -
Camden
SKU: CM-4030
Camden Push/Pull, N/O, Maintained, Red Only
Push/pull strike lock, 30VDC maintained, red indicator for door access
- Normally open maintained operation engages continuously when 30VDC powered
- Push/pull control integrates into doorframe installations for access control
- Red-only indicator provides visual status feedback during lock operation
$141.00 $86.99 Save $54.01The item has been added -
Camden
SKU: CM-5070
Camden Push/Turn to Release N/C Maintained Red Only - CM-5070
- N/C maintained contact rated 6A @ 30VDC sustains release while coil remains energized.
- 2 3/8" red push/turn button provides mechanical egress independent of panel power or network.
- Bayonet interlocking design stacks contact blocks for auxiliary door sensor or alarm bypass.
$158.00 $96.99 Save $61.01The item has been added -
Camden
SKU: CM-6040
Camden Red Push To Lock Key To Release N/C Maintained - CM-6040
- Push-to-lock, N/C maintained logic keeps door secured whenever 30VDC power is present.
- Key-release mechanical override enables emergency egress or maintenance without system access.
- Red housing aids low-light visibility; fits double-gang and 4×4 box preparations.
$203.00 $124.99 Save $78.01The item has been added
Exit Buttons
Exit buttons, also known as request-to-exit (REX) devices, allow occupants to safely unlock doors from the secured side. Proper selection ensures reliable operation, life-safety compliance, and smooth integration with your access control system.
Plan Your Deployment
- Fail-safe vs fail-secure door configuration
- Door type and mounting location
- Integration with controller inputs and timing rules
- Local fire and life-safety code compliance
- Durability and vandal-resistant requirements
Exit Buttons — Engineering-Grade Door Hardware for Commercial Deployments
This category covers 105 working models of exit buttons sourced manufacturer-direct or through channel-direct US distribution. Build the rest of your system around the architectural choices below — compatibility, environmental rating, and lifecycle decisions made here propagate through every downstream component you specify.
What to Look For
Fail-safe versus fail-secure determines what happens during power loss. Fail-safe locks unlock on power loss (used on egress doors where life safety dominates); fail-secure locks remain locked (used on storage, server rooms, and exterior doors where security dominates). Code typically mandates fail-safe on stairwell and egress doors. Confirm with the AHJ before specifying — misapplied lock mode is a common code violation.
Strike, mortise, magnetic lock, and electrified panic hardware each have distinct installation, current draw, and code implications. Electric strikes work with most mechanical locksets and are easiest to retrofit. Magnetic locks (maglocks) provide high holding force on glass and wood doors but require dedicated REX and panic-bar interfaces for egress compliance. Verify the door's existing prep before choosing.
Power draw and inrush current dictate power supply sizing. A 5-door system with 1A peak per lock can exceed an undersized 12VDC supply at simultaneous lock-down events. Account for accessories — REX motion sensors, door-position switches, electrified levers — when sizing the supply and the battery backup required for code compliance.
Tamper switches, door-position monitoring, and request-to-exit sensors generate the audit trail your security team needs. Mechanical contact switches are cheaper; magnetic reed switches resist tampering better. Pair each door with a position switch and a REX sensor at minimum — without door-position monitoring, you can't distinguish 'authorized entry' from 'door held open after authorized entry,' which is a common compliance gap.
Key Specs in This Category
| Spec | Available Options |
|---|---|
| Power | AC/DC |
| Type | Lock/Strike, Reader, Switch, Accessory, Credential, Controller, Diecast Aluminum Enclosure, 3-Button Control Station |
Top Brands in This Category
Frequently Asked Questions
Fail-safe or fail-secure for stairwell doors?
Fail-safe is mandatory on most stairwell doors and other code-designated egress paths — the lock must release on fire alarm or power loss to allow evacuation. Fail-secure on those doors is a code violation. Confirm the local fire code and AHJ requirements; commercial buildings in the U.S. follow NFPA 101 and the International Building Code, both of which detail egress lock behavior in detail.
What current draw should I plan for electrified locks?
Typical 12VDC electric strikes draw 200-500 mA continuous, with inrush spikes of 1-2A at engagement. Magnetic locks rated for 1,200 lbs holding force draw around 500 mA continuous at 24VDC. Power supplies need to handle simultaneous lock-down current — emergency lockdown events activate all locks at once. Size the supply with at least 25% headroom and confirm battery backup runtime requirements.
Do I need a request-to-exit (REX) sensor?
Most code-compliant electrified door installations require a REX sensor to shunt the alarm during authorized egress. Without REX, every egress event registers as a forced-door alarm. PIR motion sensors are the common choice and integrate with the door controller's REX input. Mechanical push-bar REX is also acceptable for hardware that includes that switch natively.
Can I use one lock for both card and mechanical key entry?
Yes — most electrified strikes and locks allow mechanical key override on the same door. Maintaining a master key for emergency mechanical access is required by code in many jurisdictions and recommended in all. Document the master key holders carefully; an uncontrolled master key program undermines the electronic audit trail.
What's the lifespan of a magnetic lock?
Quality maglocks (Securitron M62, HES, von Duprin) typically last 15-20 years with no mechanical wear. Failure points are the connector, the armature plate-to-lock alignment, and contamination of the magnetic face. Plan for armature replacement at year 10 as a hedge against alignment drift. Strike-type locks with mechanical parts last 5-10 years before strike-plate wear becomes a reliability issue.
