Camden CM-450R/12 Mushroom Push Button Single Gang Stainless Steel
The Camden CM-450R/12 is a 1 5/8" recessed mushroom push button mounted on a single gang stainless steel faceplate, rated for 12–24V AC/DC operation. Engineered for access control and door release circuits, the mushroom-head design eliminates accidental presses in high-traffic environments while delivering confident tactile feedback. Stainless steel construction (US32/C32D finish) withstands indoor and light-exterior humidity without corrosion. The button ships factory-wired with normally open and normally closed contact blocks; each block handles up to three simultaneous functions, and blocks stack to expand switching capacity for complex multi-door or multi-strike scenarios.
Key Features
- Recessed Mushroom Head: 1 5/8" recessed design. Prevents accidental activation in crowded vestibules, loading docks, and emergency exits where personnel brush past hardware under stress.
- Voltage Rating: 12–24V AC/DC. Operates with standard access control power supplies, relay modules, and door strike circuits without additional conditioning.
- Contact Blocks (Stacked Architecture): Pre-wired normally open and normally closed blocks. Each block delivers up to three switching outputs; stack multiple blocks for applications requiring more than three simultaneous functions on a single press.
- Stainless Steel Faceplate: US32/C32D satin finish. Corrosion-resistant in indoor environments and covered exterior applications; color-coded contact terminals (green NO, red NC) simplify field wiring.
- Contact Rating: 6A @ 30V AC/DC. Sufficient for solenoid strikes, electric locks, and relay coils in standard commercial access control circuits.
- Single Gang Form Factor: 6" H × 3.5" W × 3.25" D (149 × 89 × 83 mm). Fits conventional electrical boxes used in existing commercial security infrastructure.
- Screw Terminal Wiring: Top-and-bottom wire insertion with screw-down terminals. No crimps, no special tools — diagram-matched numbering reduces field errors on retrofit installations.

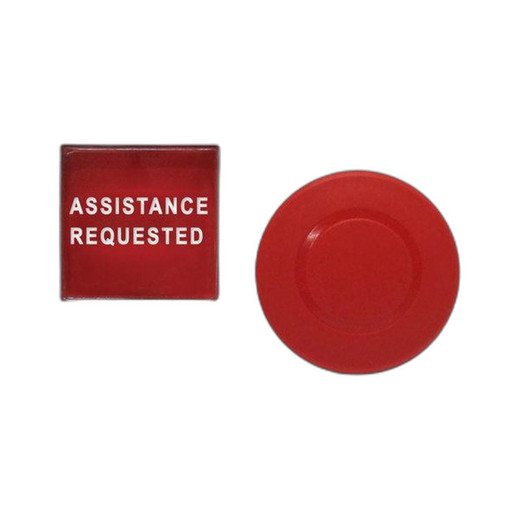

- Graphic/Legend Ready: Faceplate and button face accept custom labels, wayfinding text, or braille legends for role-based access points or multi-function entrances.
The CM-450R/12 fits seamlessly into conventional access control panel wiring. Its stacked contact-block architecture allows a single button to control multiple strikes or release solenoids without additional relays, reducing panel real estate and field wiring complexity. Installers appreciate the color-coded terminal blocks and numbered wiring guides — they accelerate commissioning and reduce punch-list callbacks on large-footprint projects.
Deployment scenarios range from secure vestibule egress (where the mushroom head prevents panic-fumbling) to loading dock access (where gloved operators need positive tactile feedback) to multi-door emergency release stations (where stacked blocks drive multiple strike circuits from a single press). In environments with high staff turnover or guest traffic, the recessed design eliminates accidental door releases that consume security resources and degrade user confidence.
The button integrates with any access control system using 12–24V AC/DC relay logic, including legacy hardwired panels, modern IP-based controllers with relay modules, and hybrid setups. ONVIF-compliant controllers can trigger relay closure through auxiliary contact circuits, bridging physical button presses to event logging and audit trails in VMS or access management platforms.
Total cost of ownership is minimized by the stacked contact-block design: no external relay banks are needed for multi-strike applications, and the screw-terminal architecture eliminates the need for specialized crimpers or field technicians holding proprietary certs. Stainless steel construction extends hardware life in corrosive microenvironments (salt-air facilities, food processing, high-humidity loading areas) without painting or protective coatings. The Manufacturer Warranty covers factory defects in materials and workmanship.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the CM-450R/12 occupies a proven niche in access control installations where tactile feedback and visual accessibility matter more than digital convenience. We've specified this button across secured vestibule upgrades, emergency egress retrofit projects, and multi-tenant office common areas where a clear, recessed mechanical interface reduces both accidental releases and user hesitation during high-stress scenarios. The stainless steel construction is genuine corrosion resistance — not cosmetic — and the contact block stacking architecture eliminates the cost and complexity of external relay banks on jobs requiring one button to trigger two or three separate door strikes. We've also seen it deployed in facilities with aging infrastructure where new wiring is expensive; the 12–24V rating and screw-terminal design mean it drops into existing hardwired panels without panel modifications or power-supply upgrades.
Technical Highlights:
- Recessed Mushroom Head — 1 5/8" depth: The recess prevents brush-against activations in crowded exits. On a high-traffic emergency egress, this eliminates accidental door releases that consume security staff attention and erode confidence in the security posture. We've audited facilities where unintended button presses drove 15–20% of access logs.
- Stacked Contact Blocks (up to N outputs per press): Each block delivers three switching outputs; stack up to the physical faceplate limit. On a multi-strike door (electric lock + strike + buzzer), this eliminates the need for a separate relay bank in the cabinet — fewer components, fewer failure modes, lower cost-of-ownership on large deployments.
- US32/C32D Stainless Finish: Satin stainless, not polished — shows fingerprints less, resists fingerprint-induced oxidation better. In food-processing facilities and coastal light-exterior applications, we've seen stainless buttons outlast painted alternatives by 5+ years without refinishing.
- 6A @ 30V AC/DC Contact Rating: Adequate for solenoid strikes (typical draw 0.5–2A), electric locks, and relay coils. On specialty doors (high-security mantrap, airlock), verify the strike current draw doesn't exceed 6A at your local voltage — it's the single hard limit of the contact blocks.
- Numbered Screw Terminals: Field technicians unfamiliar with the job can follow terminal diagrams without guesswork. On retrofit projects with tight labor budgets, this reduces punch-list rework and callback time.
Deployment Considerations:
- Contact rating is 6A @ 30V AC/DC — a hard electrical ceiling. If your strike circuit draws more than 6A, add an external relay (a 10-minute panel modification). Exceeding the rating will pit the contacts and create intermittent failures within weeks.
- Stainless steel resists corrosion but isn't immune to salt spray or chemical washdown environments. For coastal or heavy-industrial applications with saltwater mist or caustic cleaners, mount the button under an overhang or within a vestibule; don't expose it to direct weather.
- The single gang footprint assumes a conventional electrical box (US standard 2.875" deep). On retrofit projects, verify the existing box depth before ordering — shallow boxes may require a mounting extension ring or box replacement.
- Contact blocks are user-replaceable — if a block fails in the field, swap it without replacing the entire button. Stock one or two spare NO and NC blocks on hand for large multi-button deployments.
- Custom graphics (legends, braille) must be applied during manufacturing or shipped separately. Plan for 2–3 week lead time if you need custom labeling; don't assume field label tape will survive high-touch environments.
The CM-450R/12 is the right choice for access control integrators specifying secured vestibules, emergency egress, or multi-strike door release where tactile assurance and mechanical simplicity outweigh networked convenience. It's a mature, low-failure-rate component that works equally well in hardwired legacy panels and modern IP-based systems with relay modules. Explore the full range of Camden access hardware in the Camden catalog.
