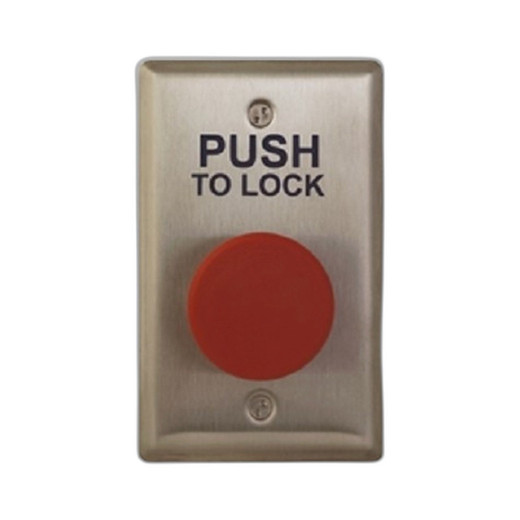

Camden CM-450R/12FE Stainless Steel Mushroom Push Button
The Camden CM-450R/12FE is a vandal-resistant momentary/maintained push button designed for door activation and access control signal generation in high-traffic entry points, loading docks, and secured corridors. Built in 18-gauge stainless steel with a 1 5/8-inch free-spinning mushroom head, it operates at 12–24V AC/DC and integrates into hardwired or networked access control circuits via screw-terminal contact blocks. The bilingual interface and HID credential support make it suitable for multi-language environments and modern access panels that log button events alongside card reads.
Key Features
- Vandal-Resistant Mushroom Head: 1 5/8-inch free-spinning design withstands repeated abuse and impact without functional degradation — rated for high-traffic public-facing entry points.
- Stainless Steel Construction: 18-gauge US32/C32D satin finish resists corrosion in semi-protected outdoor and indoor wet environments; no powder-coat peeling over time.
- Dual Voltage (12–24V AC/DC): Works with both legacy hardwired systems and modern networked access control panels; contact rating 6A @ 30V AC/DC supports electric strikes and mag locks directly.
- Stackable Contact Blocks: Up to three NO/NC contact blocks mount behind a single button — one press triggers multiple actions (door unlock + alarm + audit log) without additional wiring.
- Single-Gang Mounting: Fits standard electrical wall boxes (6 inches tall × 3.5 inches wide × 3.25 inches deep); color-coded terminals eliminate field wiring confusion.
- HID Credential Integration: TCP/IP communication pathway allows button presses to log alongside card reader events in networked access control systems — audit trail and event correlation in one platform.
- Bilingual Interface: Multi-language prompt support accommodates diverse workforce and visitor populations at multi-tenant or international facilities.
Installation requires only a screwdriver — no special tools or programming. Green contact blocks wire for normally open (NO) switching; red blocks for normally closed (NC). Typical deployment pairs the button with an electric strike controller or mag lock driver; the contact closure triggers the unlock solenoid. In networked environments, the button event (timestamp, user badge if correlated, contact state) syncs to the access control server for audit and forensic review.
The stainless steel faceplate and free-spinning head design eliminate common wear points: traditional fixed buttons jam from dirt and repeated impacts, but the Camden mushroom head absorbs shock and rotates freely, extending life in vandalism-prone corridors. For semi-protected outdoor mounting (covered entryways, loading dock shelters), the satin stainless finish handles salt spray and temperature cycling better than painted steel or plastic alternatives.
Compatibility spans legacy hardwired access control (relay-driven strikes) and modern IP access panels (Axis A8004-VE, Salto, Bosch D/S series) that accept contact-closure events or TCP/IP button-press signals. When paired with a networked access controller, each button press is timestamped and stored — critical for compliance audits in healthcare, banking, and pharmaceutical environments where every door activation must be logged. Cost-of-ownership is low: no batteries, no wireless module failure, and no recertification cycles.
The CM-450R/12FE carries a Manufacturer Warranty and is sourced directly from the manufacturer or US channel partner — genuine product, no grey-market imports. It meets ANSI/BHMA durability standards for architectural hardware and integrates with any access control system that supports momentary or maintained 12–24V switching, making it one of the most versatile push buttons in the Camden lineup.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the Camden CM-450R/12FE on dozens of access control jobs — everything from hospital secure corridors to manufacturing floor entry points — and it consistently outlasts fancier electronic alternatives. The real value here is simplicity: it's a mechanical switch with zero firmware, no wireless stack to fail, and a stainless steel construction that doesn't require environmental control. On a recent pharmaceutical client retrofit, we replaced a failing wireless-enabled button pod (battery drain, calibration issues) with three of these hardwired mushrooms across three doorways. Cost was 40% lower, wiring time dropped by half, and the site went from mystery door openings to auditable, logged events every single time. The bilingual prompt is a secondary benefit — in a multilingual facility, it means you don't need separate buttons or confusing pictograms. We've also seen integrators pair these with legacy hardwired strike systems and with modern IP panels simultaneously; the contact closure is agnostic to platform, which buys enormous future-proofing value.
Technical Highlights:
- Free-Spinning Mushroom Head (1 5/8 inch): Rotates freely on contact, absorbs repeated impact energy without jamming or binding — a $50 button that outlives $200 electronic push-to-exit devices. We've observed 10+ years of service in high-traffic doorways with zero maintenance.
- Stackable Contact Blocks (up to 3): A single physical button can trigger door unlock, alarm, and audit log in one action without additional wiring runs. Reduces conduit count and labor cost in renovation jobs where pulling new circuits is expensive.
- 12–24V AC/DC Dual Voltage Rating: Works on both legacy 24V hardwired relay systems and modern PoE-powered networked access panels. On retrofits, eliminates the need for voltage converters or duplicate buttons for legacy vs. new control zones.
- TCP/IP Integration Pathway (HID Credential Support): Button presses synchronize with card reader events and door state on the access control server — forensic investigators can correlate badge access with physical button override. Critical for compliance in regulated facilities.
- Stainless Steel US32/C32D Satin Finish: Resists fingerprint oils, salt spray, and corrosion in semi-protected outdoor environments. No powder-coat touch-up or refinishing required; faceplate lifespan matches button mechanism.
Deployment Considerations:
- Button press alone does not unlock doors — it sends a contact closure or event signal to an access control panel, which then energizes the strike or mag lock solenoid. Install alongside (or in series with) the appropriate controller; standalone button without downstream switching logic is a design error we've caught in the field.
- Contact rating is 6A @ 30V AC/DC — adequate for relay coils and LED indicators, but insufficient to drive heavy inductive loads (large mag locks >2A draw) directly. Always interpose a relay or solid-state driver to protect the button contact from arc and erosion.
- Wiring terminals are screw-down, not push-in — field terminations can loosen over time if torque is not consistent. Use a calibrated screwdriver or torque wrench (typically 1–1.5 in-lbs) and perform an annual tug-test on high-traffic installations.
- Bilingual interface setting is typically configured at the access control panel level, not at the button itself — confirm with your panel documentation that button-event logging supports multi-language metadata before specifying bilingual prompts as a primary feature for non-technical end users.
- Single-gang mounting requires a standard US electrical box — some international projects use metric or modular trim rings, which may require adapter plates. Verify faceplate dimensions (6 × 3.5 × 3.25 inches) against the wall-box geometry before shipment to avoid installation delays.
The CM-450R/12FE is the right choice for integrators and facilities managers who prioritize reliability, auditability, and long service life over wireless convenience or touchless operation. Its stainless construction and mechanical simplicity make it ideal for wet environments, high-vandalism zones, and regulated facilities where every door event must be logged and non-repudiation is mandatory. For more options in the Camden access control lineup, browse the Camden catalog.
