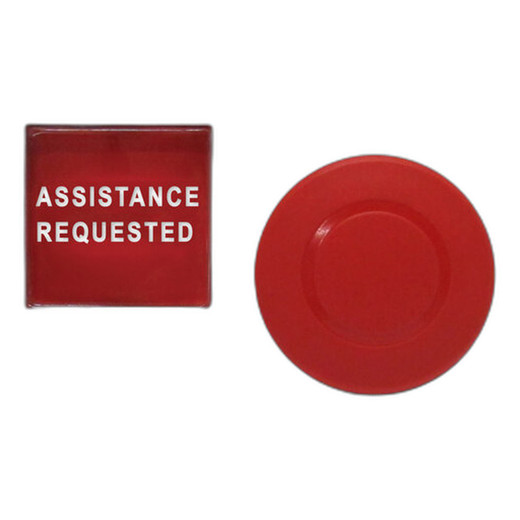

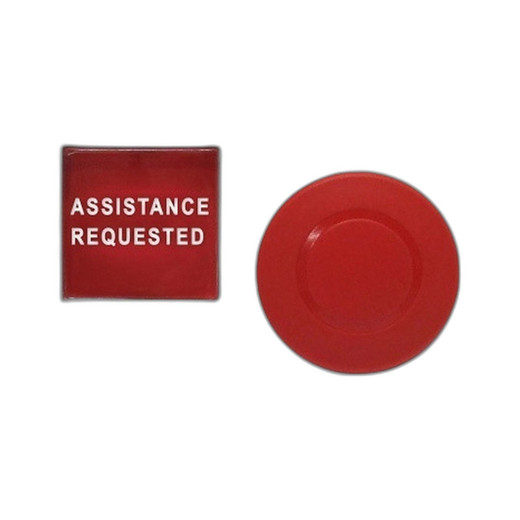

Camden Double gang, push/pull mushroom push button, red, \

The CM-AF540SO is a throwback piece of hardware that proves hardwired annunciators still have a place in modern access control. We've installed this across hospital call stations, secure psychiatric facilities, and emergency-exit vestibules where the last thing you want is a network hiccup blocking someone from pressing a button for help. The red mushroom is instantly recognizable—no training required, no credential fob needed—and the fact that it lights and sounds on a simple 12V loop means a nightshift janitor can troubleshoot it with a multimeter if the sounder stops working. The 6A contact rating is the real constraint here: it's fine for electric strikes and most electromagnetic locks, but if you're driving a heavy-duty fail-safe EM lock or stacking multiple devices, you'll need to interpose a relay. We've also seen integrators spec this into retrofits of older buildings where the electrical backbone is already 12V hardwired—adding a networked button would mean new runs and new power supplies. The dual-voltage operation (12–24V selectable) keeps BoM flat across mixed-voltage sites. The stainless faceplate holds up in damp environments, though outdoor pole-mounted installations absolutely need a weather box—the faceplate is corrosion-resistant, not weatherproof. One operational note: the sounder volume is adjustable but tamper-protected. We've had one facility where a confused visitor kept jamming the button because the sounder wasn't loud enough to be heard over a door-slam, but they couldn't turn it up without the key. Know your sound-pressure-level requirements and test the sounder in situ before final sign-off.

Technical Highlights:

• Relay Contact Rating (6A @ 30V AC/DC): Direct-drive electric strikes and most EM locks draw 2–4A; verify your hardware current spec. Higher loads require an interposing relay coil (24V relay pulls 50–100mA, well within the contact rating). This is not a limitation if you understand it upfront—it's actually a feature because it forces proper circuit design.
• Dual-Voltage Input (12–24V AC/DC): Field-selectable via internal jumper or strap. Eliminates the need to stock two SKUs; one unit works in both 12V and 24V environments. Typical current draw is 40–80mA, so a small 24V supply can power multiple units.
• Illuminated Lens + Adjustable Sounder: The LED-backed lens confirms button activation to the user; the sounder alerts staff. Tamperproof volume control prevents accidental de-tuning. In a care facility with constant foot traffic, consistent audible feedback is critical.
• Hardwired N.O./N.C. Contacts: Both are available and independently rated. You can wire N.O. to trigger a strike and N.C. to a time clock or annunciator panel—no software configuration needed.
• Stainless Steel US32/C32D Faceplate: Standard satin stainless finish resists fingerprints and light corrosion. Depth is 1.5 inches, critical for retrofit applications where electrical boxes are shallow.

Deployment Considerations:

• Verify strike or EM-lock current draw before ordering. If it exceeds 6A, you must add a relay; factoring relay cost into project budgets prevents post-install surprises.
• Double gang electrical box recess depth must be at least 1.5 inches. Measure the existing box before specifying; shallow residential boxes will not accommodate this unit.
• Outdoor pole-mounted installations require a NEMA-rated weatherproof enclosure around the button assembly. The stainless faceplate is not IP-rated or designed for direct weather exposure.
• Sounder volume is factory-set and tamper-locked. Conduct sound-pressure testing in the actual deployment environment (e.g., busy corridor, quiet care room) to confirm audibility before final installation.
• This device is hardwired only—it does not integrate with networked access-control systems, HID-based credential readers, or cloud platforms. Use it as a hardwired contact closure input to those systems if integration is required.

The CM-AF540SO is purpose-built for secure facilities, hospitals, and emergency-access areas where simplicity and zero-network-dependency are non-negotiable. If your project requires a button that works without IT involvement, survives a power cycle, and is debugged with a screwdriver and a meter, this is the right choice. Explore the full Camden catalog for complementary hardwired strikes, electromagnetic locks, and door-control hardware.
