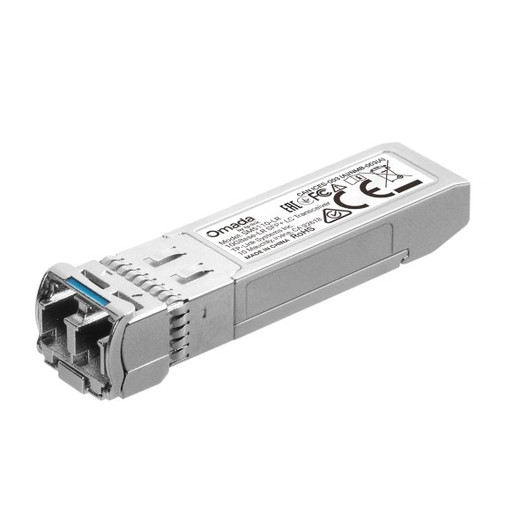

TP-Link SM5110-LR Omada 10Gbase-LR SFP+ LC Transceiver

We've deployed the SM5110-LR across multi-building enterprise and larger surveillance networks where fiber backbones already exist or are cost-justified by distance. The real value of this transceiver is operational simplicity: it's a standard 10GBase-LR module that swaps into any TP-Link Omada switch with SFP+ slots, no special firmware or driver overhead, and it integrates cleanly into existing single-mode fiber runs. In security deployments, we use LR transceivers to stitch together multiple NVR sites or to feed upstream camera streams from distributed recording nodes to a central management site 3–8 km away. The 10 km reach eliminates the need for intermediate active equipment (repeaters, additional switches) and scales better than multiple bonded copper links. Compared to 10GBase-SR (300m, less expensive), the LR adds reach; compared to 40/100 GBase modules, the LR is cheaper, power-lighter, and sufficient for most camera and NVR integration trunks. That said, the weakness is port density and cost per gigabit on very high-traffic cores—if you need raw 40 Gbps+ backbone throughput, you'll want to evaluate TP-Link's 25/40 GBase switch models. And verify module type compatibility before ordering: a switch that supports SFP+ slots doesn't automatically recognize 10GBase-LR (it might only advertise SR or direct-attach support). Check the datasheet for explicit LR wavelength callout.

Technical Highlights:

• 1310 nm Single-Mode Wavelength & 10 km Reach: Standard ITU C-band (1310 nm) is optimized for low-dispersion propagation in G.652 single-mode fiber. 10 km is the reliable maximum; beyond that, dispersion and attenuation begin to degrade link quality. For most campus and multi-building security deployments, 10 km covers the entire site footprint without intermediate repeaters.
• Hot-Swappable Module Design: No power-down or port reconfiguration needed to insert or remove the transceiver. In production environments, this eliminates unplanned downtime and lets you swap between LR/SR/DAC (direct-attach copper) modules on the same port without a reload—operationally critical when you're troubleshooting or upgrading a live surveillance trunk.
• LC Duplex Connector: Most fiber installations in security networks already use LC duplex patch cables and bulk fiber terminations. The SM5110-LR avoids proprietary connectors and keeps spares inventory lean—a standard off-the-shelf LC single-mode patch cable works immediately without special ordering.
• 9/125 µm Single-Mode Fiber Compatibility: Matches the global ITU G.652 fiber standard. If your site already has single-mode backbone fiber, this transceiver works without any fiber plant changes or re-termination.
• 3.3V Low-Power Supply: Minimal current draw keeps total power consumption low on switches with many populated SFP+ slots. In 24/7 recording environments, every watt counts—the LR transceiver adds negligible thermal load compared to copper PoE injectors or active repeaters.

Deployment Considerations:

• Fiber Type Mismatch: This is the most common deployment error we see. Multi-mode fiber (50/125 or 62.5/125) won't work with the SM5110-LR—signal loss will be immediate and catastrophic. Before installing, visually verify or test the existing fiber run with a light source. Most installed fiber in security environments is single-mode (for longer distances), but some older buildings have multi-mode. Check the fiber jacket marking or ask your IT team.
• Patch Cable Cleanliness: Single-mode fiber is more sensitive to dust and scratches than multi-mode. Always use lint-free wipes and IPA when cleaning LC connectors; a single grain of dust in the ferrule gap causes 3+ dB of link loss. Budget 10 minutes per connection for inspection and cleaning before mating.
• Module Recognition & Firmware: Not all TP-Link switches with SFP+ slots explicitly advertise 10GBase-LR support in the datasheet. Some older Omada models may recognize the module but report it as unsupported wavelength or show link flapping. Verify your specific switch model and firmware revision against the TP-Link compatibility matrix before deployment.
• No Inline Optics Management: Unlike some higher-end platforms, the SM5110-LR offers limited optical power monitoring or diagnostics through the switch UI. You cannot read transmit/receive signal strength in real time—it's a passive module. If a link fails, you rely on layer-1 link-state to detect the fault. For mission-critical surveillance trunks, test the link thoroughly in a staging environment first.
• Distance Verification on Deployed Fiber: 10 km is the nominal maximum on clean, low-loss fiber. Actual link distance depends on fiber age, splice count, and bend loss. Test a new fiber run with the transceiver before committing the camera deployment—a marginal link (8–9 km on degraded fiber) may work but be fragile and prone to dropout under thermal stress.

The SM5110-LR is the right choice for security integrators and system architects building multi-site surveillance networks with existing or planned fiber backbones. It's a commodity 10GBase-LR transceiver that integrates into TP-Link Omada infrastructure without special licensing or vendor lock-in—spares are cheap and widely available. If your deployment is single-site, short-distance (under 50 m), or budget-constrained, a 10GBase-SR transceiver may be more economical. For deeper technical integration guidance and Omada switch pairing recommendations, consult the TP-Link catalog.
