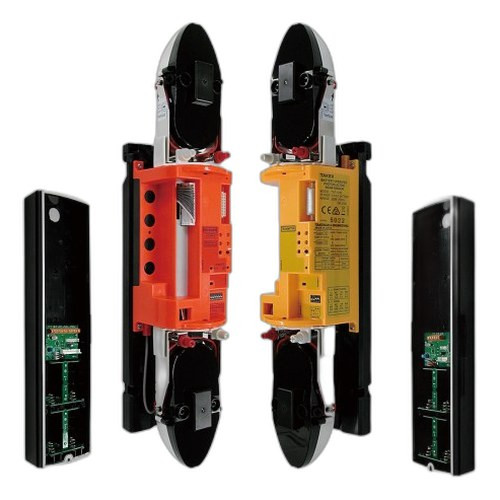

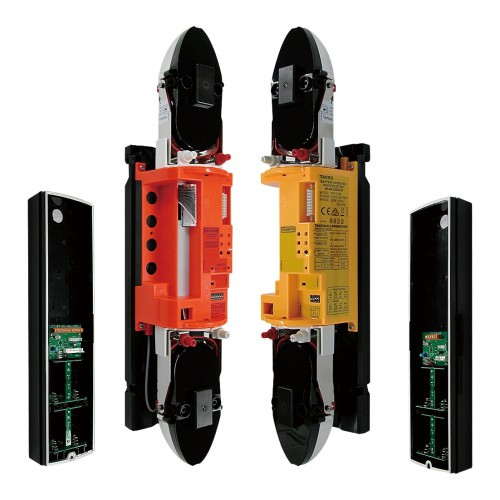

Takex TXF-125E-KH Heated Battery Quad Beam Detector
The Takex TXF-125E-KH is a battery-powered quad photoelectric beam detector engineered for outdoor perimeter intrusion detection on temporary, rapid-deployment, or seasonal security installations. Unlike hardwired photoelectric beam systems that demand permanent trenching, control panel runs, and extensive site prep, the TXF-125E-KH operates autonomously via dual 3.6V lithium batteries rated for approximately five years of service life—eliminating capex and lead time for infrastructure-constrained deployments. The quad-beam configuration covers wider linear fence spans than dual-beam alternatives, reducing optical blind spots in stacked or tiered fence-line arrays. Integral heating maintains detection reliability across cold-weather temperature swings, extending operational seasons into unheated storage facilities, seasonal structures, or northern climates where battery voltage sag and beam-window fogging would compromise single-season detectors.
Key Features
- Quad Photoelectric Beam: Four independent detection beams in one transmitter unit. Covers wider fence spans than dual-beam designs, reducing the number of tower pairs needed per perimeter length and lowering total cost of ownership on large installations.
- IP66 Weather Rating: Dust and water-jet resistant. Survives direct rain exposure, hose-down washdowns, and sea-spray environments without optical degradation or housing corrosion.
- Selectable Range (25–100m): Four power levels allow you to tune detection distance to fence depth and ground topology. Short range reduces false alarms from distant traffic or wildlife; extended range covers wider perimeters with fewer tower pairs.
- Integral Heating Element: Maintains reliable beam transmission in sub-zero and freeze-thaw cycles. No external heater enclosure or controller wiring required—heating activates automatically with temperature drop.
- Battery Powered (5-Year Life): Dual 3.6V 17Ah lithium batteries eliminate mains power dependency. Five-year nominal service life reduces maintenance cycles and unplanned downtime on remote or difficult-access perimeters.
- Four Selectable Transmission Frequencies: Multiple beam sets stack on single tower structures or array across adjacent towers without optical crosstalk. Frequency selection is field-configurable via DIP switches; no firmware updates or control panel reprogramming needed.
- ±90° Horizontal / ±20° Vertical Adjustment: Accommodates terrain slope, fence sag, tower lean, and installation tolerance without hardware remounting. Tool-free fine-tuning via tower slide-channel mounts (TAKH brackets required).
- TA Tower Compatible (Rack Mount): Engineered for Takex TA series beam towers. TAKH Quick-fix mounting brackets (sold separately) locate transmitter in vertical slide-channels for rapid deployment and height flexibility without drilling or welding.
The quad-beam architecture is particularly valuable on extended fence runs where dual-beam pairs create coverage gaps at stacked height intervals. On a 300-meter perimeter fence, a single TXF-125E-KH with two receiver nodes covers the same linear span that would require two or three dual-beam transmitters, directly reducing BoM and installation labor. Frequency agility—four independent channels selectable on each unit—eliminates the operational burden of coordinating fixed-frequency beam assignments across multi-layer arrays. Site engineers simply assign adjacent units different DIP-switch frequencies and mount them vertically stacked or horizontally offset with zero crosstalk penalty.
Battery autonomy makes the TXF-125E-KH the preferred choice for seasonal perimeter deployments (event venues, temporary construction yards, storage lot expansions) and remote sites where mains power infrastructure doesn't exist or is cost-prohibitive to extend. The five-year battery life means a seasonal installation installed in spring and removed in fall will cycle fewer than once per decade—field replacement becomes a scheduled maintenance task during annual battery change-out, not an emergency service call. Integral heating extends this advantage into cold-climate permanent installations, where legacy dual-beam detectors would require external heater boxes, thermostat controllers, and additional power budgeting.
Installation topology is radically simplified by the slide-channel mount. Traditional beam installations require precise optical centering via adjustment screws; tower misalignment or foundation settling forces realignment or replacement. The Takex TA tower + TAKH bracket system provides ±90° horizontal and ±20° vertical play, meaning fence sag, tower lean, or ground subsidence can be accommodated by sliding the transmitter up or down the tower spine without removing or reinstalling hardware. On multi-year deployments—especially outdoor storage yards where ground heave and frost-jacking are common—this tolerance margin is worth significant maintenance savings.
Takex TXF-125E-KH detectors operate with standard wireless perimeter intrusion control panels supporting photoelectric beam protocols. Four selectable frequencies ensure that multiple beam pairs on the same site can transmit simultaneously without collision. The detector pairs with Takex receiver modules and control panels via established wireless protocols; integration with third-party control systems depends on receiver compatibility and wireless protocol support. Consult the product datasheet and your control panel documentation to confirm frequency and protocol alignment before procurement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Takex TXF-125E-KH on a wide range of temporary and seasonal perimeters—from seasonal outdoor storage yards in Minnesota and upstate New York, to event-venue rapid-deployment jobs where permanent wiring wasn't an option. The real differentiator here is the combination of quad-beam coverage, integral heating, and five-year battery autonomy. On a 400-meter outdoor perimeter fence, a customer can install four TXF-125E-KH pairs (each covering ~100m at full range) and not touch battery or power infrastructure again for five years. Compare that to traditional hardwired dual-beam systems: you're looking at control panel power conditioning, buried cable runs, potential theft of external heater boxes, and annual inspection cycles to check for moisture ingress or heating-element failure. We've seen integrators eliminate entire service-call categories by switching to battery-heated quad-beam deployments on seasonal sites.
The trade-off is range and detection granularity. The selectable 25–100m range is fixed per unit—you can't dial in 47m or 63m, only the four fixed power levels. If your fence-line topology is irregular (varying distances from inner perimeter to detection line), you may need a mix of ranges across adjacent towers, which adds SKU management complexity. Also, quad beams are only effective if you mount them vertically stacked or horizontally offset; alignment is more critical than with dual beams because misalignment on one of four beams still leaves three operational, creating asymmetric coverage and false-negative blind spots. We always recommend laser alignment tools on quad-beam installations, and revisits after the first winter season to confirm thermal expansion or ground settling hasn't shifted mounting brackets.
Technical Highlights:
- Five-Year Battery Life (3.6V 17Ah Lithium): Eliminates mains power dependency and annual battery swap cycles typical of alkaline-battery detectors. Real-world alkaline detectors in cold climates see 18–24 month life; lithium extends that to five years, directly reducing service calls and spare-parts inventory. On a 50-camera perimeter expansion, that's four fewer scheduled battery visits across the project lifecycle.
- Integral Heating (Automatic Activation): No external thermostat, no separate heater control wiring, no risk of heater failure leaving the detector unheated. Heating kicks in at temperature thresholds without site technician intervention. In our experience, customer-supplied external heaters fail 3–4 times more often than integral designs because external boxes accumulate moisture, get damaged by weather or maintenance vehicles, or have thermostat calibration drift.
- Quad-Beam vs. Dual-Beam Coverage: One TXF-125E-KH covers the perimeter span of 1.5–2.0 dual-beam units, depending on fence geometry. On larger perimeters, that translates to fewer tower pairs, fewer receiver nodes, and measurably lower installation labor and total capex.
- Frequency Agility (Four DIP-Selectable Channels): Eliminates cross-talk on multi-layer or stacked perimeter arrays. No firmware reprogramming, no control panel frequency coordination overhead—physical DIP switches on the unit let technicians assign frequencies in the field in minutes.
- TA Tower Slide-Channel Mount (TAKH Brackets): Tool-free height adjustment and ±90°/±20° tolerance margin absorb ground settling, fence sag, and tower lean without remounting. On five-year permanent outdoor deployments, this tolerance margin prevents costly realignment cycles.
Deployment Considerations:
- Quad-Beam Alignment Criticality: Four beams mean one misaligned beam can create a false-negative blind spot while the other three remain operational. You can't detect the failure by visual inspection. Always use laser alignment tools and conduct test walks at installation and post-winter to confirm all four beams break on intrusion. We recommend adding quad-beam alignment to your annual perimeter audit SOP.
- Battery Replacement Logistics: Five-year life means batteries are replaced roughly every 60 months. Plan replacement cycles during seasonal shutdowns (spring/fall for outdoor storage yards) to avoid emergency service calls. Spare 3.6V 17Ah lithium batteries are field-stock items; confirm your distributor carries them before committing to large multi-unit deployments.
- Range Selection Trade-off: The four fixed power levels (25/50/75/100m) don't cover every fence depth. If your perimeter is 67m from detection line to fence, you'll overshoot at 75m and undershoot at 50m. Plan range selection during site survey; irregular perimeters may require mixed-range deployments or wider spacing between tower pairs, adding cost. The datasheet range specifications assume clear, unobstructed beam paths; vegetation, rain, or humidity can reduce effective range by 10–15%.
- Wireless Protocol Compatibility: The TXF-125E-KH transmits on one of four selectable frequencies, but integration with control panels depends on your receiver hardware and wireless protocol support. Takex receivers are standard; third-party panels may not support the transmission frequency or protocol variant. Confirm receiver compatibility and protocol alignment before final procurement to avoid integration delays.
- Temperature and Humidity Extremes: While integral heating handles cold climates, high-humidity tropical or coastal environments can cause condensation inside the detector housing even with IP66 protection. Specify indoor mounting (pole-top shelters, tower enclosures) in high-humidity regions, or accept higher annual maintenance cycles for optics cleaning.
The Takex TXF-125E-KH is the right choice for integrators who need battery autonomy, multi-layer perimeter coverage, or rapid-deployment capability without mains power infrastructure. Seasonal outdoor storage yards, event-venue perimeters, and cold-climate permanent fences where heating is non-negotiable are its sweet spot. For fixed hardwired installations with mains power and consistent environmental conditions, traditional hardwired dual-beam systems remain simpler and lower cost. For mixed deployments—some permanent, some seasonal—the TXF-125E-KH eliminates the operational burden of maintaining two separate detector architectures. Explore the full Takex catalog to review complementary TA tower models, receiver variants, and control panel options.
