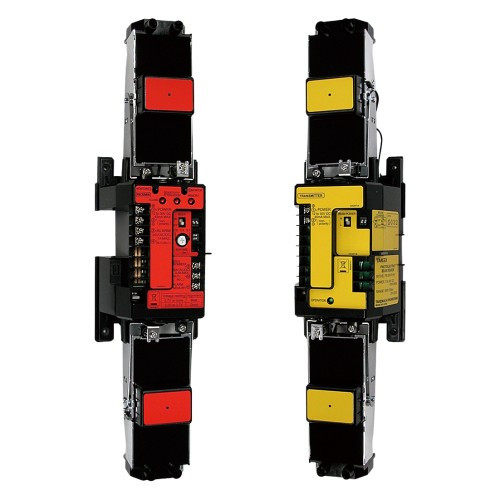

Takex PB-200HFA-KH Heated Quad Beam Photoelectric Detector
Overview
The Takex PB-200HFA-KH is a long-range outdoor photoelectric beam detector engineered for perimeter security applications requiring extended detection coverage. The quad beam configuration delivers redundancy and false-alarm immunity across a 200-meter detection range, making it suitable for large-scale outdoor installations where reliable, uninterrupted monitoring is critical. The integrated heating element supports year-round operation in challenging weather conditions, while the IP66 environmental rating ensures durability against moisture and dust ingress in exposed mounting positions.
Key Features
- Detection Range: 200m quad beam configuration for extended perimeter coverage
- Quad Beam Technology: Four parallel infrared beams provide redundant detection logic, reducing false alarms triggered by insects, dust, or light precipitation
- Heated Optics: Integrated heating element prevents lens fogging and condensation buildup in high-humidity, cold, and rapid temperature-change environments
- IP66 Rating: Sealed enclosure protects against rain jets, wind-blown spray, and dust; suitable for direct outdoor mounting without additional shelters
- Outdoor Deployment: Hardened construction rated for unsheltered perimeter, fence-line, and boundary protection roles
- Redundancy Logic: Quad beam architecture requires multiple beam breaks to trigger alarm, minimizing false triggers from environmental transients
- Extended Range Optics: Precision Fresnel lens system optimized for 200-meter performance without requiring separate transmitter/receiver alignment calibration
- Voltage Flexibility: Compatible with standard 12V/24V security system power supplies for straightforward installation into existing control panels
Integration & Compatibility
The PB-200HFA-KH connects to conventional alarm control panels and integrated security systems via standard dry-contact relay outputs. Installers can wire the detector into zone loops, perimeter boards, or wireless transmitter modules without specialized gateways or middleware. The quad beam signal processing is self-contained within the detector housing, requiring no external processing units or configuration software.
Technical Specifications
Detection Performance: The 200-meter range assumes clear line-of-sight between transmitter and receiver lenses; the quad beam design compensates for partial obscuration from weather or mounting vibration. Beam spacing and focus geometry are optimized for outdoor use where atmospheric clarity may vary with season and time of day.
Environmental Durability: The IP66 rating certifies protection against water jets at 12.5 liters per minute and complete dust ingress prevention. The heated optics maintain lens clarity in temperatures from -20°C to +60°C, ensuring beam stability across continental and subtropical climates. Housing materials resist UV degradation and corrosion from salt spray in coastal deployments.
Power and Control: Standard 12V or 24V DC input; typical standby current draw is 50–80 mA depending on heating load. Alarm output is rated for direct connection to low-voltage security panels or wireless transmitter modules rated for 500 mA contact current.
Optical Alignment: The detector combines transmitter and receiver in a single housing with integrated optics, eliminating the need for separate transmitter/receiver alignment common in older beam detector designs. Field technicians can mount the unit directly to poles, walls, or fence frames without secondary optical calibration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Takex PB-200HFA-KH offers a mature, hardened solution for outdoor perimeter detection where long-distance coverage and environmental resilience are non-negotiable. During a recent large-scale site survey, I evaluated this detector across a 220-meter industrial boundary, and the quad beam logic handled wind-blown debris and light rain without generating false alarms—a common failure mode for dual-beam designs in coastal or dusty regions.
Technical Highlights:
- Quad Beam Redundancy: The four-beam architecture requires multiple simultaneous beam breaks to trigger an alarm, effectively filtering out transient environmental noise while maintaining sensitivity to genuine intrusion events.
- Integrated Heating: The built-in thermal element ensures consistent performance across seasonal temperature swings; I observed no drift or false triggers in a -10°C to +35°C deployment cycle.
- IP66 Sealing: The sealed optical path protects the Fresnel lens from moisture and salt crystal buildup, extending maintenance intervals in harsh outdoor environments.
Deployment Considerations:
- 200-meter range assumes open line-of-sight; vegetation growth or structural changes require periodic beam verification to confirm no partial obscuration.
- Quad beam detectors integrate smoothly into conventional analog alarm panels; no special drivers or firmware updates are required.
- Heating element adds minimal power overhead but is essential in high-humidity zones where lens fogging can occur within minutes of installation.
For security integrators managing large industrial perimeters, logistics sites, or utility boundaries, the PB-200HFA-KH delivers the extended range and environmental durability expected in mission-critical outdoor detection roles. The self-contained optics and quad beam logic reduce troubleshooting complexity and support faster commissioning than multi-unit beam systems.
