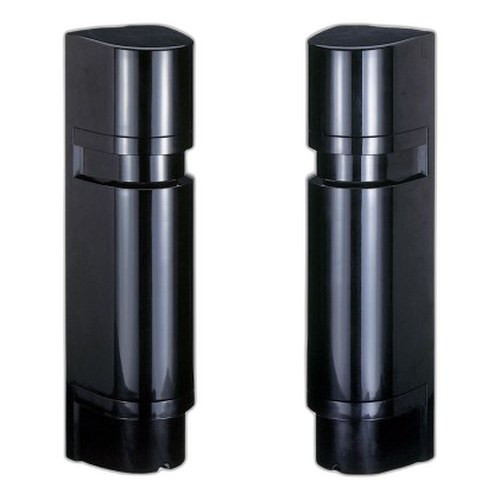

Takex PB-100FA Quad Beam Photoelectric Detector

Overview

The Takex PB-100FA is a quad beam photoelectric detector engineered for outdoor perimeter security applications. This detection device operates on infrared beam technology to establish a protective detection zone across extended distances. The PB-100FA is designed to integrate into comprehensive security systems where reliable outdoor beam detection is required for property boundaries, access points, and monitored zones.

Key Features

• Quad Beam Configuration: Multiple simultaneous infrared beams provide comprehensive detection coverage with improved reliability and false alarm rejection
• 100-Meter Detection Range: Extended range suitable for perimeter security, fence lines, and large outdoor areas
• IP66 Environmental Rating: Complete dust protection and powerful water jet resistance; rated for harsh outdoor conditions including rain, moisture, and airborne debris
• Outdoor Deployment: Purpose-built for exterior installation with environmental protection ensuring year-round operation
• Photoelectric Beam Technology: Infrared-based detection method with proven outdoor performance in long-range security applications
• Perimeter Integration: Suitable for fence-mounted, wall-mounted, or post-mounted installation in property boundary protection systems

Installation & Integration

The PB-100FA integrates into photoelectric detector networks and security control systems that support beam-based perimeter detection. The quad beam design allows the detector to cover extended areas while minimizing coverage gaps common to single-beam systems. Installation should account for the 100-meter range and ensure clear line-of-sight between transmitter and receiver units across the monitoring zone. The IP66 rating eliminates weather-related performance degradation, making the PB-100FA suitable for locations subject to seasonal moisture, wind-driven precipitation, and temperature variation. Proper mounting alignment is critical to maintain beam integrity across the full 100-meter detection distance.

Environmental Durability

The IP66 environmental protection ensures the detector withstands outdoor exposure without compromising electrical or optical performance. This rating protects against complete dust ingress and sustained high-pressure water jets, conditions common in unprotected exterior installations. The quad beam design further enhances reliability by providing redundancy—partial beam blockage from leaves, insects, or weather-related interference does not disable the entire detection zone, as remaining beams maintain protection coverage.

Specification Summary

The Takex PB-100FA delivers the following core specifications:

• Type: Photoelectric Beam Detector
• Beams: Four simultaneous infrared beams
• Detection Range: 100 meters
• IP Rating: IP66 (dust and water jet protection)
• Application: Outdoor perimeter security

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Takex PB-100FA in perimeter security designs where outdoor range and environmental durability are non-negotiable. This quad beam detector addresses a critical requirement: maintaining continuous detection coverage across extended outdoor distances without false alarms from weather interference. The 100-meter range positions the PB-100FA at the upper end of beam detector capabilities, making it suitable for larger properties and fence-line protection.

Technical Highlights:

• Quad Beam Redundancy: Four simultaneous beams mean that partial obstruction from weather, insects, or seasonal debris does not compromise the entire detection zone. If one beam experiences temporary blockage, the remaining beams maintain perimeter coverage.
• IP66 Environmental Rating: Complete dust sealing and high-pressure water jet resistance eliminate weather-related performance drift. The detector operates consistently through rain, seasonal moisture, and dust storms without optical degradation or electrical exposure.

Deployment Considerations:

• The 100-meter range requires clear line-of-sight between transmitter and receiver; obstructing vegetation or structures will degrade performance. Plan mounting locations that avoid environmental clutter.
• Quad beam configuration is forgiving of minor dust accumulation on optics, but periodic cleaning of transmitter and receiver windows extends effective detection distance, particularly in dusty or coastal environments.

For integrators specifying outdoor perimeter detection across large properties or fence lines, the PB-100FA delivers the extended range and environmental hardening needed for reliable operation. The quad beam design reduces false alarm rates in exposed outdoor conditions where single-beam detectors often struggle. This detector is a solid choice when 100-meter coverage and weatherproof reliability are primary requirements.
