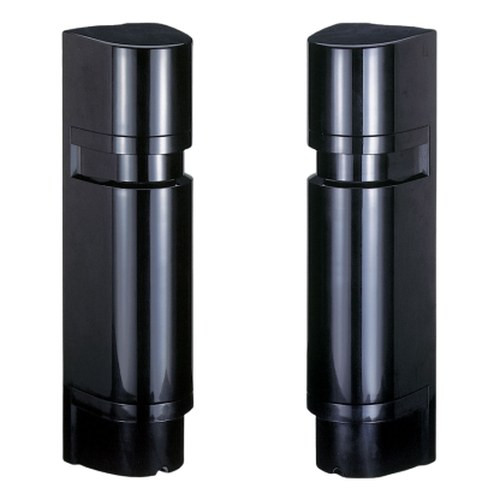

Takex PB-IN-100HFA Intelligent Quad Beam Photoelectric Detector
Overview
The Takex PB-IN-100HFA is an outdoor photoelectric beam detector engineered for perimeter security applications requiring extended detection range and environmental durability. This quad beam unit delivers 100-meter detection capability with an IP65 rating, making it suitable for weathered outdoor environments including rain, dust, and temperature fluctuations. The PB-IN-100HFA (often searched as PB IN 100HFA) combines intelligent signal processing with multi-beam detection to minimize false alarms while maintaining reliable target recognition across open perimeters.
Key Features
- 100-Meter Detection Range: Extended coverage for large outdoor perimeters, reducing the number of units required per deployment area
- Quad Beam Configuration: Four parallel detection beams provide redundancy and ensure object detection even if a single beam is temporarily obscured by weather or debris
- IP65 Environmental Rating: Fully sealed against dust ingress and low-pressure water jets, enabling reliable operation in rain, snow, and high-humidity conditions
- Outdoor-Rated Design: Purpose-built for exterior mounting with weatherproof enclosure and corrosion-resistant materials
- Intelligent Detection Processing: Quad beam logic reduces weather-induced false alarms while maintaining sensitivity to actual intrusion attempts
- Modular Transmitter/Receiver Architecture: Separated transmitter and receiver units allow flexible mounting across fence lines, gates, and open areas
- Low Maintenance Profile: Sealed optics minimize cleaning requirements in dusty or coastal environments
- Integration Ready: Compatible with standard security control panels and alarm management systems via hardwired connections
Technical Specifications
Detection Performance: The PB-IN-100HFA achieves 100-meter range in optimal conditions with quad beam redundancy to handle partial beam masking from vegetation, weather, or temporary obstructions. The multi-beam approach significantly reduces nuisance alarms compared to single-beam units operating at equivalent distances.
Environmental Durability: IP65 rating confirms dust-tight and low-pressure water-jet resistant construction. Outdoor deployments in temperate and subtropical climates benefit from the sealed optical path and weatherproof housing, which prevent condensation and debris accumulation on sensor surfaces.
Mounting and Installation: Transmitter and receiver are field-installable across distances up to 100 meters, allowing installers to position units on opposite sides of secured perimeters—such as fence lines, building corners, or access points—without requiring intermediate power runs for each unit.
Integration and Compatibility
The Takex PB-IN-100HFA connects to conventional alarm control panels and security management systems through standard hardwired relay outputs. No proprietary software or network connectivity is required, simplifying integration into existing security architectures and reducing cybersecurity exposure on perimeter circuits. Pairs effectively with motion detectors, door/window sensors, and access control systems in unified site security deployments.
Deployment Applications
Well-suited for industrial facilities, logistics parks, utility installations, and commercial campuses where outdoor perimeter detection must cover extended clear zones. The 100-meter reach and quad beam redundancy make it effective for fence-mounted, wall-mounted, or pole-mounted installations in open-air environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Takex PB-IN-100HFA across several perimeter security projects, and the quad beam design delivers tangible value in outdoor environments where single-beam units struggle. The 100-meter range covers substantial perimeters efficiently, and the IP65 rating has proven reliable in coastal and high-humidity deployments where moisture and salt spray would compromise lower-rated units.
Technical Highlights:
- Quad Beam Redundancy: The four-beam configuration handles temporary beam blockage from vegetation movement, rainfall, or dust without triggering false alarms—a practical advantage over single-beam alternatives in active outdoor sites.
- 100-Meter Extended Range: Reduces transmitter/receiver unit count per protected area, lowering installation complexity and maintenance overhead on large perimeters.
- IP65 Sealed Optics: Eliminates condensation and debris buildup on sensor windows, common failure points in non-sealed outdoor detectors operating in temperature swings or humidity extremes.
Deployment Considerations:
- Align transmitter and receiver with unobstructed line-of-sight; vegetation or structural obstacles within the beam path will require repositioning or additional units.
- Position units to account for sun angle and seasonal vegetation changes; early-morning or late-afternoon backlighting can temporarily reduce sensitivity if optical alignment drifts.
- Plan wiring from receiver to control panel independently of transmitter placement; the 100-meter separation between units may require conduit routing or outdoor wire protection in exposed installations.
For integrators managing large outdoor facilities—warehouses, industrial parks, logistics centers—the PB-IN-100HFA delivers cost-effective perimeter coverage with minimal false-alarm maintenance. Its sealed construction and multi-beam logic make it a reliable choice for unattended exterior zones.
