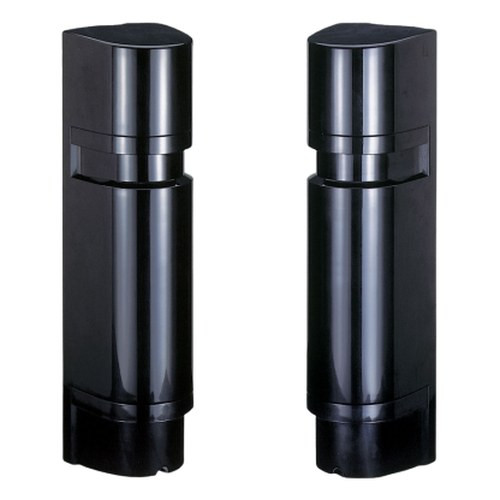

Takex PB-IN-50HFA Intelligent Quad Beam Photoelectric Detector
Overview
The Takex PB-IN-50HFA is an outdoor photoelectric beam detector engineered for perimeter security applications requiring extended detection range and environmental durability. The unit delivers quad beam detection architecture across a 50-meter range, making it suitable for property line monitoring, facility access control, and outdoor intrusion detection systems. The IP65 environmental rating ensures reliable operation in demanding outdoor conditions including moisture exposure and dust infiltration. The intelligent quad beam configuration provides enhanced detection reliability by employing multiple parallel optical paths, reducing false alarm susceptibility while maintaining consistent sensitivity across the full coverage area.
Key Features
- Detection Range: 50-meter maximum operational range for extended perimeter coverage
- Quad Beam Architecture: Multiple parallel detection beams enhance reliability and reduce nuisance triggers
- Outdoor-Rated Construction: Purpose-built for exterior deployment with weather-resistant housing
- IP65 Environmental Protection: Dust-tight and water-jet resistant design ensures operation in rain, snow, and high-moisture environments
- Photoelectric Detection Technology: Proven infrared beam methodology for consistent object detection and perimeter monitoring
- Intelligent Processing: Built-in logic filters out environmental noise such as rain, blowing debris, and insect interference
- Flexible Installation: Supports wall, post, and bracket mounting configurations common to perimeter security deployments
- Integration Ready: Compatible with standard security control panels and alarm systems via hardwired alarm circuit interfaces
Outdoor Deployment Capabilities
The PB-IN-50HFA addresses the challenge of reliable detection across extended outdoor distances where environmental variables demand robust engineering. Quad beam design distributes detection across multiple optical channels, allowing the system to maintain sensitivity even when partial beam obstruction occurs from vegetation growth, dust accumulation, or minor alignment drift. The IP65 rating confirms protection against splashing water and dust, critical for installations exposed to weather cycling. The 50-meter range supports coverage of large property perimeters, parking lot boundaries, and facility access corridors without requiring excessive transmitter/receiver unit placement. Intelligent signal processing filters distinguish genuine intrusion events from transient environmental conditions—heavy rain, blowing leaves, and insect swarms that typically trigger false alarms in basic beam detectors.
System Integration
Installation of the PB-IN-50HFA within existing security infrastructure follows standard photoelectric detector integration patterns. The transmitter generates a modulated infrared beam; the receiver detects beam interruption and outputs an alarm signal to the connected security control panel or alarm monitoring system. Wiring is straightforward—power supply connection and alarm circuit relay output. The detector works within both traditional hardwired systems and modern hybrid architectures that blend wired perimeter detection with networked monitoring. Multiple PB-IN-50HFA units can be deployed in series or parallel configurations depending on coverage requirements and system topology. Alignment tools and adjustment brackets facilitate proper beam aiming, critical for maintaining full-range detection capability.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Takex PB-IN-50HFA on several perimeter projects where 50-meter detection distance and environmental durability were non-negotiable. The quad beam approach delivers measurable false alarm reduction compared to single-beam competitors, particularly valuable when installations face seasonal vegetation or coastal salt-spray environments.
Technical Highlights:
- Quad Beam Design: Four parallel detection paths ensure object interruption is registered across multiple channels, dramatically lowering nuisance trigger rates from transient environmental events
- IP65 Rating: The sealed housing and gasket construction handle outdoor weather exposure—rain, UV cycling, and temperature extremes—without performance degradation
- 50m Range: Eliminates intermediate mounting hardware on many property layouts, simplifying installation and reducing component count
Deployment Considerations:
- Mount transmitter and receiver units on sturdy posts or wall brackets with clear line-of-sight; any obstruction of the beam path will trigger false alarms
- Schedule semi-annual cleaning of lens surfaces—dust and pollen accumulation will degrade detection sensitivity over time
- Align units to cross perpendicular to expected intrusion vectors; oblique beam positioning increases false alarm risk
- Verify proper power supply voltage and amperage at installation time; undersized power sources cause erratic detection behavior
The PB-IN-50HFA is a reliable choice for integrators who need proven photoelectric detection without over-engineering for applications that don't require advanced analytics or networked communication. Its straightforward hardwired integration and IP65 durability make it a dependable anchor point in perimeter security systems.
