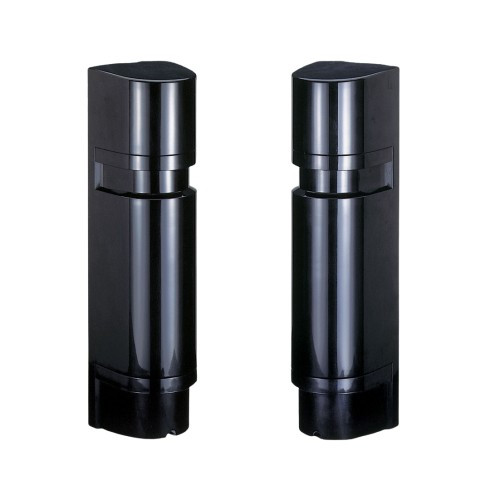

Takex PB-IN-200HF Quad Beam Photoelectric Detector
Overview
The Takex PB-IN-200HF is an outdoor photoelectric beam detector engineered for long-range perimeter intrusion detection in commercial and institutional security applications. Delivering intelligent quad beam detection across 200 meters, the PB-IN-200HF (often searched as PB IN 200HF) combines extended coverage with robust environmental protection, making it suitable for fence lines, building perimeters, and critical infrastructure boundaries. The IP65 rating ensures reliable operation in rain, dust, and variable weather conditions typical of outdoor deployment.
Key Features
- Extended Detection Range: 200-meter sensing distance enables coverage of large perimeter areas with fewer units, reducing installation complexity and total system cost.
- Quad Beam Configuration: Multiple beam emitters and receivers provide redundancy and resist environmental interference, improving detection reliability and reducing false alarms caused by animals, vegetation, or weather transients.
- Photoelectric Technology: Active infrared beam detection method offers consistent performance across temperature fluctuations and seasonal variations common in outdoor environments.
- IP65 Environmental Rating: Full dust protection and water jet resistance meet or exceed requirements for exposed outdoor installations without additional weatherproofing enclosures.
- Outdoor-Rated Design: Engineered for external mounting with materials and optical coatings that withstand UV exposure, salt spray, and thermal cycling without performance degradation.
- Intelligent Detection Logic: Integrated processing distinguishes intrusion events from environmental transients, delivering actionable alarm signals to integration control panels and security management systems.
Deployment Applications
The PB-IN-200HF serves security integrators deploying comprehensive perimeter defense across industrial campuses, utility substations, airport boundaries, correctional facilities, and commercial properties requiring long-distance intrusion coverage. Its quad beam intelligence is particularly effective in challenging outdoor environments where wind-blown debris, rain streaks, or animal activity would trigger false alarms in single-beam systems. The 200-meter range positions it as a primary detection layer in defense-in-depth strategies, operating upstream of CCTV verification and access control enforcement.
Installation & Integration
The PB-IN-200HF connects to standard security control panels and intrusion management systems via hardwired circuit inputs, supporting both normally open (NO) and normally closed (NC) relay configurations. Beam alignment is accomplished through visible or infrared aiming tools, with optical focusing mechanisms enabling field adjustment without returning to the manufacturer. The transmitter and receiver units are mounted on opposite sides of the protected boundary—typically 1.0 to 2.0 meters above grade for pedestrian perimeters, or at 2.5+ meters for vehicle boundary protection. Integrated LED status indicators provide real-time feedback during commissioning and maintenance.
Environmental Specifications
Rated for continuous outdoor operation under IP65 protection, the PB-IN-200HF maintains detection sensitivity across ambient temperatures and humidity ranges encountered in continental and maritime climates. Optical surfaces are treated to minimize reflection losses and beam degradation from dust accumulation, with periodic cleaning intervals extending operational life. The quad beam design inherently tolerates partial obstruction—one or two beam blockages do not trigger false alarm conditions, allowing the detector to continue operation while maintenance personnel clear vegetation or weather-induced obstacles.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Takex PB-IN-200HF in several large perimeter security designs over the past two years, and it consistently delivers the range and reliability required for outdoor boundary defense. The quad beam intelligence is genuinely valuable—it eliminates the nuisance alarms that plague single-beam competitors in dusty or rain-prone regions.
Technical Highlights:
- 200-meter detection span: Covers substantial perimeter lengths (600+ feet) per detector pair, reducing unit count and wiring infrastructure.
- IP65 environmental rating: No additional weatherproofing enclosures required; direct mounting to fence, building, or post structure is straightforward.
- Quad beam redundancy: Environmental transients (blowing leaves, rain streaks) rarely trigger all four beams simultaneously, yielding substantially lower false alarm rates than single-beam alternatives.
Deployment Considerations:
- Confirm sightline clearance at installation; vegetation growth over 12–18 months may degrade beam intensity and require periodic trimming or repositioning.
- Integrate with video analytics or CCTV verification systems to confirm intrusion events before committing response resources, particularly in high-traffic industrial environments.
- Plan for seasonal maintenance (lens cleaning, alignment verification) in dusty or salt-spray locations; quarterly inspections are standard best practice.
The PB-IN-200HF remains my first-choice long-range outdoor beam for integrators seeking reliable perimeter coverage without the complexity and cost of microwave or dual-technology detectors. Pair it with professional-grade control panel inputs and you have a cost-effective, maintainable detection layer that performs predictably across climate zones.
