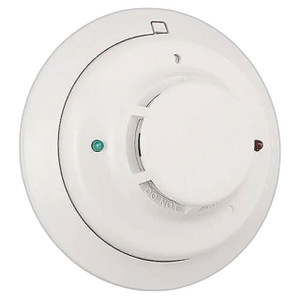

System Sensor 4WTAR-B i3 Series 4-Wire Photoelectric Smoke Detector

Overview

The System Sensor 4WTAR-B is a 4-wire addressable photoelectric smoke detector designed for integration into conventional and intelligent fire alarm systems. The unit uses photoelectric sensing technology to detect visible smoke particles, making it effective for a broad range of fire types, particularly smoldering fires that produce visible smoke before flame development. Built into the i3 Series platform, the 4WTAR-B delivers reliable detection with compatibility across modern fire alarm control panels and networked fire safety architectures.

Key Features

• 4-Wire Configuration: Operates on a 4-wire circuit topology, enabling addressable reporting and individual device status monitoring across the fire alarm network
• Photoelectric Sensing: Optical chamber design detects smoke particles in the 0.5 to 10 micron range, optimized for pre-flame and smoldering fire scenarios
• i3 Series Platform: Built on the System Sensor i3 intelligent detector framework, supporting advanced signal processing and reduced false alarm performance
• Addressable Capability: Each detector reports its individual address and status to the fire alarm control panel, enabling precise zone identification and faster emergency response
• Low-Profile Design: Compact form factor simplifies installation in drop ceilings, architectural soffits, and confined ceiling spaces
• Remote Testing Compatible: Supports remote smoke testing functionality through compatible control panels, reducing the need for manual ladder access during maintenance
• Interconnect Ready: Can be integrated with other System Sensor detectors and accessories for multi-zone fire detection networks

Integration & Compatibility

The 4WTAR-B integrates seamlessly with System Sensor fire alarm control panels and third-party addressable fire alarm systems that support 4-wire detector protocols. The detector requires a compatible addressable control module or panel input card that provides power supervision, address assignment, and alarm reporting. Installation requires standard Class A or Class B wiring practices appropriate to the fire alarm system design. The unit supports standard fire alarm communication protocols used in conventional and intelligent addressable systems, enabling integration with building-wide fire safety networks and emergency notification systems.

Package Contents

The System Sensor 4WTAR-B ships with the detector head unit, standard mounting hardware (base and fasteners), and installation documentation. Additional accessories such as the mounting escutcheon, conduit adapters, and wiring terminals are available separately to support various installation configurations.

Marty Allison

I have specified the System Sensor 4WTAR-B in several mid-to-large commercial fire alarm upgrades, and it consistently delivers the detection sensitivity and network integration that modern building codes expect. The photoelectric sensing is particularly effective in office environments and retail spaces where smoldering fires—furniture, insulation, electrical—pose a real risk and often develop more slowly than flaming fires. The 4WTAR-B (often searched as 4WTAR B) addresses both detection requirements and system scalability without introducing unnecessary complexity into the control panel programming.

Technical Highlights:

• Photoelectric Sensing Technology: Optical chamber detects visible smoke across a broad particle size range, making it effective for slow-developing fires that are common in commercial occupied spaces
• 4-Wire Addressable Architecture: Individual address assignment and status reporting enables precise alarm pinpointing and reduces response time when integrated with networked fire alarm panels
• i3 Series Signal Processing: Advanced algorithms and noise rejection on the i3 platform deliver improved false alarm immunity compared to older conventional detector designs

Deployment Considerations:

• Ensure your fire alarm control panel or addressable module supports 4-wire detector wiring and address assignment before purchase. Verify compatibility with your specific panel model during design review
• Photoelectric detectors respond best when mounted on ceilings or high walls where smoke naturally accumulates. Avoid placement in areas with high air velocity or near air handling returns, which can delay smoke transport to the detector
• Plan remote testing access during layout. While the 4WTAR-B supports remote testing, confirm that your control panel software enables this feature to simplify future maintenance cycles

For integrators working with addressable fire systems or upgrading conventional networks to intelligent platforms, the 4WTAR-B offers the sensing reliability and network integration needed to meet modern life-safety codes. Its low-profile design and robust detection make it a solid choice for new construction and retrofit applications.
