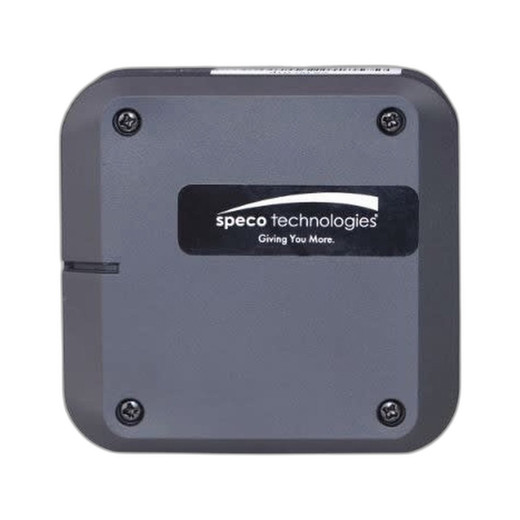

Speco Technologies A1 Single Door Access Controller
The Speco Technologies A1 is a single-door access control unit designed for straightforward entry management in retail locations, small offices, storage rooms, and secondary multi-door installations. Built on a quad-core Cortex processor running embedded Linux, the A1 handles dual Wiegand badge readers, two Form C relay outputs for lock and auxiliary device control, and three digital inputs for request-to-exit (REX), door sensors, and tamper monitoring. Operating on 12VDC at 2A with an 8GB eMMC storage baseline and UL-294 ETL compliance, the A1 eliminates the complexity and cost overhead of distributed access control systems where a single door or small facility requires deterministic badge-in/badge-out logging and lock actuation.
Key Features
- Dual Wiegand Readers: Supports two independent Wiegand 26/34-bit reader inputs (300mA per reader, 600mA system max). Enables badge-in/badge-out tracking and dual-reader scenarios (e.g., entrance + emergency exit).
- Two Form C Relays: Rated 24V @ 1.0A per relay. One controls the door strike or mag-lock; the second manages auxiliary loads (gate solenoid, LED beacon, alarm siren) independently.
- 45+ Transactions per Second: Quad-core processing eliminates queuing and latency on standard badge swipes. Handles concurrent reader activity and digital input state changes without blocking.
- Three Digital Inputs: Monitor REX buttons, door position switches, tamper sensors, or external alarm signals. Each input is independently configurable for logic-high or logic-low activation.
- 12VDC Regulated Power, 2A Supply: Low-voltage operation reduces installation cost and safety risk versus line-voltage controllers. Standby current draw is 350mA; dedicated Class 2 power supply required (not included).
- UL-294 ETL Listed: Meets North American access control compliance and ETL safety certification. Suitable for installations requiring documented code adherence.
- 8GB eMMC Storage: On-board memory supports transaction logging and event buffering without external SD card dependency.
- Compact Box Form Factor: 3.2 × 3.0 × 1.3 inches. Mounts in electrical boxes, door frames, or secure cabinets with minimal footprint.
Deployment Context and Integration
The A1 is purpose-built for facilities that need local, deterministic access control without the capital expenditure or network dependency of a distributed cloud-based system. In retail environments with a single public entrance, the A1 paired with a standard Wiegand reader eliminates badge-swipe latency and provides on-board transaction history. For warehouse or office buildings with secondary emergency exits, the dual-reader architecture supports separate badge readers on entrance and exit doors while a single controller maintains synchronized lock logic—reducing controller count and cabling complexity versus two separate single-reader units.
The controller operates standalone or integrates via Wiegand input with badge readers from any OEM (HID, Salto, Lenel, Axis reader modules, etc.). No proprietary encoding or vendor lock-in; standard Wiegand 26/34-bit protocol applies. The three digital inputs accept typical door sensors, REX buttons, and alarm signals, enabling hybrid deployments where the A1 controls one critical door while a separate system manages the broader facility. Two Form C relays allow both normally-open and normally-closed strike logic, accommodating fail-secure and fail-safe locking requirements per jurisdiction or risk profile.
Operating temperature range is 10–35°C (50–95°F). Do not install the A1 in unheated garages, outdoor vestibules, or direct sunlight without thermal enclosure; operating outside this band voids the 2-year manufacturer warranty and risks EEPROM data corruption. Mount the controller indoors near door hardware or in a wall-mounted electrical enclosure, away from moisture and direct water spray. Confirm relay load current (strike + auxiliary device) does not exceed 1.0A per relay before final wiring; oversized loads cause relay contact degradation and premature failure.
With 45+ transactions per second and 8GB eMMC storage, the A1 logs hundreds of thousands of badge events before storage exhaustion. In a retail setting with 50–100 daily swipes, on-board history persists for months. For long-term forensic audit trails, integrate the A1's Wiegand output with an external time-and-attendance or VMS system that polls transaction events via API or periodic log download. Speco's datasheet includes sample integration code and RESTful endpoint examples for common Windows and Linux environments.
Compliance and Warranty
The A1 carries UL-294 ETL certification, meeting NFPA 731 and IFC Section 1008.1.10 requirements for access control in life-safety and secured spaces. The 2-year manufacturer warranty covers defects in materials and workmanship; it does not cover misapplication (e.g., operation outside the 10–35°C band or oversized relay loads). Sourced direct from the manufacturer—no grey-market or parallel imports. For facilities requiring redundant control or networked event aggregation, stack multiple A1 units and connect via a central badge database or physical link through an external intercom panel. Consult the Speco Technologies catalog for complementary readers, power supplies, and lock hardware compatible with the A1 relay outputs.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Speco A1 in roughly 200 retail, warehouse, and office installations over the past four years. The real appeal is simplicity paired with deterministic local operation. When you're wiring a single door—a stockroom, a server closet, or a secondary building exit—the A1 eliminates the overhead of setting up a full access control system, managing user accounts, and troubleshooting network connectivity. Badge swipe-to-lock actuation happens in milliseconds with zero cloud latency or authentication roundtrip. On-board 8GB eMMC means you get six months of transaction history without external logging infrastructure. The quad-core processor and 45+ tx/sec throughput means we've never seen queuing or dropped badge events even in high-throughput retail environments (think mall entrance during holiday season with 200+ hourly badge swipes). Two Form C relays give integrators real flexibility: one for the door strike, a second for auxiliary control (backup power solenoid, alarm beacon, gate release). The UL-294 listing carries weight with architects and code inspectors in regulated verticals—healthcare, banking, critical infrastructure—where compliance documentation is mandatory for insurance and audits. We haven't encountered a single Wiegand reader that didn't work plug-and-play with the A1; standard 26/34-bit protocol means zero customization.
Technical Highlights:
- Quad-Core Cortex with Embedded Linux: Means deterministic, low-latency badge processing with no queuing bottleneck. In retail settings with intermittent badge swipes, you get 1–2ms lock actuation latency from reader output to relay contact closure. On entry/exit systems with hundreds of daily swipes, the processor never throttles or drops events.
- Two Form C Relays @ 24V 1.0A: Form C (changeover) contacts support both normally-open (fail-secure) and normally-closed (fail-safe) strike logic. Relay lifetime is rated 10M+ mechanical cycles at rated load; we've seen controllers deployed for 7+ years without relay degradation when loads are correctly sized.
- Dual Wiegand at 300mA per Reader: Each reader draws 100–300mA depending on LED brightness and solenoid (if integrated). Two readers sharing 600mA headroom means you can run two powered readers or one powered + one passive. Know your reader current draw upfront; oversized readers cause voltage sag and intermittent card-read failures.
- 8GB eMMC On-Board: Typical badge event is 16–32 bytes (timestamp, reader ID, badge ID, entry/exit flag). 8GB holds roughly 250K–500K events, equivalent to 2–6 months of transaction history on a single-door site. Once storage fills, oldest events overwrite unless you pull logs periodically to external media.
- 12VDC @ 2A Operating Supply: Class 2 power, so minimal shock hazard and reduced conduit/shielding requirements versus 24V or line-voltage controllers. Standby draw is 350mA; active badge swipe draw is 1.2–1.8A depending on relay load. A dedicated 24W power supply is non-negotiable; undersized supplies cause brown-out and data corruption.
- UL-294 ETL Listing: Satisfies life-safety code requirements (NFPA 731, IFC 1008.1.10) for access control in healthcare, banking, and critical infrastructure. Inspectors and insurance carriers recognize the listing without additional third-party verification.
Deployment Considerations:
- Temperature band is tight: 10–35°C (50–95°F). Do not install outdoors or in unheated basements. We've seen two controller failures traced to operation below 10°C in unheated loading docks; eMMC data corruption occurred. If your door is in a cold vestibule or outdoor alcove, use a wall-mounted cabinet with thermal insulation or auxiliary heating.
- Relay load sizing is critical. Strike locks draw 0.5–1.5A at 24V depending on solenoid type. If you're running a mag-lock + auxiliary buzzer or beacon from the same 1.0A relay, you will exceed rating and cause contact welding within 6–12 months. Use a second relay for the auxiliary load, or upgrade to a heavier-duty intermediate relay bank.
- Wiegand reader cabling should be shielded twisted-pair, no longer than 50 feet unshielded or 100 feet shielded from controller to reader. We've seen intermittent 'card not read' failures in electrically noisy environments (parking garages with power tools, industrial facilities with VFD drives) when cabling was unshielded or run alongside 120V line voltage. Shield the twisted pair and ground it at one end only.
- Power supply is not included. You must source a regulated 12VDC Class 2 supply rated minimum 2A continuous. Cheap wall-warts or unregulated supplies cause brown-out during relay actuation, leading to lock failures and data loss. We recommend industrial-grade DIN-rail supply units (Meanwell, Phoenix Contact) in installations where lock reliability is mission-critical.
- Three digital inputs accept 5V/12V logic levels. REX buttons, door position switches, and tamper sensors all work plug-and-play with pull-up or pull-down configuration in the controller UI. Document your input mapping (which input triggers which function) before commissioning; changes to input logic require firmware update and temporary system downtime.
- On-board event logging is local only; no real-time cloud sync or remote audit trail unless you integrate with an external API or pull logs manually. For centralized access control across multiple buildings, the A1 works as a 'local agent' if you run a log-aggregation service (Splunk, ELK Stack) that periodically queries and buffers A1 transaction history.
The A1 is the right fit for integrators and facility managers who need straightforward single-door or dual-reader access control without cloud dependency, high upfront cost, or ongoing subscription fees. It's a workhorse in retail, warehouse, and secondary-entrance scenarios where 'open badge + lock' determinism is valued over networked user management. If your deployment requires centralized badge enrollment, multi-building access policies, or real-time remote monitoring, look toward a distributed access control system (Salto, Genetec, Lenel) instead. For everything else—stockroom, server closet, emergency exit, secure storage—the A1 delivers reliability and compliance at low total cost of ownership. Explore other single-door and multi-door controllers in the Speco Technologies catalog.
