Speco Technologies ACKITM1 4-Door Access Control Kit with Bluetooth Mobile Reader & Credentials

Overview

The Speco Technologies ACKITM1 is a complete 4-door access control solution designed for mid-sized deployments requiring flexible credential management and mobile reader capability. This kit combines a 2-door controller with expansion capability, Bluetooth mobile reader technology, and comprehensive credential provisioning in a single integrated package. The system is built on embedded Linux architecture and delivers processing capability of 45+ transactions per second, making it suitable for facilities with moderate to high traffic access points.

Key Features

• Expandable 4-Door Architecture: Base 2-door controller (A2E4P) expands to 4 doors when paired with the A2M expansion board, providing flexible deployment scaling without controller replacement.
• Dual Reader Support Per Door: In/Out reader configuration per door (4 total Wiegand readers) with maximum 300mA per reader at 12V, supporting standard credential technologies.
• Bluetooth Mobile Reader: Integrated A2M mobile reader capability enables credential verification and access control via compatible mobile devices, reducing dependency on fixed card readers.
• Selectable Lock Power: Dual voltage lock power output (12V/24V DC selectable) with 700mA @ 12V or 375mA @ 24V, accommodating both electromagnetic and magnetic lock types without external power supplies.
• Request-to-Exit & Door Position Monitoring: 2 REx inputs (one per door) and 2 door position status inputs enable real-time door state awareness and emergency egress protocols.
• Relay-Based Access Control: 2 Form C relays for door lock control plus 2 auxiliary relays for external device integration (24V @ 2.0A per relay), supporting integrated lighting, alarm, or third-party device triggering.
• Embedded Linux Operating System: Linux-based controller architecture provides stability, scripting capability, and long-term support for custom integration requirements.
• ETL-Listed Design: Compliant with UL-294 standard for Access Control System Units, meeting requirements for regulated environments.
• 5-Year Warranty: Manufacturer backs the controller with 5-year coverage, reducing long-term replacement risk.
• NDAA Section 889 Compliance: Products in this kit comply with NDAA Section 889 Part B guidelines, meeting federal procurement requirements.

Integration & Compatibility

The ACKITM1 kit includes all components required for immediate 4-door deployment: the A2E4P controller with integrated power supply, A2M expansion/mobile reader module, four ACSR35L credential readers, ACMC2 management console, and AP4 software license. The system operates within 50°F to 95°F (10°C to 35°C) and requires 115VAC @ 1.5A input. Backup battery support is available via sealed lead acid battery (not included; recommended Powersonic PS-1270-FI 12V/7AH or equivalent) with 450mA @ 12V standby draw. The quad-core Cortex processor (1.5 GHz) and 1GB DDR3 memory with 8GB eMMC storage provide sufficient capacity for credential databases and transaction logging in standard deployments.

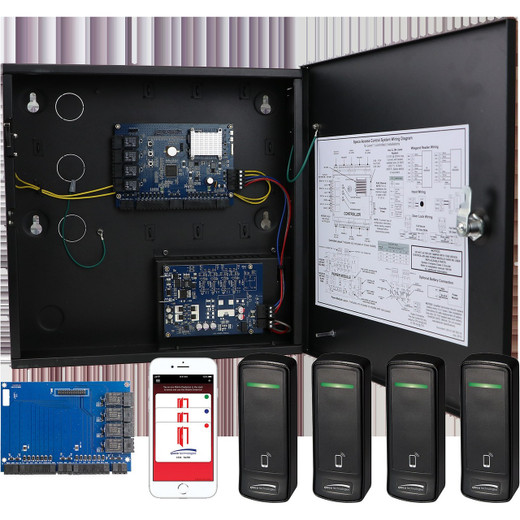

Package Contents

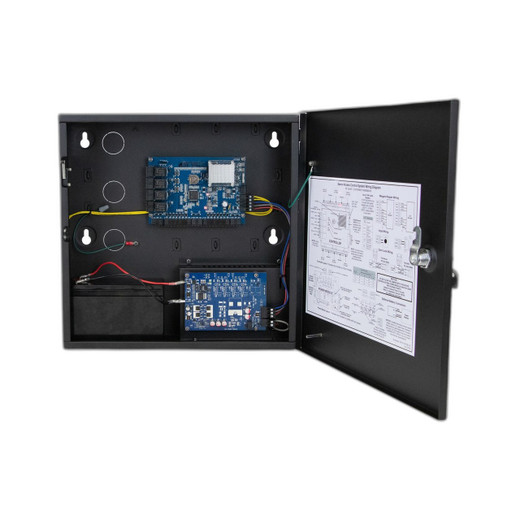

• 1x A2E4P 2-Door Controller with Lock Power & Integrated Supply
• 1x A2M Expansion Board with Bluetooth Mobile Reader
• 4x ACSR35L Credential Readers
• 1x ACMC2 Management Console
• 1x AP4 Software License

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Speco ACKITM1 addresses a practical deployment gap: organizations needing 4-door control without oversized enterprise platforms. This kit bundles controller, expansion, Bluetooth mobile reader, readers, and management software in one purchase, reducing integration complexity and component compatibility risk.

Technical Highlights:

• Transaction Processing: 45+ transactions per second handles peak access times without bottlenecking, important in facilities with cluster badge swipes (shift changes, visitor entry surges).
• Selectable Lock Power Voltage: 12V/24V switching eliminates the need for external power supplies or voltage converters; power budget is embedded in the controller itself.
• REx & Door Status Inputs: Request-to-exit and door position monitoring enable two-way control logic—lock release on authorized exit signal, and immediate alert if a door stays open beyond expected duration.

Deployment Considerations:

• Battery backup is recommended but not included; factor Powersonic PS-1270-FI cost into your quote if standby operation is required during power loss.
• Operating temperature range (50–95°F) is suitable for climate-controlled indoor facilities; use environmental enclosures if deploying near loading docks or outdoor vestibules.
• Wiegand reader protocol supports legacy card stock and modern credential encodings; verify your credential supplier supports this format during pilot.

The ACKITM1 is a solid fit for retail chains, small office parks, healthcare clinics, and light manufacturing where 4-door control is the norm and mobile credential capability adds operational flexibility. NDAA compliance removes procurement friction in government and regulated verticals. Pair it with your existing VMS infrastructure via the management console for unified dashboard operations.
