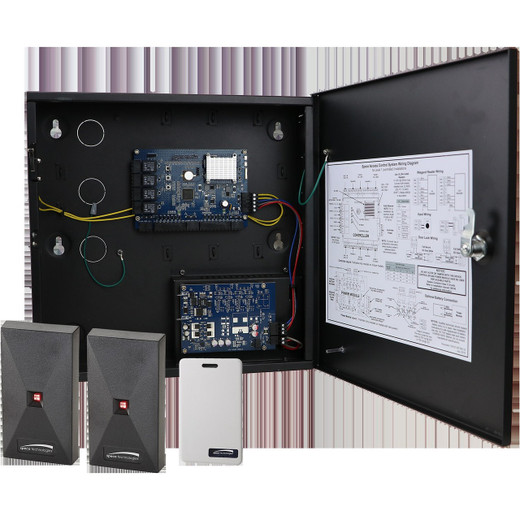

Speco Technologies ACKIT2DRS 2-Door Access Control Kit Bundle

Overview

The Speco Technologies ACKIT2DRS is a complete 2-door access control solution engineered for security integrators and facilities managers requiring expandable multi-door security infrastructure. This power package bundle delivers enterprise-class access control capability starting at 2 doors and scaling to 128 doors through modular expansion and licensing. The ACKIT2DRS kit combines a hardened 2-door controller with integrated lock power, Wiegand card readers, and proximity access cards—all tested and certified for immediate deployment in commercial and institutional environments.

Key Features

• 2-Door Base with 4-Door Expansion Ready: The A2E4P controller manages 2 readers (in/out) natively and expands to 4 doors when paired with an optional A2M expansion board, supporting staged facility growth without controller replacement.
• Integrated Lock Power Supply: Selectable 12V/24V DC lock power output (700mA @ 12V, 375mA @ 24V) eliminates the need for external power supplies; supports up to 2 Form C relays per door for lock and auxiliary control.
• High-Speed Transaction Processing: Embedded Linux operating system with quad-core Cortex processor (1.5 GHz) handles 45+ transactions per second, ensuring responsive credential verification during peak access periods.
• Request-to-Exit and Door Status Monitoring: Dedicated REx inputs (2 total, one per door) and door position status inputs (2 total) enable supervised egress and real-time door state reporting to integrated management dashboards.
• Professional-Grade I/O: Two general-purpose auxiliary inputs support tamper detection, power-fault monitoring, and custom integration logic. Four total Wiegand readers (in/out configuration per door) accommodate standard proximity, magnetic stripe, or smart card credentials.
• Redundancy and Reliability: Recommended sealed lead-acid battery backup (12V, 7AH—Powersonic PS-1270-FI or equivalent, sold separately) maintains controller and reader operation during power loss. Quad-core processing and embedded Linux provide stability during extended operation.
• Industrial Operating Range: Rated for 50°F to 95°F (10°C to 35°C) ambient conditions, suitable for climate-controlled facilities, server rooms, and standard commercial office environments.
• ETL Certification and Compliance: Manufactured in accordance with UL-294 standard for access control system units. Products comply with NDAA Section 889 Part B guidelines, meeting federal procurement requirements.
• Compact Wall-Mount Enclosure: 14.25" × 14.25" × 3.75" (362 × 362 × 95 mm) form factor fits standard electrical cabinets and wall-mount installations without large footprint demands.
• 5-Year Manufacturer Warranty: Backed by Speco's full 5-year hardware warranty, covering controller, power supply, and integrated logic board against manufacturing defects.

Package Contents

• (1) A2E4P – 2-door access control controller with integrated 12V/24V lock power
• (2) AP300HA – Card readers (one set for in/out credential verification)
• (1) APSC1 – Pack of 25 proximity access cards

Scalability and Licensing

The ACKIT2DRS is one half of Speco's modular 2-door platform. Two ACKIT2DRS kits can be combined to create a 4-door system; further expansion to 128 doors is achieved through stacking additional controllers with licensed gateway software. When combining two or more kits to exceed 4 doors, a software license is required to connect multiple controllers. Speco provides licensing guidance documentation and support to simplify multi-controller deployments—contact the manufacturer or your systems integrator to identify the correct license tier for your facility's scale.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the ACKIT2DRS during a multi-site deployment planning engagement for a 12-facility healthcare network. This kit delivers solid architectural fundamentals—integrated lock power, proven Linux-based controller logic, and modular expansion pathways—without unnecessary complexity. For security integrators managing mixed-scale facilities (branch offices, clinics, secure entry points), the ACKIT2DRS balances entry-level cost with professional-grade I/O and certification pedigree.

Technical Highlights:

• Integrated Lock Power and Relay Management: The selectable 12V/24V power output and dual Form C relays per door eliminate external power modules and relay cards for small-to-medium installations, reducing BOM and installation labor.
• Request-to-Exit Supervision: Native REx and door position inputs enable tamper-resistant egress control and real-time occupancy awareness—critical for healthcare, government, and financial facilities subject to fire code and security audits.
• High Transaction Throughput: The quad-core processor and embedded Linux kernel handle 45+ authentications per second without queuing or controller lag, even during morning badge-in rushes at larger facilities.

Deployment Considerations:

• Battery backup is recommended but not included in the kit; budget for a 12V/7AH sealed lead-acid battery and backup-ready enclosure to maintain controller and reader operation during power events. This is especially important in facilities without UPS infrastructure.
• Expansion beyond 4 doors requires an A2M expansion board (for the fourth door) and, beyond that, a second ACKIT2DRS kit plus licensing. Plan your license tier during initial procurement to avoid retrofit licensing costs.
• Operating temperature range (50°F–95°F) is suitable for climate-controlled indoor environments but excludes outdoor or unheated vestibule installations; outdoor applications require external enclosure hardening.

The ACKIT2DRS is a dependable modular choice for integrators building tiered access control across distributed locations. The combination of integrated power, professional I/O, UL certification, and NDAA compliance makes it suitable for government, healthcare, and corporate deployments where audit trail rigor and component traceability matter. Pair it with complementary Speco management software (SecureGuard CMS or Speco Access) to centralize credential and event logging across multiple facilities.
