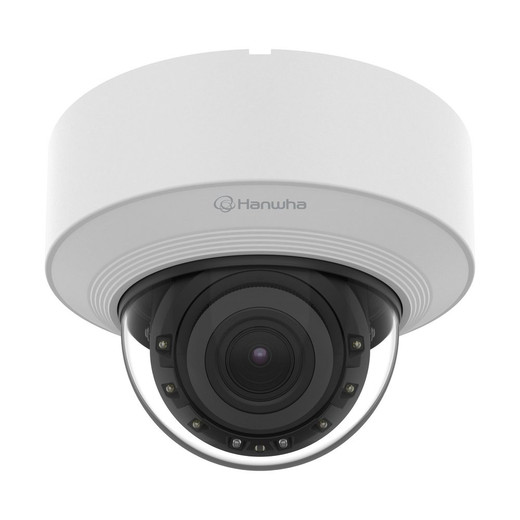

Hanwha XND-C7083RV-RB 4MP AI Dome Camera

Hanwha XND-C7083RV-RB 4MP AI Dome Camera

The Hanwha XND-C7083RV-RB is a 4MP indoor AI dome camera purpose-built for surveillance environments requiring intelligent video analytics, motorized lens control, and dependable low-light performance. Engineered with edge-based AI capabilities, this camera delivers real-time object detection and behavioral intelligence while maintaining seamless compatibility with PoE power infrastructure and ONVIF-standard VMS platforms. Ideal for retail, facilities management, access control, and mixed-lighting spaces where false alarm reduction and rapid incident response are critical.

Key Features

• 4MP Resolution at High Frame Rates: Captures 4MP video at 60 fps (WDR off) or 30 fps (WDR on), delivering forensic-quality detail for real-time monitoring and incident review.
• 3.6x Motorized Varifocal Lens: 2.8–10mm motorized zoom with 109.7°–30.4° field of view enables remote focus and zoom adjustment without physical intervention, reducing installation time and enabling flexible scene coverage.
• 40-Meter IR Night Vision: Infrared illumination with day/night ICR (Infrared Cut filter Removal) ensures continuous 24/7 surveillance with minimal visible light emission.
• Extreme Wide Dynamic Range (120dB WDR): Renders fine detail in high-contrast scenes with bright windows and deep shadows, essential for entrance monitoring and mixed-lighting environments.
• AI Object Detection: Edge-based analytics distinguish persons, faces, vehicles, and license plates in real-time, dramatically reducing false alarms from generic motion triggers.
• Advanced Behavioral Analytics: Virtual line crossing, area intrusion, loitering detection, direction tracking, and entry/exit counting enable proactive threat identification.
• Supplementary Analytics: Defocus detection, tampering alerts, fog detection, audio detection, sound classification, and shock detection provide comprehensive environmental monitoring.
• Durable IP52 & IK08 Rating: IP52 dust/water resistance and IK08 impact resistance ensure reliable operation in demanding indoor environments.
• PoE Powered: Single PoE connection eliminates separate power supplies and simplifies network deployment.

Technical Specifications

• Resolution & Performance: 4MP; 60 fps (WDR off) / 30 fps (WDR on); H.265 compression
• Optics: 2.8–10mm motorized varifocal lens; 109.7°–30.4° FOV
• Night Vision: 40m IR range with day/night ICR
• Power & Connectivity: PoE; ONVIF-compatible for multi-vendor VMS integration
• Environmental Rating: IP52 (dust/water); IK08 (impact); -10°C to +50°C operating temperature
• Mount Type: Ceiling

Applications

• Retail stores and shopping centers with mixed lighting and high foot traffic
• Office lobbies, entrances, and access control points
• Facility management in warehouses and logistics centers
• Parking areas and vehicle tracking scenarios
• Event venues requiring real-time crowd monitoring

Marty Allison

The XND-C7083RV-RB combines intelligent AI analytics with motorized optics to deliver versatile, low-maintenance surveillance. The 3.6x motorized zoom eliminates the need for fixed-lens variants or manual refocusing after installation—a significant operational advantage in multi-zone deployments. H.265 compression reduces bandwidth consumption by 40–50% compared to H.264, critical for organizations managing large camera counts over constrained network infrastructure.

The 120dB WDR performance addresses a common challenge in indoor surveillance: dynamic lighting across entrance doors, retail windows, and office spaces. By rendering both bright and shadow detail simultaneously, the camera reduces the need for supplementary lighting or manual exposure adjustment.

Edge-based AI distinguishes this camera from motion-only alternatives. Person/face/vehicle/license plate detection filters noise from pets, shadows, and branch movement, while behavioral analytics (virtual lines, loitering, intrusion) enable proactive alerting rather than reactive forensic review. Organizations benefit from fewer false alarms, faster incident triage, and reduced VMS storage burden.

PoE power simplifies installation and supports failover scenarios—the camera operates on standard enterprise network infrastructure without dedicated power circuits. ONVIF compatibility ensures vendor flexibility and future-proofs your system against platform lock-in.
