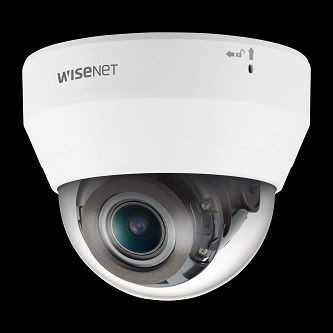

Hanwha QND-7082R 4MP Indoor IR Dome Camera

Hanwha QND-7082R 4MP Indoor IR Dome Camera

The Hanwha QND-7082R is a compact 4MP indoor dome engineered for detailed surveillance in controlled environments. Built around a 1/3" CMOS sensor paired with a 3.2–10mm motorized varifocal lens, this camera delivers 2560×1440 resolution at 30fps with flexible field-of-view adjustment from 98.6° wide-angle to 30.8° telephoto coverage. The combination of infrared illumination, low-light sensitivity, and intelligent video processing makes it suitable for offices, retail spaces, lobbies, and secure facilities requiring 24/7 monitoring without the complexity of pan/tilt or external lighting.

Key Features

• 4MP Resolution (2560×1440) at 30fps — delivers crisp, fluid video without motion blur, making it practical for reading facial details or badge information at typical office viewing distances (8–15 feet).
• 3.1x Motorized Varifocal Lens (3.2–10mm) with Auto-Iris Control — eliminates the need to swap or pre-set lens focal length; adjust coverage post-deployment via camera web interface or VMS, saving field visits and hardware costs.
• 20m Infrared Night Vision — built-in IR LEDs provide monochrome surveillance in complete darkness or dimly lit corridors without external illuminators, reducing overall installation footprint.
• 120dB Wide Dynamic Range (WDR) — balances exposure in mixed lighting scenarios (e.g., sunlit entrance doors or skylights next to shadowed corners), preventing blown-out highlights or crushed shadows that obscure detail.
• Auto Day/Night Switching with ICR Technology — automatically shifts to monochrome when ambient light drops, optimizing IR effectiveness and preserving detail in low-light conditions.
• PoE Powered (IEEE 802.3af Class 3, under 13W) — single cable installation eliminates separate power supplies and reduces cable runs; standard 802.3af PoE switches handle this camera without strain on power budgets.
• H.265/H.264 Dual Codec with WiseStream II Adaptive Bitrate — H.265 cuts storage requirements roughly 40–60% compared to H.264 depending on scene complexity, meaningful for 24/7 edge recording or multi-camera NVR deployments with limited disk space.
• MicroSD Card Slot (up to 128GB) — local edge storage enables continuous recording without dependency on network or centralized NVR, useful for branch locations or supplementary backup.
• Motion Detection, Defocus Detection, Tampering Alerts, and Virtual Line Analytics — on-camera analytics reduce false alerts compared to simple pixel-change detection, and virtual line crossing supports entry/exit counting or perimeter breach detection without VMS processing overhead.
• 120dB WDR and SSDR (Spatial and Temporal Digital Noise Reduction) — maintains usable video in dynamic indoor environments, suppressing noise artifacts that degrade recognition tasks in low-light IR scenes.
• Up to 6 Unicast Users with 3 Profile Options — intelligent codec selection minimizes bandwidth; multiple concurrent viewers (analysts, guards, mobile) don't require separate camera streams.
• Dual Alarm I/O — integration with door sensors, external relays, or lighting triggers; enables automated responses (record on alarm, push notification, relay activation).
• Electronic Shutter Speed (1/5–1/12,000 sec) — precise exposure control under fluorescent flicker or near windows, preventing unwanted motion blur or exposure cycling artifacts.

Operational Environment and Physical Design

The QND-7082R is rated for -10°C to +55°C operation with 95% humidity tolerance, making it suitable for standard indoor HVAC environments, kitchens, and washrooms with moisture exposure. The compact dome housing (Ø119.8 × 98.8mm, 320g) fits standard ceiling mounts and blends into modern interiors with its white plastic finish. Simple focus and lens calibration keep deployment straightforward—no complex commissioning procedures.

Integration and Compatibility

Hanwha IP cameras in this family prioritize standards-based integration. The QND-7082R is ONVIF Profile S/G/T compliant, ensuring compatibility with third-party VMS platforms (Milestone XProtect, Genetec, etc.), NVRs, and management software without vendor lock-in. HTTPS/SSL encryption, 802.1X authentication, and IP filtering protect camera access; SNMPv3 support enables enterprise monitoring and alerting. This broad compatibility reduces deployment risk when integrating into heterogeneous security architectures.

Frequently Asked Questions

Q: What is the actual field of view range on the QND-7082R?

A: The motorized 3.2–10mm varifocal lens provides coverage from 98.6° (wide-angle) to 30.8° (telephoto), offering a 3.1x zoom ratio. This eliminates the need for separate wide or narrow lenses in a single-room or entrance installation.

Q: Does the QND-7082R work with Milestone XProtect or other third-party VMS platforms?

A: Yes. The camera is ONVIF Profile S/G/T compliant, meaning it integrates with ONVIF-compatible management software and NVRs without proprietary plugins. Integration is straightforward via camera IP and ONVIF discovery.

Q: How much storage does the QND-7082R require for 24-hour continuous recording?

A: Bandwidth varies with lens position, scene complexity, and WiseStream II settings, but H.265 encoding typically reduces storage by 40–60% compared to H.264. The microSD slot (up to 128GB) supports several days to weeks of continuous local recording depending on resolution and bitrate profiles configured.

Q: Can I adjust the focus and zoom after installation?

A: Yes. The motorized varifocal lens and auto-focus can be adjusted remotely via the camera web interface or VMS, eliminating the need for a technician return visit if coverage requires fine-tuning post-deployment.

Q: What is the infrared range, and will it work through glass or tinted domes?

A: The QND-7082R has a 20m (65 ft) infrared range in complete darkness. IR does not transmit through standard glass or most protective dome covers—ensure the camera has direct line-of-sight to the monitored area for effective night vision.

Q: Does the QND-7082R support two-way audio or external microphones?

A: The evidence provided does not indicate built-in audio or microphone support. If audio is required, integrate an external audio encoder or select a camera with embedded audio input from the broader dome camera lineup.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QND-7082R targets mid-range indoor deployments where image quality, coverage flexibility, and codec efficiency matter more than extreme low-light performance or wide-area surveillance. Its motorized varifocal lens and 120dB WDR optics make it ideal for spaces with variable lighting—retail floors with skylights, office lobbies mixing natural and artificial light, or secure entry points. The H.265 codec and WiseStream II adaptive bitrate keep storage costs predictable, critical for edge recording on microSD or continuous logging in resource-constrained environments.

Technical Highlights:

• Motorized 3.2–10mm Lens with 3.1x Zoom: adjustable post-deployment means no field return visits; covers wide (98.6°) to narrow (30.8°) framing without lens swaps—cost-effective for flexible deployments.
• H.265 Compression + WiseStream II: cuts bitrate 40–60% versus H.264, reducing storage footprint and network bandwidth; critical when recording 24/7 on microSD or in bandwidth-constrained branches.
• 120dB WDR + SSDR Noise Reduction: maintains usable video in mixed lighting and low-light IR scenes; suppresses banding and noise artifacts that degrade face recognition or badge reading at typical office distances.
• 20m IR Range: sufficient for interior hallways, entries, and medium-sized rooms; competitive with fixed-lens domes but note that IR does not transmit through glass protective covers.
• Sub-13W PoE Draw: standard 802.3af switches handle multiple units without budget strain; eliminates separate power feeds and simplifies ceiling-mount cabling.

Deployment Considerations:

• IR does not penetrate glass domes or protective covers—mount the camera with direct line-of-sight for night vision. If you need added dome protection, consider a clear acrylic cover rated for IR transparency or plan alternate mounting.
• The 4MP resolution at 30fps suits office/retail viewing distances (8–15 feet) well; beyond 30–40 feet, detail drops noticeably. For wide-span warehouses or large open floors, stack multiple cameras or consider a higher-resolution variant from the Hanwha catalog.
• MicroSD local storage (up to 128GB) is supplementary; design for centralized NVR or cloud backup as primary retention, especially if compliance requires 30+ days of archive.
• WiseStream II bitrate tuning requires VMS or camera interface access; out-of-box defaults are reasonable, but fine-tuning per scene (retail vs. hallway) improves storage efficiency.

The QND-7082R is a solid fit for corporate offices, retail environments with variable daylight, and entry lobbies where motorized zoom flexibility and bandwidth efficiency reduce operational overhead. Skip it if you need true outdoor weatherproofing, extreme low-light performance, or coverage of large open areas; it's built for controlled, well-lit indoor spaces.
