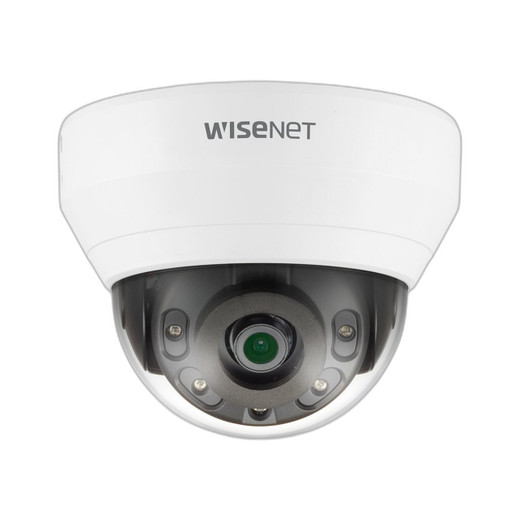

Hanwha QND-7022R 4MP Indoor IR Dome Network IP Camera

Hanwha QND-7022R 4MP Indoor IR Dome Camera

The Hanwha QND-7022R is a compact 4MP indoor dome camera engineered for reliable surveillance in controlled environments. Built on a 1/3" CMOS sensor with a fixed 4mm lens, this camera delivers 2560 x 1440 resolution at up to 30fps, capturing clear, detailed footage suited for offices, retail spaces, and secure facilities. Its combination of intelligent compression, low-light performance, and built-in analytics makes it a practical choice for facilities requiring dependable indoor monitoring without complex installation.

Key Features

• 4MP resolution (2560 x 1440) at 30fps with H.265/H.264 and MJPEG codec support
• Infrared illumination with 20m viewing range for 24/7 low-light surveillance
• Wide Dynamic Range (120dB) with BLC, WDR, and SSDR for balanced exposure
• F1.6 maximum aperture enabling 0.15 Lux color imaging and true 0 Lux IR operation
• Advanced analytics including motion detection, defocus detection, directional detection, tampering, and virtual line crossing
• Built-in microphone for synchronized audio recording
• Hallway View and Lens Distortion Correction (LDC) for optimized perspective in narrow spaces
• Up to 6 simultaneous unicast streams with multiple profile support
• MicroSD/SDHC/SDXC edge storage up to 128GB for local backup
• PoE (IEEE 802.3af) and 12V DC power options, minimal consumption (6.1W typical PoE)
• ONVIF Profile S/G/T and SUNAPI HTTP API for open ecosystem integration
• Comprehensive security: HTTPS/SSL, Digest authentication, 802.1X support, user access logging

Technical Specifications

Imaging & Optics: The 78.2° horizontal field of view with 92° diagonal coverage suits standard indoor deployments. Pan/tilt/rotate capability (0–350°/0–67°/0–355°) enables flexible mounting. Intelligent gain control and selectable white balance modes (ATW, AWC, Manual, Indoor, Outdoor) adapt to varying lighting conditions.

Compression & Streaming: WiseStream II smart codec technology minimizes bandwidth through selective region-of-interest encoding. Support for H.265 delivers improved compression efficiency over H.264, while multicast streaming reduces server load in multi-camera installations.

Alarm & Event Management: Four motion detection zones with polygonal masking, six privacy masking zones, and dedicated alarm I/O provide granular control. FTP/email notifications, SD recording triggers, and event-based handover ensure timely alerting and forensic capability.

Environmental: Operating range -10°C to +55°C suits most indoor facilities. The compact dome form factor (110mm diameter, 255g) integrates into ceiling-mounted or surface installations with minimal visual footprint.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QND-7022R targets budget-conscious deployments where 4MP resolution and fixed-lens simplicity outweigh PTZ flexibility. Its 120dB WDR and IR range are well-suited to mixed-lighting indoor environments—retail backrooms, office corridors, and storage areas. Dual codec support (H.265/H.264) with WiseStream II compression balances quality retention against storage and bandwidth constraints.

The built-in microphone and comprehensive event triggers make it suitable for integrated AV installations. Low PoE power draw (6.1W typical) enables long cable runs and daisy-chaining without dedicated PSU infrastructure. ONVIF and SUNAPI compatibility ensure vendor neutrality in NVR and VMS selection, reducing lock-in risk.

For setups requiring PTZ, zoom, or outdoor-rated durability, higher-tier Hanwha models should be considered.
