Hanwha QND-7032R 4MP Indoor Network IP Camera

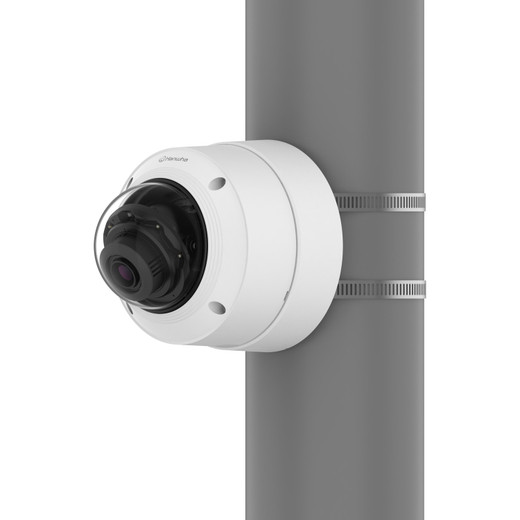

Hanwha QND-7032R 4MP Indoor Dome Camera

The Hanwha QND-7032R delivers professional-grade 4MP surveillance for indoor environments requiring high-resolution monitoring and flexible deployment. Built on a 1/3" CMOS imaging sensor, this compact dome camera captures crisp, detailed video at 2560 x 1440 resolution at 30fps, making it ideal for applications where image clarity and real-time monitoring are critical. Advanced codec support including H.265, H.264, and MJPEG, combined with WiseStream II intelligent compression, optimizes bandwidth utilization without compromising video quality.

Key Features

• 4MP resolution (2560 x 1440) at 30fps for detailed video capture
• 6mm fixed focal lens with 49° horizontal field of view
• 120dB wide dynamic range (WDR) with backlight compensation for challenging lighting
• Infrared night vision with 20m viewable length for 24/7 monitoring
• Built-in microphone for integrated audio surveillance
• WiseStream II smart codec technology for efficient bandwidth management
• Multiple video compression options: H.265, H.264, MJPEG
• Pan/tilt/rotate capability: 350°/67°/355° range
• 4 motion detection zones with polygonal configuration support
• 6 privacy masking zones for compliance with privacy regulations

Technical Highlights

The QND-7032R integrates comprehensive image processing features including auto day/night switching (ICR), adaptive white balance, lens distortion correction (LDC), and digital noise reduction (SSNR) for superior image quality across varying conditions. Low-light performance reaches 0.15 Lux in color mode and 0 Lux with IR assistance, ensuring visibility in dimly lit indoor spaces. The camera supports multiple streaming profiles with unicast (6 simultaneous users) and multicast capabilities, enabling flexible network deployment.

Security features include HTTPS/SSL encryption, digest and login authentication, IP filtering, 802.1X network authentication, and user access logging. The camera is fully ONVIF-compliant (Profile S/G/T) and supports Hanwha's SUNAPI HTTP API for seamless integration into third-party management systems. Edge storage via microSD card (up to 128GB) provides local backup recording, while event-triggered FTP and email uploads ensure critical footage is preserved.

Designed for efficient deployment, the QND-7032R operates on PoE (IEEE 802.3af, Class 3) or 12VDC with minimal power consumption (6.1W typical PoE, 5.1W typical 12VDC). Its compact form factor (Ø110.0 x 86.0mm) fits standard ceiling mounts and conduit installations, making it suitable for quick indoor deployments without extensive infrastructure modifications.

Applications

Ideal for office buildings, retail environments, educational institutions, corporate lobbies, conference rooms, and other indoor spaces where reliable surveillance with audio-visual monitoring is required. The combination of 4MP resolution, intelligent compression, and flexible alert mechanisms makes it suitable for both passive monitoring and active event detection scenarios.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

The QND-7032R represents a balanced offering in the compact indoor dome category. The 6mm fixed lens and 49° horizontal FOV are well-suited for medium-range indoor monitoring typical of office and retail applications. The WiseStream II codec implementation is particularly valuable for organizations managing bandwidth constraints across multiple camera deployments—H.265 encoding at maximum resolution reduces bitrate by approximately 50% compared to H.264 without noticeable quality loss.

The 120dB WDR capability addresses real-world installation challenges where windows or skylights create high-contrast scenes, though the fixed lens means scene framing must be planned at installation. Night vision performance at 20m is adequate for most interior spaces, though exterior windows may create reflectance issues. The camera's support for both analog (CVBS) and digital installation interfaces via CVBS output and RJ-45 makes retrofitting into legacy systems feasible. For organizations requiring PTZ functionality or wider FOV, the fixed optical specification should be considered during site planning.
