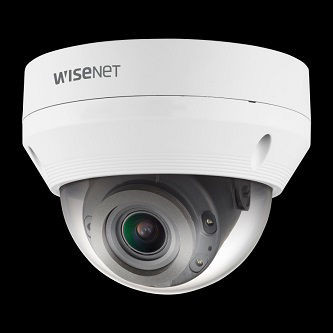

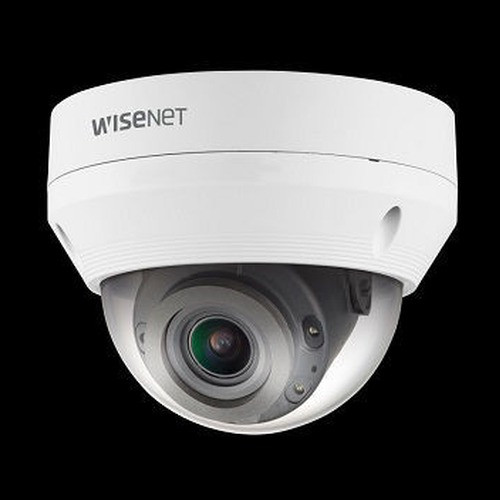

Hanwha QNV-7082R (4MP) Vandal Dome Varifocal Outdoor IP Camera

MSRP: $619.00
Was: $402.50
Now:

Add to Cart for Sale Price!

$372.99
Adding to cart… The item has been added
SKU: QNV-7082R
UPC: 8801089202703
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 3-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha QNV-7082R (4MP) Vandal Dome Varifocal Outdoor IP Camera

MSRP: $619.00
Was: $402.50
Now:

Add to Cart for Sale Price!

$372.99
Add to Cart

Frequently Bought Together

Hanwha QNV-7082R Front
Description

The Hanwha QNV-7082R Vandal Resistant 4MP Outdoor IR Dome IP Camera is a testament to Hanwha's commitment to combining high-definition surveillance with robust design to meet the demands of outdoor security environments. This camera is equipped with a 1/3" CMOS sensor, delivering crisp 4MP resolution images, ensuring detailed coverage even in the most challenging conditions. Its motorized varifocal lens, ranging from 3.2 to 10mm, allows for flexible field-of-view adjustments, enabling operators to hone in on critical areas or widen the scope for broader surveillance. Enhanced with a 120dB Wide Dynamic Range (WDR), the QNV-7082R adeptly handles complex lighting scenarios, ensuring balanced exposure and clear images in both brightly lit and shadowed environments. The camera's ability to produce color images in as low as 0.1Lux and maintain visibility up to 30 meters in total darkness with its IR LEDs makes it an all-weather, round-the-clock monitoring solution.

Durability and advanced functionality are at the core of the QNV-7082R's design. It boasts an IP66 rating, ensuring protection against dust and water, and an IK10 rating for impact resistance, making it an ideal candidate for areas susceptible to vandalism or harsh environmental elements. The camera supports multiple compression formats, including H.265, H.264, and MJPEG, optimizing storage and bandwidth use without compromising video quality. Intelligent video analytics, such as defocus and directional detection, motion and tampering alerts, enhance the camera's security capabilities, allowing for proactive incident response. The inclusion of Hallway View and Lens Distortion Correction (LDC) further tailors its functionality for monitoring narrow paths and correcting image distortions, respectively. With support for Micro SD/SDHC/SDXC storage up to 128GB and PoE for simplified installation, the QNV-7082R stands as a versatile, high-performance surveillance solution for outdoor spaces needing steadfast security measures.

Key Features:

  • High-Resolution Clarity: With a resolution of up to 1920 x 1080 pixels, this camera delivers incredibly sharp and detailed images, leaving no room for ambiguity.

  • Versatile Lens with Motorized Zoom: The motorized zoom lens offers flexibility with a range of 3.2 - 10mm, allowing you to adjust your focus as needed to capture crucial details.

  • Wide Field of View: Cover more ground with a horizontal field of view at 98.6°, vertical FOV at 52.3°, and diagonal FOV at 115.7°, minimizing blind spots.

  • Custom Angle Adjustment: Tailor your surveillance angles with 350° pan, 67° tilt, and 355° rotation, ensuring complete coverage.

  • Advanced Analytics: Benefit from advanced analytics features including defocus detection, directional detection, motion detection, enter/exit monitoring, tampering detection, and virtual line detection for enhanced security.

  • Digital Noise Reduction: Enjoy crystal-clear video footage with SSDR digital noise reduction technology.

  • Wide Dynamic Range: The camera boasts a wide dynamic range of 120dB, ensuring exceptional image quality even in challenging lighting conditions.

  • Backlight Compensation: Choose from various modes, including BLC, WDR, or SSDR, to optimize image quality in backlight scenarios.

  • Night Vision: Wise Auto(ICR) technology allows night-time viewing with an infrared range of up to 60ft, ensuring 24/7 surveillance.

  • Efficient Video Compression: Select from WiseStream II, H.265, H.264, or JPEG (MJPEG) video compression to maximize bandwidth usage while maintaining video quality.

  • Power Options: The camera supports both PoE (Power over Ethernet) and 12VDC power supply options, making installation flexible and hassle-free.

  • Alarm I/O: With one input and one output for alarms, it enhances your surveillance capabilities.

Compatibility:

The Hanwha QNV-7082R is compatible with various surveillance and network systems, ensuring seamless integration with your existing setup.

Specifications:

  • Resolution: Up to 1920 x 1080
  • Lens: Motorized Zoom 3.2 - 10mm
  • Sensor: 4MP 1/3" CMOS
  • Field of View:
    • Horizontal: 98.6°
    • Vertical: 52.3°
    • Diagonal: 115.7°
  • Angle Adjustment:
    • Pan: 0° to 350°
    • Tilt: 0° to 67°
    • Rotate: 0° to 355°
  • Analytics: Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • Digital Noise Reduction: SSDR
  • Wide Dynamic Range: 120dB
  • Backlight Compensation: BLC, WDR, SSDR
  • Night Time Viewing: Wise Auto(ICR) up to 60ft
  • Video Compression: WiseStream II/H.265/H.265/ H.264/ JPEG (MJPEG)
  • Power Supply: PoE(IEEE802.3af, Class3), 12VDC
  • Alarm I/O: One Input and One Output
  • Environmental Ratings: IP66, IK10
  • Operating Conditions: -40 °F to 131 °F
  • On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB each

Package Contents:

  • Hanwha QNV-7082R Vandal Resistant 4MP Outdoor IR Dome IP Camera

Enhance your security infrastructure with the Hanwha QNV-7082R. With its advanced features and compatibility, it's the ideal choice for businesses and IT sectors seeking reliable IP surveillance solutions. Experience peace of mind and comprehensive monitoring like never before.

Specifications
Imaging Device: 1/3" CMOS
Resolution: 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps
NETD: None
Pixel Size: None
Min. Illumination: Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Video Out: CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance: None
Focal Length (Zoom Ratio: 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio: F1.6(Wide) ~ F2.9(Tele)
Angular Field of View: H : 98.6˚(Wide) ~ 30.8˚(Tele), V : 52.3˚(Wide) ~ 17.3˚(Tele), D : 115.7˚(Wide) ~ 35.3˚(Tele)
Min. Object Distance: None
Focus Control: Simple focus
Lens Type: DC auto iris
Mount Type: None
Optional Lens: None
Pan / Tilt / Rotate Range: 0°~350° / 0°~67° / 0°~355°
Pan Range: None
Pan Speed: None
Tilt Range: None
Tilt Speed: None
Rotate Range: None
Sequence: None
Preset Accuracy: None
Camera Title: Displayed up to 85 characters
Direction Indicator: None
Day & Night: Auto(ICR)
Backlight Compensation: BLC, WDR, SSDR
Wide Dynamic Range: 120dB
Digital Noise Reduction: SSNR
Digital Image Stabilization: None
Defog: None
Motion Detection: 4ea, polygonal zones
Privacy Masking: 6ea, rectangular zones
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Digital PTZ: None
Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)
Analytics: Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence: None
Serial Interface: None
Alarm I/O: Input 1ea / Output 1ea
Alarm Triggers: Analytics, Network disconnect, Alarm input
Alarm Events: File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover
Audio In: Line in
Audio Out: None
IR Viewable Length: 30m(98.42ft)
IR Illuminator (Optional: None
Water Removal: None
Auto Tracking: None
Coaxial Protocol: None
Color Palettes: None
Temperature Detect Range: None
Temperature Accuracy: None
Temperature Detection: None
Additional: None
Ethernet: RJ-45 (10/100BASE-T)
Video Compression: H.265/H.264 : Main/High, MJPEG
Audio Compression: G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec: Manual (5ea area), WiseStreamⅡ
Video Quality Adjustment: H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control: H.264/H.265 : CBR or VBR MJPEG : VBR
Streaming: Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface: ONVIF Profile S/G/T, SUNAPI (HTTP API)
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer: None
Edge Storage: Micro SD/SDHC/SDXC 1slot 128GB
Memory: 512MB RAM, 256MB Flash
Operating Temperature / Humidity: -40°C~+55°C (-40°F~+131°F) / Less than 95% RH ＊Start up should be done at -30°C or above
Storage Temperature / Humidity: -40°C~+60°C (-40°F~+140°F) / Less than 95% RH
Certification: IP66, IK10
Input Voltage: PoE(IEEE802.3af, Class3), 12VDC
Power Consumption: PoE: Max 11.4W, typical 8.5W 12VDC: Max 9.6W, typical 7.2W
Color / Material: White / Aluminum
RAL Code: RAL9003
Product Dimensions / Weight: Ø137.0 x 106.1mm (Ø5.39 x 4.18"), 710g (1.565 lb)
Compatible Conduit hole / Gangbox: 3/4"(M25) Single, Double, 4"Octagon
Hanging Mount (Dome: SBP-301HMW2
Skin Cover (Dome: SPB-VAW72 (White)
Weather Cap (Dome: None
Power Module: None
Backbox: SBV-136BW
Detect (25PPM/ 8PPF: Wide: 27m(89.86ft) / Tele: 129m(422.61ft)
Observe (63PPM/ 19PPF: Wide: 11m(35.95ft) / Tele: 52m(169.04ft)
Recognize (125PPM/ 38PPF: Wide: 6m(17.97ft) / Tele: 26m(84.52ft)
Identify (250PPM/ 76PPF: Wide: 3m(8.99ft) / Tele: 13m(42.26ft)
