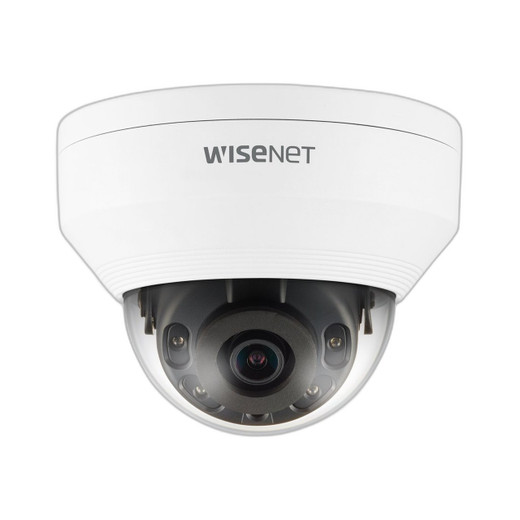

Hanwha QNV-7012R 4MP Outdoor IR Vandal Dome Camera

Hanwha QNV-7012R 4MP Outdoor IR Vandal Dome Camera

The Hanwha QNV-7012R is a rugged 4MP outdoor network dome camera engineered for reliable surveillance in demanding environments. Built with a 1/3" CMOS sensor and 2.8mm fixed lens, it captures crisp, detailed footage across a 107.5° horizontal field of view. The camera delivers 30fps at 4MP resolution with support for H.265, H.264, and MJPEG codecs, ensuring efficient bandwidth utilization without compromising image quality.

Key Features

• 4MP resolution (2560 x 1440) with multiple format support
• 120dB Wide Dynamic Range (WDR) for mixed lighting conditions
• 20-meter infrared night vision range with automatic Day/Night switching
• IK10 vandal-resistant and IP66 weatherproof rating
• Advanced analytics: motion detection, directional detection, tampering, virtual line, and enter/exit monitoring
• 128GB microSD/SDHC/SDXC edge storage capability
• PoE (IEEE 802.3af) and 12VDC power options
• Compact dome design with 0° to 350° pan and 0° to 67° tilt range

Technical Highlights

The QNV-7012R excels in low-light environments with minimum illumination of 0.15Lux in color mode (F2.0) and 0Lux in infrared mode. Its 120dB WDR capability, combined with Backlight Compensation (BLC) and Smart Stream II compression, delivers clarity in high-contrast scenes while reducing storage demands. The camera supports multiple intelligent features including defocus detection, lens distortion correction (LDC), and adaptive white balance (ATW/AWC/Manual modes).

Network connectivity is comprehensive with IPv4/IPv6 support, ONVIF Profile S/G/T compliance, and SUNAPI HTTP API integration. Security is enforced through HTTPS/SSL, digest authentication, IP filtering, 802.1X authentication, and user access logging. The camera streams to up to 6 unicast users simultaneously with multiple profile support.

Audio capability includes selectable microphone or line-in input with G.711 and G.726 compression options. Alarm functionality provides 1 input and 1 output with event triggers for analytics, network disconnection, and direct alarm inputs. Events can trigger FTP uploads, email notifications, and NAS/SD card recording.

Durability & Environmental Performance

Housed in aluminum with IP66 and IK10 certifications, the QNV-7012R withstands harsh outdoor conditions with operating temperatures from -40°C to +55°C and humidity up to 95% RH. Power consumption is minimal at 8.1W typical (PoE) or 6.5W (12VDC), reducing operational costs. The compact form factor (Ø120.3 x 91.7mm, 510g) simplifies installation and is compatible with standard mounting hardware.

Applications

Ideal for perimeter surveillance, building entrances, parking facilities, and industrial sites where impact resistance and environmental durability are critical. The camera's combination of 4MP clarity, intelligent analytics, and robust construction makes it suitable for retail, transportation, and critical infrastructure monitoring.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

The QNV-7012R represents a balanced solution for organizations requiring outdoor surveillance without extreme resolution demands. Its H.265 codec support delivers bandwidth efficiency comparable to higher-resolution alternatives, while the IK10 vandal rating and IP66 sealing ensure long-term reliability in exposed installations. The 120dB WDR capability effectively handles challenging lighting scenarios common in outdoor deployments, and edge storage via microSD reduces dependency on centralized NVR infrastructure.

For medium-range observation requirements (15-25 meters), this camera delivers solid performance with minimal power draw and straightforward integration into ONVIF-compatible systems.
