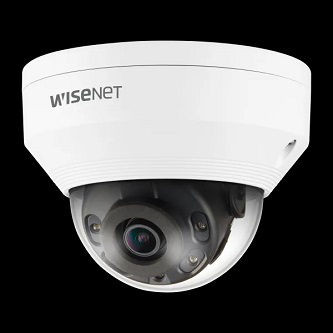

Hanwha QNV-7032R 4MP Outdoor IR Vandal Resistant Dome

Hanwha QNV-7032R 4MP Outdoor IR Vandal Resistant Dome Camera

The Hanwha QNV-7032R is a robust 4MP outdoor network IP camera purpose-built for high-security surveillance in demanding environments. Combining vandal-resistant construction with advanced imaging technology, this fixed-dome camera delivers reliable performance across extreme temperatures and challenging weather conditions. With intelligent analytics and flexible compression options, it provides enterprise-grade surveillance without excessive bandwidth consumption.

Key Features

• 4MP resolution (2560 x 1440) at 30fps H.265/H.264 codec support
• 30-meter IR night vision with 0 Lux capability in B/W mode
• 120dB Wide Dynamic Range (WDR) for superior low-light performance
• IK10 vandal-resistant and IP66 weatherproof ratings
• WiseStream II smart codec technology for bandwidth optimization
• Built-in analytics: motion detection, defocus, tampering, directional detection, Enter/Exit monitoring
• Hallway View and Lens Distortion Correction (LDC) for flexible deployment
• Dual audio input (mic/line), Alarm I/O, and microSD card slot (up to 128GB)
• PoE or 12VDC power options with low power consumption (8.1W typical)

Technical Specifications

The QNV-7032R uses a 1/3" CMOS imaging device with a fixed 6mm focal length and F2.0 aperture, delivering a 49° horizontal field of view. Multiple video resolutions are supported (2560x1440 down to 320x240) with adaptive framerate control. Color sensitivity reaches 0.15 Lux at F2.0, while infrared LEDs enable complete darkness surveillance. The camera supports H.265, H.264, and MJPEG compression with configurable bitrate control (CBR/VBR). Smart encoding features include manual area-based codec selection and WiseStream II for dynamic bandwidth reduction.

Imaging enhancements include Auto Day/Night switching, Backlight Compensation (BLC/SSDR), and Digital Noise Reduction (SSNR). Pan/Tilt/Rotate capability (0-350°/0-67°/0-355°) enables flexible mounting orientations. Video rotation supports 90°/270° hallway view for vertical corridor monitoring.

Network capabilities include ONVIF Profile S/G/T compliance, SUNAPI HTTP API, and full IPv4/IPv6 support across TCP, UDP, RTP, RTSP, and multicast protocols. Security features encompass HTTPS/SSL encryption, Digest authentication, IP filtering, 802.1X, and user access logging. The camera supports up to 6 concurrent unicast streams with three independent profiles.

Durability & Environmental Performance

Rated for IP66 (dust-tight, high-pressure water jets) and IK10 (1.2m drop impact resistance), this camera withstands severe outdoor conditions. Operating temperature range spans -40°C to +55°C, with storage tolerance to +60°C. The white aluminum housing with RAL9003 finish resists corrosion and UV degradation. Compact dimensions (120.3mm diameter, 510g) facilitate discrete installation.

Analytics & Event Management

Integrated analytics detect motion within 4 polygonal zones, defocus conditions, directional movement, and tampering attempts. Virtual line crossing and Enter/Exit detection enable perimeter security. Events trigger FTP/email file uploads, SD/NAS recording, email notifications, and alarm outputs for real-time response.

Applications

Ideal for outdoor perimeter monitoring, parking facilities, building entrances, transportation terminals, industrial sites, and retail storefronts requiring vandal-proof, weather-resistant surveillance with extended night vision range.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNV-7032R balances cost-effectiveness with enterprise features. The 120dB WDR and 30m IR range address mixed lighting scenarios common in outdoor deployments. WiseStream II codec technology significantly reduces storage costs compared to standard H.264, critical for facilities with limited bandwidth or long retention periods.

IK10/IP66 ratings exceed minimum outdoor standards, suitable for high-vandalism areas. The fixed 6mm lens and 49° horizontal FOV target general-purpose perimeter and entrance monitoring; installations requiring wider coverage or PTZ capability should consider alternative models. Edge recording via microSD provides failover when network connectivity drops.

ONVIF compliance ensures integration flexibility across VMS platforms. The 8.1W typical power draw minimizes PoE infrastructure demands, reducing cabling costs in distributed deployments.
