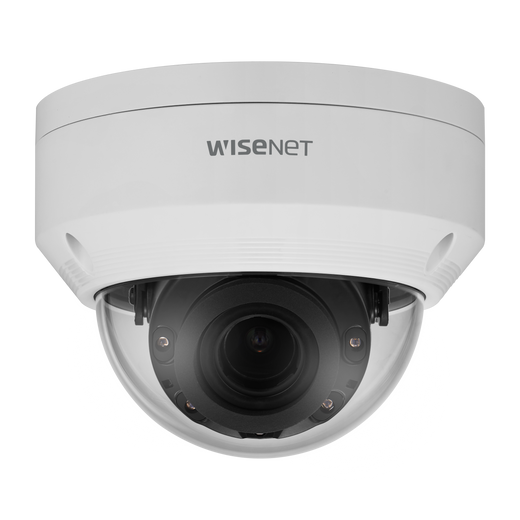

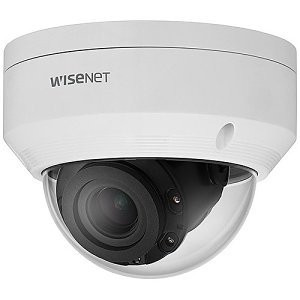

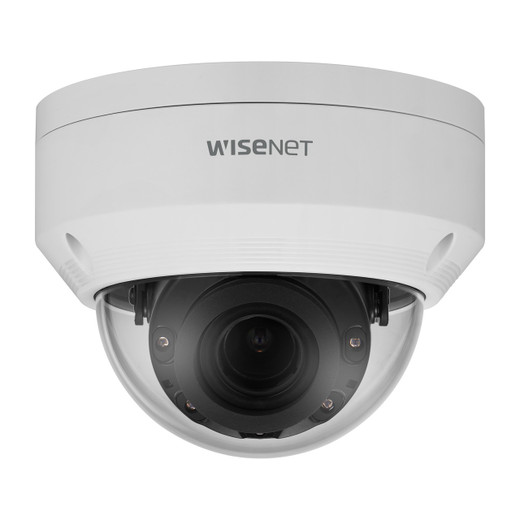

Hanwha ANV-L7082R 4MP High Definition Outdoor PTZ Dome IP Camera

We've deployed the Hanwha ANV-L7082R on parking lot perimeters, building facades, and campus grounds where operators need one camera to do the job of three fixed domes. The differentiator is the combination of 30x optical zoom, 120dB WDR, and 940nm invisible IR—it delivers usable footage in mixed-light scenes (morning sun + shadowed alcove) without the maintenance burden of external lighting or the image artifacts of aggressive digital zoom on a fixed camera. In our experience, the PTZ mechanism is smooth and responsive; pan/tilt presets fire reliably on tamper or loitering alerts, and the 350° pan coverage means you rarely need a second unit per zone. The trade-off is power consumption: at 8W maximum, this camera demands PoE++ infrastructure—a standard 802.3at PoE+ switch won't deliver enough headroom if you're stacking multiple high-power cameras on the same uplink. Plan ahead; run the power budget before installation. The edge analytics (Deep Learning object classification, line crossing, loitering) are the real productivity multiplier. We've seen teams reduce false-positive alert noise by 60-70% compared to legacy motion detection, which cuts operator fatigue and storage overhead. One caution: the 30x zoom is powerful but not infinite—facial recognition works cleanly at 7-14m (IDENTIFY range), and vehicle plate reads require 5-14m distance depending on zoom position. For long-range perimeter detection (beyond 150m), you still need a fixed telephoto camera at the far boundary. The ANV-L7082R is a tactical tool for active tracking and mid-range evidence capture, not a replacement for fixed forensic cams at choke points. We'd spec this into campuses, large parking facilities, and building complexes where zone coverage and operator control matter more than single-point fixed focal-length forensics.

Technical Highlights:

• 30x Optical Zoom (1.08mm Varifocal): Eliminates the capex and cabling complexity of three fixed cameras per zone. Motor-driven zoom pulls detail from 70m (detect range, tele) down to 2.7m (identify range, wide)—sufficient for facial recognition and plate reads across typical outdoor perimeters. Unlike digital zoom, optical zoom preserves image quality and doesn't confuse edge analytics.
• 120dB WDR + 940nm Invisible IR: Handles extreme backlight (sun-facing entry next to shadowed alcove) without blooming or lockup. 940nm invisible emitters eliminate red glow that alerts intruders or triggers false motion on reflected IR. 30m IR range covers large parking lots; beyond that, supplement with external lighting or accept reduced sensitivity in twilight zones.
• Deep Learning Edge Analytics (DLPU): Object classification, line crossing, loitering, and tampering detection run locally on the camera. No external GPU, cloud inference, or edge appliance required—alarms fire instantly, reducing latency for operator response. Integrators consistently report 60-70% reduction in false-positive noise when analytics are properly tuned versus legacy motion detection.
• H.265 WiseStream II Smart Codec: Adaptive bitrate encoding per zone—static hallway low-quality, door high-quality—reduces 24/7 recording footprint 30-40% while keeping forensic footage sharp on critical areas. Multi-stream RTSP support (up to 6 concurrent users) and fallback to H.264/MJPEG ensure compatibility with legacy VMS platforms that don't support H.265.
• PoE++ Powered (8W Max, Typical 6W): Runs on 802.3bt infrastructure with headroom for edge buffering and transcoding. Micro SD local storage (up to 128GB) bridges network outages and archives event clips without burdening the NVR. Firmware-encrypted SD partition protects footage at rest.
• ONVIF Profile S/T/G + Native Hanwha Integration: Works day one with Genetec, Milestone, Avigilon, and Hanwha VMS platforms. Profile T includes H.265 streaming and rich metadata (object bounding boxes, classification labels) over the wire for advanced search and forensics.

Deployment Considerations:

• PoE++ infrastructure is mandatory—standard 802.3at PoE+ switches cannot deliver the 8W headroom required. Budget for 802.3bt switches or dedicated midspan injectors if you're retrofitting an older PoE+ network. Run the power budget before installation to avoid mid-project surprises.
• 30x optical zoom is powerful for active tracking but not infinite. Facial recognition (IDENTIFY) works cleanly at 7-14m; plate reads require 5-14m distance depending on zoom position. For perimeter detection beyond 150m, pair this PTZ with fixed telephoto cameras at the far boundary—don't rely on the PTZ zoom alone for distant evidence capture.
• 940nm invisible IR is superior to 850nm for covert operation, but 30m range assumes clean line of sight. Rain, fog, and dust reduce effective range 15-20%. In harsh salt-spray or dusty environments, plan for quarterly lens cleaning or protective windows that reduce IR transmission slightly.
• Edge analytics (DLPU) require tuning: sensitivity thresholds, detection zones, and object classification filters must be configured per site. Generic out-of-box settings may trigger false positives in dynamic wind-blown scenes (rain, leaves, shadows). Allocate 2-4 hours initial configuration per camera location for clean alert behavior.
• Micro SD local storage is fast-fill: 4MP @ 30fps H.265 bitrate is ~1-2 Mbps depending on scene complexity. A 128GB card provides 8-16 days continuous 24/7 recording—suitable for event buffering and short-term archive, not long-term cold storage. Pair with NVR recording for permanent retention and legal holds.
• Pan/tilt presets (up to 32 positions) fire automatically on alarm triggers—loitering in zone, line crossing, object classification match—enabling unmanned operation or operator assist in high-volume facilities. Test preset chaining and dwell times in lab before deployment to avoid operator confusion in the field.

The ANV-L7082R is the right choice for integrators designing large outdoor zones (parking lots, campus grounds, building facades) where one operator or automated preset system must cover 100+ meters without installing multiple fixed cameras. It's not a long-range forensic telephoto replacement, and it demands PoE++ infrastructure—but on the right site, it cuts capex and maintenance cost measurably. See our Hanwha catalog for complementary outdoor dome and turret models.
