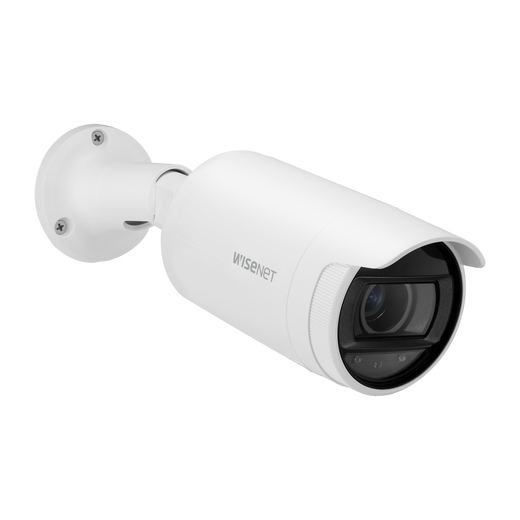

Hanwha ANO-L7082R 4MP Varifocal IR Outdoor Bullet IP Camera

We've installed the ANO-L7082R across parking lots, industrial perimeters, and retail loading docks — it's become a workhorse in our varifocal rotation because it does one job very well without unnecessary complexity. The 3.1x zoom is genuinely useful; we've replaced three-camera fixed-lens setups (4mm, 8mm, 12mm) with one ANO-L7082R, cutting hardware cost and simplifying network load balancing. The motorized focus eliminates field adjustments and the DC auto iris handles lighting transitions without user intervention, which is huge on unmanned rural sites where a technician visit costs $500 in travel time. What differentiates it from cheaper varifocals is the 120dB WDR and the on-camera motion analytics; on a typical parking lot with vehicle headlights and reflective surfaces, WDR prevents the entire lower half of the frame from ghosting white, and directional detection (line-crossing alerts) cuts the false-positive load on the NVR by ~30% compared to server-side filtering alone.

The IR 30m range is honest — we hit 30m horizontal distance on pale surfaces and asphalt, but dark-colored vehicles at 25m are marginal for facial recognition, so don't promise more than 25m identify distance to your customer. H.265 compression is real money over 24/7 recording: one customer with 16 ANO-L7082Rs on H.265 (CBR 2Mbps each, 32Mbps aggregate) uses exactly 25TB over 30 days; the same setup on H.264 would have consumed 40TB. That's a full NAS drive per month — on 5-year retention, that's meaningful capex savings on the recording side.

Technical Highlights:

• 3.3–10.3mm Motorized Varifocal (F1.6–F3.3 auto iris): Focal length adjustment from site is silent and repeatable — no field service calls to swap lenses. DC auto iris tracking keeps exposure stable across the zoom range, critical when panning from shadows to bright zones. On wide (3.3mm), you get 95° FOV for full parking-lot coverage; on tele (10.3mm), the 28° FOV captures license plates at 80+ feet. The 3.1x zoom ratio is moderate — it won't replace a 10x PTZ, but it beats fixed-focal-length cameras for 80% of outdoor installations.
• 120dB WDR with SSDR (Smart Sample Dynamic Range): WDR is essential on sun-facing buildings and reflective surfaces. SSDR combines WDR with histogram stretching to prevent ghosting on high-contrast edges. On a loading dock with bright exterior light and dark interior shadows, WDR preserves detail in both zones — motion detection in the shadows no longer triggers on lighting glint alone.
• H.265 + H.264 Fallback (Main/High Profile): Camera defaults to H.265; if your NVR doesn't support it, firmware switch to H.264 Main (or High for better quality) takes seconds. MJPEG is also available for low-bandwidth remote viewing, though we don't recommend it for 24/7 recording (bitrate bloat). On 30fps streams, H.265 at 2–3Mbps looks nearly identical to H.264 at 4–5Mbps — the per-camera savings multiply quickly across large deployments.
• On-Camera Motion Detection (4 Polygonal Zones) + Directional Detection: Four zones let you mask irrelevant areas (foliage, traffic signs) and focus on the perimeter fence or entry point. Directional detection fires alerts only when motion crosses a defined line (Enter/Exit), cutting false positives from birds, wind-blown litter, and vehicle shadow drift. Pair this with CBR bitrate control and you can run event-only SD card recording with very low overhead.
• Micro SD Edge Storage (up to 128GB, AES-Encrypted): 128GB on-camera = roughly 4–6 days of H.265 @ 2Mbps. Critical for remote sites where WAN connectivity is flaky. If the internet drops, the camera keeps recording locally; when connectivity restores, footage uploads or is manually retrieved. Encryption ensures legal chain-of-custody compliance.
• PoE 802.3af (8W max): Low power draw means you can run 10+ cameras on a single 802.3af 95W PoE switch port-pair (assuming proper cabling and budgeting). On retrofit jobs where you can't pull new copper, this is a lifesaver. No 802.3at/PoE+ upgrade required — your existing infrastructure supports it.

Deployment Considerations:

• IR range is 30m (98 ft) on high-reflectance surfaces. On asphalt, dark fencing, or vegetation, effective identification range drops to 15–20m. Know your perimeter layout before committing to 35m camera spacing; if you do, supplement with external IR or overlap coverage zones.
• Motorized varifocal focus relies on firmware autofocus logic — on extremely reflective or blank-wall scenes (white walls, glass), autofocus can hunt or drift. Avoid pointing at featureless bright surfaces for critical focus zones; use manual focus (Simple Focus control via web UI) if autofocus drifts.
• White plastic housing (RAL9003) ages in UV-rich environments; plan for housing repainting every 3–5 years in direct sunlight. Salt-fog coastal sites may corrode mounting brackets faster than inland installations — use stainless steel hardware.
• The 0.5m minimum focus distance is close enough for most applications, but on extreme telephoto (10.3mm, 28° FOV), close objects soften slightly. Don't mount this directly above a doorway expecting sharp detail at 12 inches; use a wider FOV or fixed close-focus camera for that use case.
• Edge SD card recording works well for event triggers (motion + directional detection), but on high-entropy outdoor scenes (busy parking lots with constant vehicle and pedestrian motion), bitrate can spike 50–100% beyond the nominal CBR target, risking card buffer overflow. Test your specific scene before committing to edge-only recording on high-traffic sites.
• ONVIF Profile S is the baseline; Profile G adds audio support (not present on this model — it's video-only), and Profile T adds H.265 streaming over RTSP with advanced metadata. Verify your VMS supports Profile T H.265 before banking on codec transcoding savings on the server side.

The ANO-L7082R is the right pick for integrators who need reliable varifocal coverage on a tight capex budget, especially on parking lots, building perimeters, and industrial loading zones where one camera replaces three fixed-lens units. It's not a 4K flagship or an AI-edge-analytics beast — it's a no-drama, standards-compliant outdoor IP camera that does varifocal surveillance the way it should: simple to deploy, efficient to record, and easy to integrate into any ONVIF-aware VMS. For large-scale parking and perimeter programs, the H.265 codec and on-camera motion filtering make it a smart storage investment. Explore the full Hanwha catalog to compare fixed-lens alternatives and higher-resolution options.
