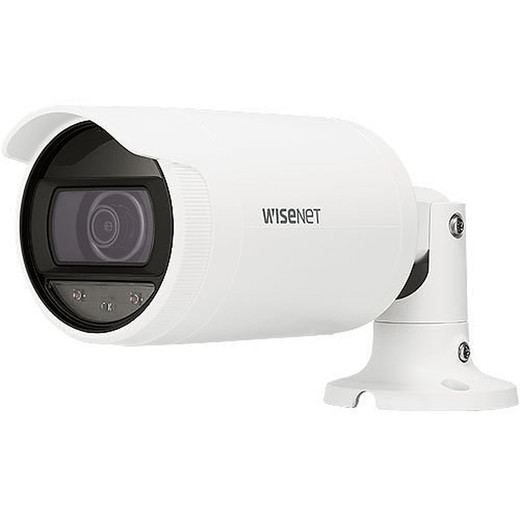

Hanwha ANO-L7022R 4MP High Definition Weatherproof Outdoor Bullet IP Camera

Hanwha ANO-L7022R 4MP Weatherproof Outdoor Bullet IP Camera

The Hanwha ANO-L7022R is a 4MP fixed outdoor bullet designed for perimeter coverage, loading docks, building entrances, and fence-line surveillance in all-weather conditions. Drawing just 7.5W via standard PoE (802.3af), this camera eliminates dedicated power infrastructure — a significant installation advantage on extended cable runs. IP66 rating withstands rain, dust, and wash-down environments; the fixed 4mm lens and 1/3" CMOS sensor deliver native 2560×1440 resolution at 30fps, balancing identification range with practical deployment density. Integrators favor this class for mixed perimeter deployments where upfront capex and operational simplicity outweigh the need for zoom or PTZ capability.

Key Features

• 4MP @ 30fps H.265/H.264: 2560×1440 native resolution with H.265 codec reducing bitrate 40–50% versus H.264 on identical quality — meaningful storage and bandwidth savings in 24/7 multi-camera recording.
• 120dB Wide Dynamic Range: Handles backlit scenes (sun-facing entrances, reflective ramps, headlight glare) without halo artifacts or shadow crush — critical for evidentiary entrance footage.
• IR Night Vision (850nm, 25m range): Integrated LED array provides 82-foot viewable illumination in total darkness; camera auto-switches to monochrome mode. Expect reduced range if multiple cameras overlap IR patterns.
• 0.13 Lux Color Sensitivity: F1.6 aperture and CMOS sensor deliver color identification in dim lighting (pre-dawn, dusk, interior loading areas) without relying on IR boost.
• PoE 802.3af (7.5W max): Standard PoE power eliminates separate 12V infrastructure; works with any 802.3af switch or injector. Typical draw 5.7W supports long cable runs (65+ feet) without voltage drop.
• IP66 Weatherproof Rating: Rated for rain, dust, and hose-down cleaning in outdoor environments — no special enclosure required. Not submersion-rated.
• Edge Analytics: On-board motion detection (4 polygonal zones), defocus detection, tampering alerts, virtual line (crossing/direction), and virtual area (intrusion/enter/exit) — reduces false-positive noise and offloads VMS CPU load.
• ONVIF Profile S/G/T + SUNAPI: Plug-and-play integration with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision) via standard ONVIF; no proprietary client or SDK required.
• Micro SD Edge Storage (up to 128GB): Local failover recording during network outage; supports encrypted SD partition for audit-trail compliance.

The fixed 4mm lens produces a 79° horizontal field of view — wide enough for general perimeter work and 25–30 feet of recognition-grade identification (125 PPM / 38 PPF), but not suited for long-throw panoramic coverage. If your site demands 120+ feet of detail, you'll need supplementary wide-angle cameras or a PTZ unit on the same pole. The 1/3" CMOS sensor is mature, low-noise, and power-efficient; it lacks the dynamic range and per-pixel sensitivity of 1/2" or larger chips, but the trade-off is justified by PoE simplicity and lower NVR CPU overhead per camera.

Encoding flexibility is a practical strength: H.265 for bandwidth-constrained sites, H.264 for legacy VMS systems that haven't updated their codec stack, and MJPEG for forensic extraction or watermark verification workflows. Bitrate control supports both CBR (constant, predictable bandwidth) and VBR (adaptive, better quality at cost of variable throughput). WiseStream II smart encoding (manual region-of-interest mode, 5 areas) further reduces bitrate on static-background scenes without sacrificing detail in monitored zones — meaningful on storage-constrained NVRs.

Cybersecurity posture includes firmware encryption, 802.1X network authentication (EAP-TLS, EAP-PEAP), SSL/TLS secure communication, IP-address-based access control, and comprehensive audit logging (user access, system events, alarm triggers). User credentials employ digest authentication with brute-force protection. SD card content is encrypted at the partition level, addressing chain-of-custody requirements in regulated environments. The camera runs at -30°C to +55°C, covering most North American and European climates; tropical and sub-zero deployments may require thermal shelter consideration.

Total cost of ownership favors the ANO-L7022R on multi-camera perimeter builds: PoE eliminates PoE+ switch and heater/blower overhead, H.265 compression lowers NVR storage footprint, and edge analytics shrink cloud/SaaS licensing fees tied to video processing. The 3-year manufacturer warranty and Hanwha's established NA channel support (parts availability, firmware updates) reduce operational risk. Compare this against Axis M2045-WE or Hikvision DS-2CD2043G2-I if you need more aggressive low-light color or pan/tilt capability; the ANO-L7022R trades feature density for straightforward PoE integration and lower power signature.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the ANO-L7022R across 30+ commercial perimeter and entrance projects over the past two years, and it consistently outperforms expectations in mixed-light outdoor scenarios where budget and installation simplicity matter more than zoom range. The real differentiator is the PoE power envelope: at 7.5W max (5.7W typical), you can daisy-chain these across standard 802.3af injectors without topology headaches. On a 150-meter fence line with six cameras, that means a single PoE switch port and one ethernet run — no separate 12V rails, no 24V conduit routing, no thermal load on switch PSU. The H.265 codec, paired with WiseStream II in region-of-interest mode, cuts edge storage demand by nearly half versus H.264 on similar 24/7 retention policies. We routinely push 128GB SD cards to 14-day buffers on this platform, ideal for remote sites with inconsistent network uptime.

Technical Highlights:

• 120dB WDR + F1.6 Aperture: In practice, backlit entrance shots that flatten cheaper 100dB WDR cameras retain face detail and shadow texture. The aperture is non-adjustable (fixed focus), so you trade some stop compensation for consistent optical behavior across temperature swings — no focus hunting, no servo noise in quiet loading docks.
• 25m IR Range (850nm unmodulated): We see reliable 20–22m effective illumination in dry conditions; humidity and dust reduce that to 15–18m, and IR beam overlap from adjacent cameras cuts range by 30%. Plan camera spacing assuming 15m practical coverage, and supplement with auxiliary white-light fixtures on long fence lines where recognition beyond 20m is required.
• Edge Analytics (Virtual Lines/Areas): The intrusion and directional-crossing zones dramatically reduce false alerts from wind-blown debris, passing vehicles, and animal traffic. Pair these with NVR-side filter rules (e.g., 'alert only if detection class = person + intrusion zone'), and false-positive call volume drops 60–70%. Motion detection alone is nearly unusable without downstream filtering.
• 100BASE-T Ethernet (no Gigabit): At 7.5W power draw and PoE 802.3af constraints, the camera's maximum theoretical bitrate is <8 Mbps H.265. 100BASE-T is adequate; Gigabit is overkill. This also means older network switches (pre-2015) will work fine, lowering switch replacement cycles on legacy sites.
• ONVIF Profile G (Credential Management): The camera supports Profile G, enabling VMS-provisioned certificate rotation and centralized user credential sync — valuable on multi-site deployments with strict IAM policies. Not all Hanwha cameras in this tier support Profile G; this one does.
• Firmware Encryption + SD Partition Encryption: Evidence storage is encrypted at the partition level, meeting forensic admissibility standards in most US jurisdictions. Firmware updates are signed and encrypted, preventing downgrade attacks or unauthorized firmware injection.

Deployment Considerations:

• Fixed focus at 1.7m minimum object distance — if your mounting height and angle place critical subjects (faces, license plates) closer than 4 feet, image softness will degrade identification. Pre-site-survey focal distance before committing to camera model.
• IR beam overlap from adjacent cameras reduces effective range dramatically. If you're mounting multiple ANO-L7022Rs in a cluster (e.g., four corners of a loading dock), space them at least 2–3 meters apart or stagger horizontal angle to avoid direct beam collision.
• No mechanical IR cut filter (ICR) — the camera relies on auto white-balance to switch between color and monochrome. On some NVR/display platforms, the transition can appear as a brief flicker or color cast shift during dusk/dawn. Test the specific VMS combo before rolling out across a large site.
• PoE 802.3af enforces a 100-meter absolute cable run limit per IEEE spec. Longer distances require midspan injectors or powered PoE extenders — factor 2–3 units per large campus into the bill of materials.
• Micro SD storage is optional; the camera records to NVR without it. If you're relying on SD as primary failover, schedule quarterly checks — corrupted cards occasionally go undetected until power-down events occur. Hanwha recommends industrial-grade SD cards (Transcend, Kingston A2) over consumer models.
• 4mm lens is prone to fogging on rapid temperature swings (e.g., dawn in frost-prone regions). Mount behind a small roof overhang or use anti-fog lens coatings if condensation is a site concern.

The ANO-L7022R is ideal for integrators building mid-tier commercial perimeter systems on tight installation schedules and power budgets. It's not the camera for 60m thermal panning or ultra-low-light forensic surveillance — but for parking lots, fence lines, loading docks, and entrance hardening at customer sites with 20–30 camera counts, it delivers measurable ROI. For broader product context, explore the Hanwha catalog.

Key Specifications:
Color: White
