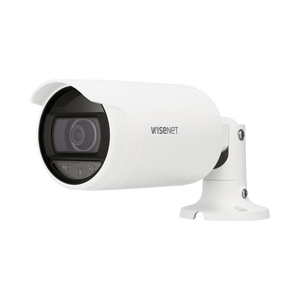

Hanwha ANO-L6012R 2MP Outdoor Bullet IP Camera with IR Night Vision

Hanwha ANO-L6012R 2MP Outdoor Bullet IP Camera with IR Night Vision

Overview

The Hanwha ANO-L6012R is a fixed-lens 2MP bullet camera built for outdoor perimeter and wide-area coverage. This is a straightforward surveillance workhorse: 113.7° horizontal field of view, PoE-powered, H.265 compression, and 100-foot IR range. It's designed to handle rain, dust, and temperature swings without fuss. No analytics bells, no auto-focus complications—just reliable 24/7 imaging at modest bandwidth cost. Suitable for warehouse perimeters, parking lot entries, building facades, and any outdoor run where you need wide coverage and low power draw.

Key Features

• 2MP sensor with 2.8mm fixed lens: Delivers 1080p resolution (1920×1080) at up to 30 fps. The 113.7° horizontal field of view means one camera covers a wide entrance or corridor—useful for reducing camera count on smaller budgets. Trade-off: fixed focal length means you cannot zoom in on distant detail; if facial recognition or plate reading is required, plan for a multi-camera grid or move to a varifocal unit.
• IP66 environmental rating: Direct rain, hose spray, and dust ingress won't degrade the unit. You can install it on an exterior wall without conduit protection. Does not handle full submersion (IP67+) or salt-fog corrosive environments—if coastal or pool-adjacent, specify stainless hardware upgrades.
• 100-foot IR illumination range: Built-in 850nm IR LEDs activate in darkness or low light. At 100 feet (roughly 30 meters), you get usable monochrome detail sufficient for motion detection and basic identification—but not facial detail at that range. Plan on closer camera placement if facial recognition is a future requirement.
• H.265 (HEVC) video compression: Cuts bitrate roughly 40–50% compared to H.264 at equivalent quality. On a 24/7 outdoor camera recording to an NVR, this translates to meaningful storage savings across dozens of units. Example: H.264 at 2MP/30fps ≈ 1.5 Mbps; H.265 ≈ 0.8 Mbps. Storage cost matters at scale.
• Wide Dynamic Range (WDR) at 120dB: Handles glare from reflective surfaces (wet pavement, car windows, metal siding) and backlighting without washing out shadows. In scenes with hard sun and dark corners—common outdoors—WDR prevents the classic "bright window, dark face" problem. Not forensic-grade WDR; acceptable for general surveillance.
• PoE power via 802.3af: Draws under 13W, so it runs on standard 15.4W PoE injectors or switch ports. No separate 12VDC supply or outdoor power distribution required. Single Ethernet cable handles power and video—simplifies installation and reduces field wiring labor.
• Event-based analytics: Motion detection, enter/exit triggers, tampering alarm, and virtual area masking are supported. These are on-camera events sent to the NVR; not deep learning or object classification, but adequate for threshold-based alerting on perimeter zones.
• Digital noise reduction (SSNR): Reduces grainy appearance in low light and at night without introducing motion blur. Helps maintain image clarity when IR is active and ambient light is minimal.

Integration & Compatibility

The ANO-L6012R operates as a standard ONVIF IP camera and integrates with any mainstream NVR or VMS that supports H.265 (or falls back to H.264 in compatibility mode). It is compatible with Hanwha-branded recorders and accessory mounts, but is not locked to a proprietary ecosystem. IP cameras in this class typically connect to network video recorders via standard PoE infrastructure; plan for adequate PoE switch capacity if deploying multiple units. WiseStream II technology (Hanwha's bitrate optimization) requires compatible NVR firmware to unlock bandwidth savings; older recorders will record H.265 streams but won't apply dynamic rate control.

When to Choose a Different Model

If you need facial recognition or vehicle plate capture, move to a higher-resolution (5MP or 4MP) variant in the same Hanwha surveillance line. If IR range beyond 100 feet is critical (large parking lots, long building facades), consider a model with external IR array or twin-lens design. If the scene requires auto-focus (changing distance, zoom coverage), step up to a varifocal. If you need audio, confirm that your deployment permits two-way mic and speaker (privacy regulations vary by jurisdiction).

Deployment Considerations

Mount the ANO-L6012R on a vertical surface (building corner, post, soffit) where the 113.7° horizontal coverage overlaps adjacent cameras or fills the intended zone. Check sightline for IR scatter (shiny surfaces bounce IR back into the lens, causing washout; angle slightly downward if facing reflective ground). Test PoE voltage drop if the run exceeds 100 meters; budget for PoE extenders or midspan injectors on long cable runs. Verify that your PoE planning accounts for peak wattage across all cameras; this unit alone is modest, but a dozen of them requires a managed switch with adequate power budget.

Frequently Asked Questions

Q: Does the ANO-L6012R support ONVIF?

A: Yes. The camera operates as a standard ONVIF IP device and integrates with any NVR or VMS that supports ONVIF Profile S or higher.

Q: What is the field of view on the ANO-L6012R?

A: Horizontal: 113.7°, Vertical: 61.5°, Diagonal: 134.4°. The wide horizontal angle suits entrance monitoring and parking lot perimeter coverage.

Q: Can I use the ANO-L6012R indoors and outdoors?

A: Yes. IP66 rating means it tolerates outdoor weather, but it will also operate reliably indoors in warehouses, corridors, and covered entries.

Q: How far does the IR reach on the ANO-L6012R?

A: Up to 100 feet (approximately 30 meters) in complete darkness. Useful for motion detection and basic identification; plan for closer spacing if facial detail is required.

Q: What compression formats does the ANO-L6012R support?

A: Primary support is H.265 (HEVC) for efficient storage. H.264 and MJPEG are typically available for backward compatibility with older NVRs.

Q: How much power does the ANO-L6012R draw?

A: Approximately 13W maximum via 802.3af PoE. No separate power supply needed; a single Ethernet cable provides both power and video.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the ANO-L6012R (often searched as ANO L6012R) on outdoor perimeters and warehouse entries where wide coverage and modest power budget are constraints. The 113.7° horizontal field of view is genuinely useful—one camera covers a two-lane entrance without sacrificing too much detail. H.265 codec is a real win for storage: at 2MP/30fps, you're looking at roughly 0.8 Mbps versus 1.5 Mbps for H.264, which adds up fast across a multi-camera system.

Technical Highlights:

• H.265 compression at 2MP/30fps: Delivers ~0.8 Mbps bitrate, slashing storage and bandwidth cost roughly 45% versus H.264. On a 30-day rolling buffer across a dozen cameras, that's a meaningful storage gain.
• 100-foot IR with 1/2.8" CMOS sensor: Adequate for perimeter motion detection and basic identity confirmation, but monochrome only and not suitable for license plate capture at that distance. Plan on 50-foot average effective range for actionable detail.
• 120dB WDR: Handles typical outdoor backlighting (sun behind subject, reflections from pavement). Not forensic-grade, but solid for general surveillance—eliminates the worst silhouettes and blown highlights.

Deployment Considerations:

• Fixed 2.8mm lens is permanent—no zoom flexibility. If you need to pivot coverage later, you'll rewire the camera or add a second unit. Plan coverage zones deliberately in advance.
• PoE current draw is modest (~13W), but verify your PoE switch has sufficient budget if you're deploying a cluster of these. A 48-port PoE+ switch can handle roughly 24–30 units at full power depending on model.
• IR scatter on shiny surfaces is real. Mount the camera so that the IR beam doesn't bounce directly back off wet pavement or polished metal railings; angle slightly downward or offset mounting to avoid washout.

Best fit: outdoor perimeter and entrance coverage where facial detail beyond 30 meters is not a requirement, and where one wide camera per zone is acceptable. If you need to zoom or capture plate numbers at distance, graduate to a 5MP+ varifocal unit in the same product family.
