Type:

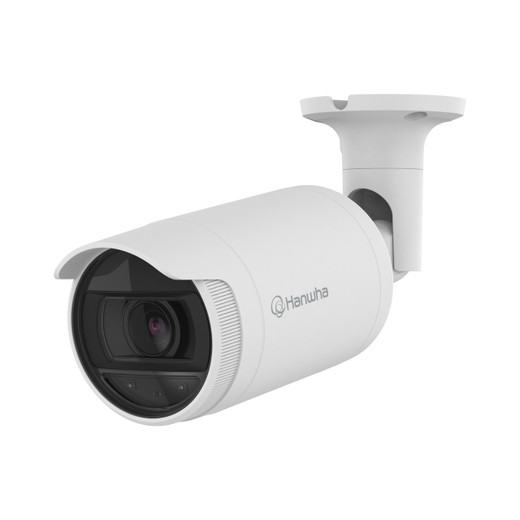

Vision Outdoor Bullet IP Camera
Frame Rate:
30fps
Imaging Device:
1/2.8" CMOS
Resolution:
2 MP (1920×1080)
Max. Framerate:
30fps @ 2MP
Min. Illumination:
0.03 Lux color / 0 Lux IR
Focal Length (Zoom Ratio:
3.3~10.3mm(3.1x) motorized varifocal
Max. Aperture Ratio:
F1.6(Wide) ~ F3.3(Tele)
Angular Field of View:
H: 106°, V: 55°
Min. Object Distance:
0.5m(1.64ft)
Focus Control:
Simple focus
Lens Type:
DC auto iris
Pan / Tilt / Rotate Range:
0°~360° / 0°~100° / 0°~360°
Camera Title:
Displayed up to 15 characters
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, WDR, SSDR
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Motion Detection:
4ea, rectangler zones
Privacy Masking:
6ea, rectangular zones
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation:
Flip, Mirror, Hallway view(90°/270°)
Analytics:
Motion detection; Tampering; Virtual area (Intrusion/Enter/Exit); Virtual line (Crossing/Direction)
Alarm Triggers:
Analytics
Alarm Events:
When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers
Light Type:
IR LED (850nm)
Light Viewable Length:
30m(98.43ft)
Ethernet:
RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264 : Main/High, MJPEG
Smart Codec:
WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(6 users) / Multicast; Multiple streaming (Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API)
OS / Firmware Protect:
Firmware encryption
User authentication:
Digest Authentication, Prevent brute-force attack
Network authentication:
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication:
HTTPS, SRTP, WSS(Websocket secure)
Access Control:
Access control based on IP address
Data Protect:
AES encryption, ZIP compression
Audit:
User Access/System/Event log management
Device ID:
Device Certificate(Hanwha Private Root CA)
Secure Storage:
SDcard partition encrypt
Webpage Language:
English, Korean, Chinese, French, Italian, +more
Edge Storage:
Micro SD/SDHC 1slot 32GB
RAM:
512MB RAM, 256MB Flash
Operating Temperature / Humidity:
-30°C~+55°C / 0~95% RH
Storage Temperature / Humidity:
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
Certification:
IP66
Input Voltage:
PoE(IEEE802.3af, Class3)
Power (Max:
Max 7.0W, Typical 5.0W
Color / Material:
White / Plastic
RAL Code:
RAL9003
Product Dimensions / Weight:
ø78.0x262.0mm(ø3.07x10.31”), 390g(0.86lb)
Backbox:
SBV-A14B
Detect (25PPM/ 8PPF:
Wide: 29.4m(96.32ft) / Tele: 140.4m(460.52ft)
Observe (63PPM/ 19PPF:
Wide: 11.7m(38.53ft) / Tele: 56.1m(184.21ft)
Recognize (125PPM/ 38PPF:
Wide: 5.9m(19.26ft) / Tele: 28.1m(92.10ft)
Identify (250PPM/ 76PPF:
Wide: 2.9m(9.63ft) / Tele: 14.0m(46.05ft)
Product Type:
Bullet
Connectivity:
Wired
Power Type:
PoE
Night Vision:
IR
Housing Color:
White
Environment Rating:
Outdoor
Warranty:
3-year warranty
Poe Power:
PoE (802.3af)
Wdr:
WDR
Ir Lowlight:
IR
Compression:
H.265; H.264; MJPEG
Onvif:
Yes
Lens Focal Length:
Varifocal
Lens:
Type DC auto iris
Camera:
Title Displayed up to 15 characters
Ethernet Rate:
RJ-45(10/100BASE-T)
Application:
Programming Interface ONVIF Profile S/G/T
Memory:
512MB RAM, 256MB Flash
Operating Temp:
/ Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
Storage:
Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
resolution:
2 MP
ip_rating:
IP66
poe_power:
PoE (802.3af)
ir_lowlight:
IR
lens_focal_length:
Varifocal
Lens:
Varifocal 3.3–10.3mm (3.1x); DC auto iris; F1.6 (wide) to F3.3 (tele)
Ethernet_Rate:
RJ-45(10/100BASE-T)
Operating_Temp:
−30°C to +55°C (−22°F to +131°F)
Storage:
Micro SD/SDHC up to 32GB
Input_Voltage:
PoE(IEEE802.3af, Class3)
Color:
/ Material White / Plastic
Wattage:
7.0W
Length:
100 feet
Compatible With:
the
PoE:
PoE
Screen Size:
10.31 in
WDR:
WDR 120dB
IR_Lowlight:
IR; 0 lux (IR on); Color 0.03 lux (F1.6, 1/30 sec)
Mount_Type:
Wall
Form_Factor:
Bullet
Max_FPS:
30 fps (H.265/H.264 @ 2MP); 10 fps (MJPEG)
IR_Range:
30m (98 ft)
Sensor_Size:
1/2.8" CMOS
Min_Illumination:
Color 0.03 lux (F1.6, 1/30 sec); B/W 0 lux (IR on)
VMS_Compatibility:
ONVIF Profile S/G/T
PoE_Wattage:
7W max
