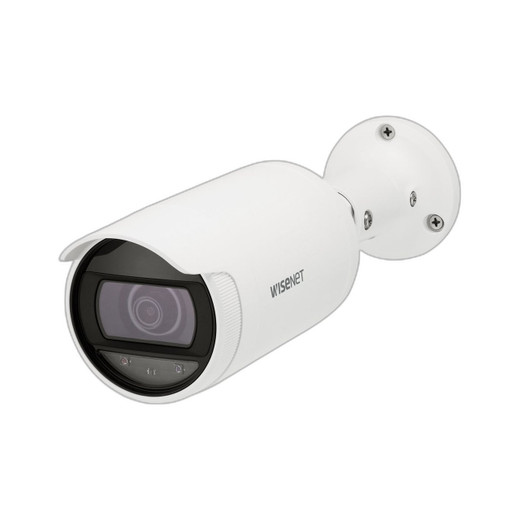

Hanwha ANO-L6022R 2MP Outdoor IR Bullet IP Camera

Hanwha ANO-L6022R 2MP Outdoor IR Bullet Camera

The Hanwha ANO-L6022R is a professional-grade 2MP outdoor IR bullet IP camera engineered for reliable 24/7 surveillance in demanding environments. Combining Full HD 1080p resolution with advanced infrared night vision, intelligent video analytics, and robust weatherproof construction, this camera delivers comprehensive security monitoring for commercial and industrial installations.

Key Features

• 2MP CMOS sensor with 1920x1080 Full HD resolution
• Infrared LEDs with 30-meter night vision range
• IP66-rated weatherproof housing for outdoor durability
• 120dB wide dynamic range (WDR) for superior image quality in challenging lighting
• Advanced video analytics including motion detection, tampering alerts, and virtual line crossing
• Power over Ethernet (PoE) for simplified installation
• H.265/H.264 video compression with WiseStream II smart codec
• Micro SD/SDHC edge storage up to 32GB
• Multiple streaming profiles with support for up to 6 concurrent users

Technical Specifications

Imaging & Optics: The 1/2.8" CMOS imaging device delivers exceptional detail with a fixed 4mm focal length and F2.0 aperture. The 84.3° horizontal field of view provides broad coverage, while automatic ICR (infrared cut filter removal) ensures seamless day/night transitions. Minimum illumination of 0.03 Lux in color mode and 0 Lux with IR enables reliable performance in extremely low-light conditions.

Video Performance: Maximum frame rates reach 30fps at H.265/H.264 (25fps at 50Hz), delivering smooth, fluid video. The camera supports multiple resolution options from 1920x1080 down to 640x360, enabling flexible bandwidth management. WiseStream II smart codec optimizes bitrate without compromising quality, while 120dB WDR handles extreme contrast between bright and dark areas simultaneously.

Intelligence & Analytics: Built-in motion detection with four rectangular zones, six privacy masking zones, and virtual area analytics (intrusion, entry/exit detection) provide intelligent threat detection. Tampering detection triggers immediate alerts via email or FTP upload, with optional SD card event recording.

Connectivity & Security: Dual IPv4/IPv6 support with ONVIF Profile S/G/T compatibility ensures seamless integration into enterprise systems. HTTPS/SSL encryption, 802.1X authentication, IP filtering, and user access logging provide multi-layer security. The camera streams to up to 6 unicast users simultaneously with multicast support.

Physical & Environmental: Compact bullet form factor (Ø78.0 x 262.0mm) weighs just 390g for easy installation. IP66 certification guarantees protection against heavy dust and water jets. Operating temperature range of -30°C to +55°C ensures reliability in extreme climates, while PoE (IEEE 802.3af Class 2) delivers power with typical consumption of just 5.0W.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ANO-L6022R represents exceptional value for organizations requiring dependable outdoor surveillance without complex integration requirements. Its 120dB WDR is particularly effective for applications combining direct sunlight with shadowed areas—parking lots, building perimeters, and dock areas where traditional cameras struggle. The fixed 4mm lens with 84.3° horizontal FOV suits medium-range coverage (8-17m for meaningful object recognition), making it ideal for building facades and entrance monitoring rather than long-distance perimeter detection.

The native H.265 codec with WiseStream II significantly reduces storage and bandwidth demands compared to H.264 alternatives, critical for deployments with edge recording to 32GB Micro SD cards. Motion detection with virtual line crossing analytics enables proactive security workflows—triggering alerts only on objects crossing defined boundaries rather than generating false positives from wind-blown debris or traffic.

Hanwha's implementation of 802.1X authentication and ONVIF standardization ensures this camera integrates smoothly into enterprise VMS platforms. The 30-meter IR range provides effective night coverage for most outdoor commercial applications, though sites requiring 50+ meter detection should consider higher-spec models with extended IR arrays.
