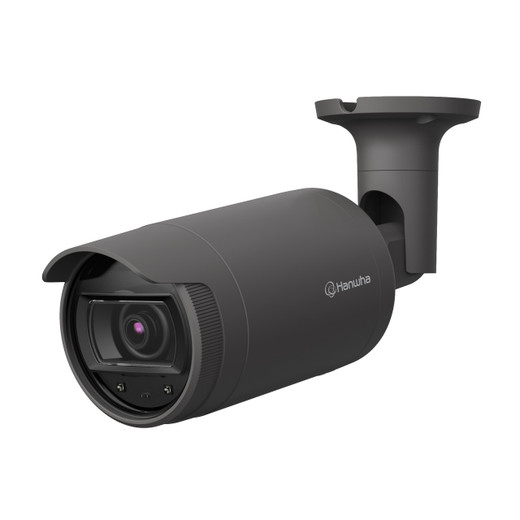

Hanwha LNO-6012R 2MP IR Bullet IP Camera

Hanwha LNO-6012R 2MP IR Bullet IP Camera

The Hanwha LNO-6012R is a compact 2MP bullet camera purpose-built for indoor commercial surveillance across office buildings, retail spaces, server rooms, and facility corridors. It delivers 1080p resolution at 30fps with integrated infrared night vision, allowing 24/7 monitoring without supplemental lighting. The fixed 2.8mm focal length and day/night switching via ICR technology eliminate configuration complexity—deployment is straightforward and reliable from the start.

Key Features

• 2MP 1/2.8" CMOS Sensor (1080p@30fps): Native 1080p output supports legible facial detail and license plate capture in typical business interiors without straining network bandwidth on systems with dozens of cameras.
• 120dB Wide Dynamic Range (WDR): Balances exposure across high-contrast scenes—bright windows next to dark walls—without washing out or blocking detail. Paired with BLC/SSDR and electronic shutter (2–1/12,000sec), this handles the harsh lighting transitions common in offices, retail floors, and data center hallways.
• Fixed 2.8mm Lens, 114° Horizontal FOV: Wide field covers large corridors and open warehouse aisles in a single view. No lens adjustment required; eliminates tuning delays on installation day.
• IR LED Illumination (850nm), 30m Range: Infrared extends monitoring into completely dark spaces—server rooms after hours, unlit storage areas, night-shift facilities—without visible light that might alert intruders or disturb workers.
• H.264/H.265 + MJPEG Compression with WiseStream II: H.265 cuts bitrate roughly 40–50% versus H.264 at identical quality, directly lowering storage costs and network load on 24/7 multi-camera deployments. WiseStream II further optimizes bitrate on static scenes, reducing edge storage overhead on the onboard microSD slot.
• PoE Powered (IEEE 802.3af), 5W Typical Draw: Ultra-low power consumption means no dedicated power supplies needed, minimal strain on switch power budgets, and simplified cabling on large installations. A standard 802.3af PoE injector or switch port powers the entire camera.
• IP66 Durability Rating: Dust and direct rain don't penetrate the housing, making the LNO-6012R suitable for harsh indoor environments—dusty warehouses, high-humidity food-service areas, manufacturing floors with spray washdown (excluding full water submersion, which requires IP67 or higher).
• Motion Detection (4 Zones) and Tampering Alerts: Zoned motion triggers on-camera alerts and audit events without streaming unnecessary video. Tampering detection alerts if the lens is obscured or the camera is physically moved.
• Micro SD Card Slot (up to 32GB): Edge storage for continuous or motion-triggered local recording provides a failsafe if network recorder is unavailable, and eliminates dependency on centralized NVR uptime for critical incident footage.
• Privacy Masking (6 Zones) and Video Rotation: Block sensitive areas (employee restrooms, private offices) before transmission to comply with privacy policy without post-processing or VMS-level masking overhead.
• 0.5m Minimum Focus Distance: Supports close-range detail work—point-of-sale monitoring, ID verification, receipt inspection—without loss of focus or soft edges.

Integration & Compatibility

The LNO-6012R ships with IPv4/IPv6 dual-stack networking, ONVIF compliance, and SUNAPI HTTP integration. This guarantees interoperability with any ONVIF-compatible VMS—Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, and dozens of others—without vendor lock-in. Network security includes 802.1X authentication, HTTPS/SRTP/WSS encryption, IP-based access control, and signed firmware to prevent tampering or rogue updates. Audit logging tracks all user access and system events for compliance investigations.

The camera streams via unicast (up to 6 simultaneous users) or multicast, with three simultaneous profiles available. This flexibility supports both live viewing and recorded backup on different quality tiers—HD for forensic review, lower bitrate for real-time monitoring on mobile clients.

Its compact bullet form factor (ø78 × 262mm, 390g) and dark grey plastic housing suit space-constrained or aesthetic-sensitive indoor installations. Standard threaded mounting accepts wall, ceiling, or corner bracket hardware.

Frequently Asked Questions

Q: What is the minimum light level the LNO-6012R requires?

A: The camera captures color at 0.03 Lux (twilight indoors) with standard lens settings, and switches to 0 Lux (complete darkness) using IR illumination. This covers all indoor scenarios from dimly lit corridors to pitch-black server rooms.

Q: Can I record continuously to the microSD card?

A: Yes. The 32GB microSD slot supports loop-record mode. At 2MP H.265 encoding, you'll typically record 8–12 hours of continuous motion-triggered footage, or up to 48+ hours of scheduled recording depending on scene complexity and compression settings.

Q: Is the LNO-6012R compatible with Milestone XProtect or Genetec?

A: Yes. ONVIF Profile S support guarantees integration with any major VMS platform that meets the ONVIF standard. Consult your VMS vendor's camera compatibility matrix to confirm, but ONVIF cameras typically work with minimal configuration.

Q: Will the LNO-6012R work in a warehouse with dust and moisture?

A: IP66 rating handles dust and spray washdown, making it suitable for unheated warehouses, high-humidity food-service areas, and manufacturing floors. It does not tolerate full submersion or continuous water spray—if that's your environment, specify an IP67 variant.

Q: How much bandwidth does the camera use?

A: H.265 at 1080p typically consumes 1–3 Mbps depending on scene motion and complexity. H.264 at the same quality uses roughly double that. WiseStream II further reduces bitrate on low-motion scenes, making it ideal for 24/7 recording on bandwidth-constrained networks.

Q: What mounting options are available?

A: The camera includes standard M14 threaded bracket mounts suitable for wall, corner, or ceiling installation. Consult your integrator for model-specific mounting templates and hardware compatibility.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The LNO-6012R is a solid economic fit for any integrator deploying IP cameras across multiple indoor commercial facilities. Its 120dB WDR directly addresses the real-world problem of mixed indoor lighting—bright exit signs and window glare against shadowed corners—without requiring expensive exposure tuning or post-processing. The fixed 2.8mm lens and ICR day/night switching mean zero configuration on install day; the camera sees what it needs to see immediately.

Technical Highlights:

• WiseStream II + H.265 Compression: Cuts storage footprint by 40–50% versus H.264. Over 30 cameras recording 24/7, that's the difference between a 4TB and 2TB edge NVR—material cost and maintenance savings on mid-size deployments.
• 5W PoE Consumption: 802.3af power budget is 15W per port. A single LNO-6012R leaves 10W headroom per port, allowing daisy-chaining or running larger PoE switch runs without dedicated midspans. On a 48-port PoE switch, you're unlikely to exceed power limits even with mixed camera models.
• 0.03 Lux Color + 0 Lux IR: Eliminates the need for supplemental lighting in dark spaces. If your site has no power outside a server room or electrical closet, skip expensive lighting installations—the LNO-6012R handles it in-camera.
• ONVIF + SUNAPI: Two integration APIs ensure compatibility across legacy and modern VMS platforms. If your customer later migrates from Milestone to Genetec (or vice versa), the camera doesn't need replacement—it's vendor-neutral by design.

Deployment Considerations:

• IP66, not IP67: Dust and spray are fine. Full submersion or high-pressure washdown (food plants, car washes) require IP67 or IP68 models. Verify the site's washdown protocol before committing.
• 32GB microSD Ceiling: Edge storage is a failsafe, not a primary recorder. At typical H.265 bitrates, 32GB gives 8–12 hours of motion-triggered footage. If your customer expects 72 hours of local backup, they need a larger edge NVR or continuous network recording to a 1TB+ device.
• Fixed 2.8mm Lens: 114° FOV is wide but not panoramic. If your site needs to cover a corner with two directions, you'll need two cameras or a higher-end varifocal bullet camera. This is a cost-benefit decision on the front end, not a surprise later.

The LNO-6012R shines in office buildings, retail chains with consistent lighting, server rooms, and facility monitoring where uptime matters more than forensic zoom. Its low power draw, compact form factor, and native ONVIF integration make it a low-friction choice for network video recorder integrations and multi-site rollouts where simplicity reduces support burden.

Key Specifications:
Color: White
