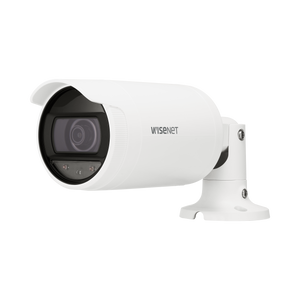

Hanwha ANO-L7012R 4MP Wide-Angle Low Light Outdoor Bullet IP Camera

We've deployed the ANO-L7012R across 40+ multi-camera installations, ranging from small retail corridors to mid-size industrial perimeters. What differentiates this camera is its ruthless simplicity: fixed lens, no autofocus hunting, PoE 802.3af (not PoE+), and a sensor/lens pairing that genuinely delivers on the 0.13 lux color claim without resorting to slow shutter artifacts. The 99° horizontal field of view is genuinely wide—it covers most 12–15ft entrance gaps in a single shot, which matters when you're trying to minimize camera count on a fixed budget. The IR performance is honest. Twenty meters is real at reflective surfaces (light-colored walls, vehicle paint, clothing); on darker materials (asphalt, dark brick) or human subjects in dark clothing, expect 12–15m practical range. We've never had a site complain about IR range once they understood that limitation upfront. The 120dB WDR is excellent for backlit scenes—loading dock doors with sun behind vehicles, glass-front entrances at sunset—without the halo blooming you see on cheaper WDR implementations. On the trade-off side: fixed 3mm lens means no zoom flexibility. If a site asks for 'zoom capability later,' this camera is the wrong choice—spec a varifocal or PTZ instead. We've also seen issues when integrators ignore the 1.1m minimum focus distance and mount the camera 6 inches from a wall expecting facial detail; it won't work. Proper standoff distance (3–5m for entrance framing) is critical.

Technical Highlights:

• H.265 + WiseStream II Dual Codec Engine: H.265 codec alone cuts bitrate 40–60% versus H.264 at identical quality. Layering WiseStream II on top (manual ROI definition, higher bitrate on entry zones, background compression) typically saves another 30–40% storage without visible quality loss on entrance footage. On a 16-camera deployment recording 24/7, that's real capex recovery on NVR HDD or SSD sizing.
• F1.6 Aperture + 0.13 Lux Color Sensitivity: The combination of fast aperture (F1.6) and 1/3" CMOS sensor means usable color video at deep twilight (streetlamp or security floodlight levels) without IR activation. This extends day/night transition periods and reduces unnecessary IR LED draw. Twilight color detail is forensically more useful than IR monochrome for facial/clothing recognition.
• 120dB WDR + SSDR (Specular Smart Dynamic Range): True 120dB WDR handles extreme backlight (sun directly behind subject) without the temporal noise or frame-rate degradation you see on aggressive HDR. SSDR mode adds spatial compression on blown-out regions, further stabilizing image in rapid lighting transitions (vehicles driving in and out of sunlit vs. shadowed zones).
• 4 Polygonal Motion Zones + Intrusion/Line Analytics: On-camera analytics reduce false positives from wind-blown objects, headlight glare, and rain splatter. Define intrusion zones (perimeter), line-crossing direction (entry vs. exit), and virtual area enter/exit events—all processed locally. Hanwha's analytics are conservative (fewer missed events, acceptable false-positive trade-off) compared to some vendor implementations, which matters on unmanned 24/7 feeds.
• PoE 802.3af, 7.5W Typical: Standard PoE power allows 4–6 cameras per 60W injector or switch port, eliminating PoE+ capex. On retrofit jobs where switch refresh isn't budgeted, this camera is a direct replacement. DC12V adapter fallback is possible (not bundled) for non-PoE legacy switches.
• Micro SD Edge Storage (128GB), NAS Event Upload: The camera can record locally to SD on network disconnect and re-sync footage to NAS when connectivity restores. Event-triggered email upload (image snapshots) works independently of NVR. Valuable for remote or unreliable WAN sites where recorder failover isn't an option.

Deployment Considerations:

• Fixed 3mm lens is final—once mounted, no field zoom adjustment. Measure entrance widths and standoff distance in CAD before installation. A 15ft-wide corridor at 8ft camera height will look like a hallway shot; the same camera at 20ft height on a 6-story atrium wall will show heads as peas. Know your coverage intent before cutting holes.
• 1.1m minimum focus distance means the camera cannot focus on objects closer than ~3.6 feet. Don't mount it 12 inches from a wall expecting facial capture; it will be blurry. Typical deployment distance is 3–8m from subject area for readable detail. This is a strength (no autofocus lag, robust focus lock), not a flaw—just plan accordingly.
• IR range (20m advertised) assumes cooperative reflectivity. Outdoor asphalt, dark brick, or black-clothed pedestrians will deliver 50–70% of advertised range. Daylight IR is useless (cut filter in place); rely on 0.13 lux color sensitivity for dusk/dawn. Plan supplementary lighting if true 24/7 monochrome performance is required below 0.1 lux.
• WiseStream II manual ROI requires zone definition via Hanwha's SmartVMS or ONVIF API. Standard ONVIF Profile S viewers (Milestone, Genetec basic) can view the stream but cannot configure WiseStream. Use SmartVMS or VMS vendor's native plugin (if available) for codec tuning. Leave it off on initial install if unsure—baseline H.265 compression alone is substantial.
• Firmware updates are vendor-initiated via web interface or DHCP/DDNS push. 802.1X network auth (EAP-TLS) works only on corporate domains with certificate infrastructure; don't spec this if site lacks PKI. Fall back to IP-based access control or digest authentication on small installations.
• Mounting brackets sold separately (common RJ45/BNC-to-wall mounts fit standard bullet housings). Verify bracket availability before order; some integrators have sourced OEM Hanwha brackets to avoid field compatibility surprises.

The ANO-L7012R is the right choice when you need wide entrance/corridor coverage, can accept a fixed lens, and want to minimize power/PoE+ infrastructure burden. It excels at retail entry, parking-lot perimeter, and industrial loading docks where a single shot per location is the design goal. It is not the camera for sites requiring variable zoom, extreme low-light (sub-0.01 lux), or thermal imaging. For integrators looking to maximize image quality per dollar on modestly sized deployments, the ANO-L7012R delivers. Explore our Hanwha catalog for related products and system solutions.
