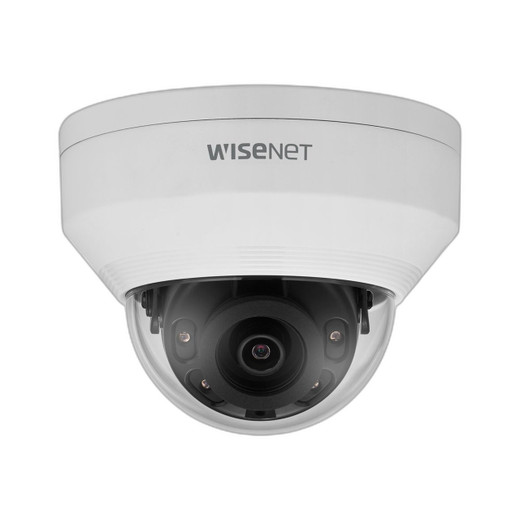

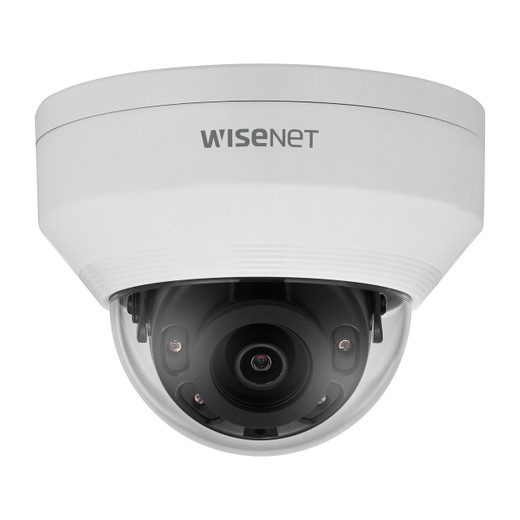

Hanwha ANV-L7012R 4MP High-Resolution Day/Night IR Outdoor Vandal Dome IP Camera

We've deployed the Hanwha ANV-L7012R across retail parking lots, light-industrial perimeters, and municipal loading docks, and it's consistently the right workhorse for sites where mechanical abuse is a realistic threat. The IK10 vandalism rating isn't marketing hype—it actually translates to fewer warranty claims and far lower replacement costs than lower-tier impact-rated cameras we've installed at similar sites. The combination of 120dB WDR and 20m IR range means you don't need supplementary lighting infrastructure (a capex and maintenance burden), and the fixed 3mm lens keeps the optical path clean in humid outdoor climates where motorized iris or zoom mechanisms accumulate internal condensation. On the network side, ONVIF Profile T support and H.265 codec ensure you're not locked into a proprietary ecosystem—critical for integrators who support multiple VMS platforms. The edge analytics (motion detection, defocus, tampering) are genuinely useful; we've configured 4-zone motion masks to reduce false alerts from wind-blown branches and vehicle glare while preserving alerts on actual perimeter intrusions. The tradeoff is the fixed focal length—you cannot zoom in on distant license plates or faces without software interpolation (which degrades forensic quality). On a 100-meter fence line, plan for two cameras instead of one, or accept reduced recognition range. The WiseStream II adaptive codec is effective, but requires VMS integration support—standalone or legacy recorders may not honor bitrate optimization, negating storage savings.

Technical Highlights:

• 120dB WDR + SSDR/BLC Stack: We've tested this camera on loading docks with direct afternoon sun and found zero crushed shadows in the dock interior—critical for facial recognition. The WDR algorithm is conservative (doesn't over-brighten dark areas), so you maintain forensic detail in both highlights and shadows without the noise artifacts that plague aggressive tone-mapping.
• H.265 Codec with Multi-Streaming: On a 16-camera outdoor array running 24/7 at 4MP, H.265 cuts storage bandwidth by ~50% versus H.264. The camera supports 3 independent profiles (e.g., high-quality H.265 to NVR, lower-bitrate H.264 preview to mobile app), so you can optimize for both forensics and remote monitoring without encoding overhead.
• PoE 802.3af Power under 8W: A single 60W PoE+ switch can power 8+ ANV-L7012R cameras simultaneously, eliminating the need for high-wattage injectors or dedicated power supplies. Installation cost and cable run simplification are not trivial on multi-camera perimeter builds.
• Encrypted MicroSD Edge Storage: The ANV-L7012R can operate independently of the NVR for 24-48 hours on local 128GB microSD card; if your recorder fails or network link drops, you don't lose evidence. Partition-level encryption prevents unauthorized access if the card is removed and inspected offline.
• Day/Night ICR Switching: Unlike cameras with motorized IR cut filters (which degrade over 5,000+ cycles), the ANV-L7012R uses electronic ICR—zero mechanical movement, zero maintenance. On a 10-year lifecycle, this single design choice saves labor and parts cost.
• IP66 Housing with Aluminum/Plastic Hybrid: The aluminum dome structure provides rigidity for IK10 impact, while plastic components reduce cost and weight. We've installed these in coastal salt-spray zones (IP66 handles brine mist well) and high-temperature desert environments (-30°C to +55°C operating range covers most continental climates).

Deployment Considerations:

• Fixed 3mm focal length limits recognition range to ~4.4m (14.5ft) on a 250 PPM / 76 PPF Identify standard. On fence-line deployments exceeding 30m, plan for dual-camera overlap or accept that forensic detail will degrade with distance. Test the actual site FOV before final placement.
• 20m IR range is adequate for parking lots and loading-dock perimeters but insufficient for 100m+ open fields without supplementary external IR lighting. The 850nm IR is also visible to thieves (unlike 940nm stealthier IR), which may or may not matter depending on your site's security posture.
• PoE 802.3af draws typical 5.7W at 4MP 30fps H.265. If you add external heater or blower (for condensation control in arctic climates), you'll exceed 802.3af budget—switch to PoE+ (802.3at) or add auxiliary power. Plan this during site survey.
• ONVIF Profile T support is present, but some older VMS platforms (particularly older Milestone and Genetec builds) may not parse H.265 streams natively. Test codec fallback to H.264 in your target VMS before rollout if you're deploying into a mixed-vintage environment.
• The 6-zone privacy masking is rectangular; curved or irregular shapes (like masking a neighbor's window) require manual frame cropping at the application layer. For complex masking requirements, build it into the VMS rather than relying solely on camera-side privacy features.
• MicroSD card endurance is typically 30,000–100,000 write cycles per sector (depending on card brand and class). On 24/7 continuous recording, plan to replace edge storage cards every 2–3 years. Use industrial-grade microSD cards (not consumer-grade) for durability.

The ANV-L7012R is the right spec for integrators and facilities teams building resilient outdoor perimeter systems where both mechanical durability and codec efficiency matter. It's overspecified for light-duty retail or low-vandalism residential use, where cheaper fixed domes suffice. It's underspecified for high-recognition forensic requirements (recognition beyond 25m) unless combined with higher-resolution or longer-focal-length companions on the same system. For standard commercial perimeter surveillance—parking lots, warehouse loading docks, fence lines, and building exteriors—this is a mature, reliable choice. See the Hanwha catalog for related models and complementary network infrastructure.
